Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

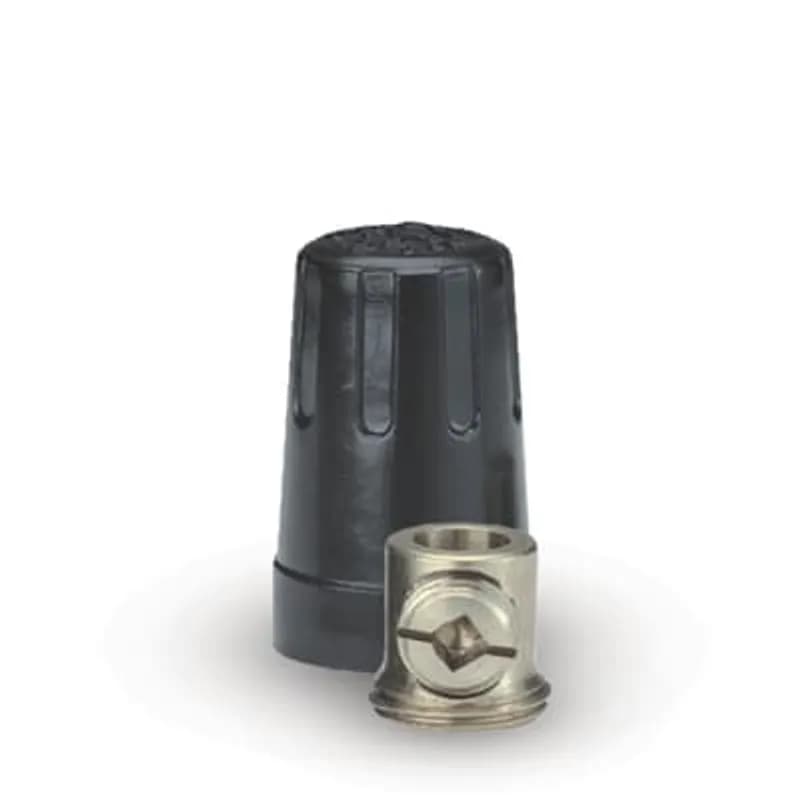

- Anti-vibration set screw design for secure wire termination
- Rated for 150°C and 600 volts for high-temperature applications
- Accommodates wire sizes from 16 to 10 AWG
- Brass barrel with cap and insert combination for durability
- Box of 15 connectors for bulk installation needs
Specifications
Color | Black |
Housing Material | Thermoplastic Polymer |
Mounting | Twist-On |
Standard | UL E9809, CSA 6591 |
Temperature Rating, Maximum | 302 F |
Temperature Rating, Maximum | 150 C |
Temperature Rating, Minimum | 302 F |
Temperature Rating, Minimum | 150 C |
Type | Set-Screw Vibration Proof / Visible Connection |
Voltage Rating | 600 V |
Wire Size | 18-12 AWG |
Package Dimensions (L x W x H) | 1.38 IN x 2.75 IN x 6.38 IN |
Package Dimensions (L x W x H) | 3.5052 cm x 6.985 cm x 16.2052 cm |
Package Weight (Imperial) | 0.3300 L |
Package Weight (Metric) | 0.1500 kg |
1SHP
Small Set Screw, Phenolic Material, Robertson, Wire Range #18-12 AWG, Temperature Rated 150 Degrees C, Black
WWC-B-C
The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â
![Rectangular Power Connectors, Housing, Plug, Wire-to-Panel / Wire-to-Board / Wire-to-Wire, 3 Position, 4.2 mm [.165 in] Centerline, AMP MR](/_next/image?url=https%3A%2F%2Fwww.te.com%2Fcontent%2Fdam%2Fte-com%2Fcatalog%2Fpart%2F016%2F405%2F180%2F1-640518-0-t1.jpg%2Fjcr%3Acontent%2Frenditions%2Fproduct-high-res.png&w=3840&q=75)
1-640518-0
Rectangular Power Connectors, Housing, Plug, Wire-to-Panel / Wire-to-Board / Wire-to-Wire, 3 Position, 4.2 mm [.165 in] Centerline, AMP MR
1SHB
Marrette #1 set screw wire connector. Anti-vibration. Cap and insert combination screw & brass barrel. Rated 150 degrees Celsius - 600 Volts. Wire range: 18-12. Box of 25.
ABW450058SLCSB2120-1
Set Screw Bar Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud Size 5/8 inch, Four Conductor, with Street Light tap, with Drop-On Insulating Boot for Transformer Spade Connector - Length 8 3/4 inches X Width 2 1/2 inches X Height 5 1/5 inches, Color Black
16556
Aluminum Compression Splice. Wire Sizes 556.5 - 600 AA, 556 ACAR. Full Tension Splice. Contains Oxide Inhibiting compound. Purple Caps. Center Stop. 16.000 inches long. 1.438 outside diameter. Bore Depth 7.812 on both sides. Slightly Tapered Bores. Dies U261, 1 5/16-H.
2081-1000
Tin Plated Aluminum Compression Lug for Aluminum and Copper Terminations, Two-Hole Pad 1-3/4 inch Center to Center Spacing, 1000 KCMIL AL-CU, 9/16 inch Diameter Bolt Hole. 7-7/16 inch Overall Length, Pad Width 2-9/16 inch.Frequently Asked Questions
What wire sizes does the 2SHB connector support?
The 2SHB connector supports wire sizes ranging from 16 to 10 AWG.
What is the temperature rating of the 2SHB connector?
The 2SHB connector is rated for 150 degrees Celsius.
What is the voltage rating of the 2SHB connector?
The 2SHB connector is rated for 600 volts.
How many connectors are included in a box of 2SHB?
Each box contains 15 connectors.
What materials are used in the 2SHB connector?
The 2SHB connector features a brass barrel with a cap and insert combination.
Is the 2SHB connector suitable for aluminum to copper connections?
The Marrette line includes connectors for aluminum-to-copper transitions, but verify compatibility with specific applications.
