UPC: 067396008768
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*

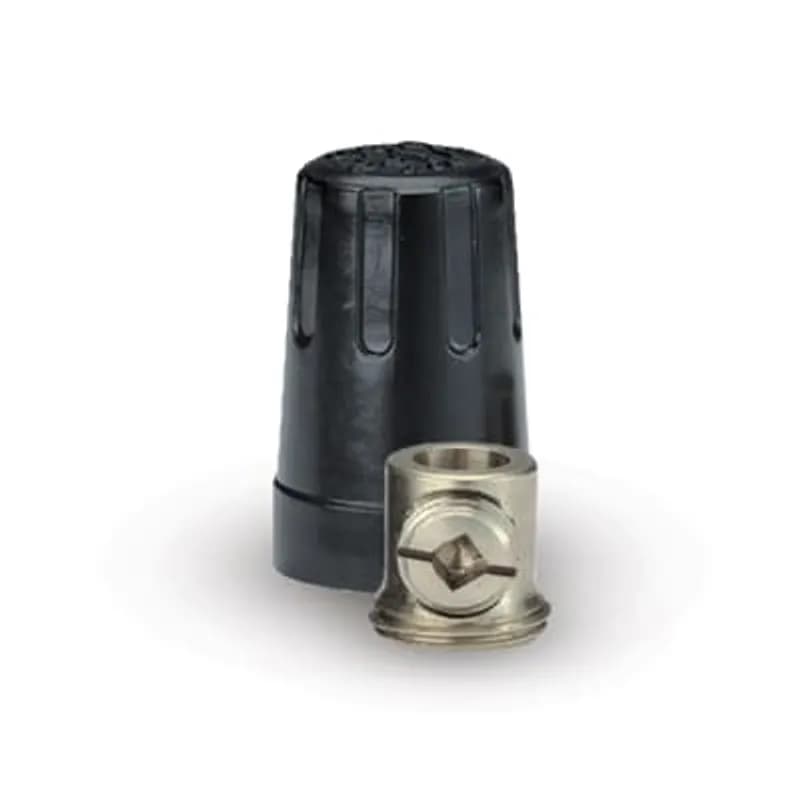

Overview
- Phenolic material construction for durability and temperature resistance.
- Rated for temperatures up to 150 degrees Celsius.
- Accommodates wire sizes from #18 AWG to #12 AWG.
- Set screw design ensures a secure mechanical connection.
- Black color for identification and material indication.
Specifications
Color | Black |
Connection Type | Set Screw |
Material | Phenolic |
Series | Marrette |
Size | #18-12 AWG |
Special Features | External cap made of rugged, phenolic material and 150 degree C rated |
Standard | UL E9809 |
Type | Two-Piece Connectors |
Voltage Rating | 600 V |
Wire Size | 18-12 AWG |
Wire Type | Copper Conductor Only |
Package Dimensions (L x W x H) | 2.5 IN x 3.25 IN x 5 IN |
Package Dimensions (L x W x H) | 6.35 cm x 8.255 cm x 12.7 cm |
Package Weight (Imperial) | 0.0100 L |
Package Weight (Metric) | 0.0050 kg |
1SHB
Marrette #1 set screw wire connector. Anti-vibration. Cap and insert combination screw & brass barrel. Rated 150 degrees Celsius - 600 Volts. Wire range: 18-12. Box of 25.
WWC-B-C
The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â
PV10-10LFB-2K
Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12- 10 AWG wire range, #10 stud size.![Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR](/_next/image?url=https%3A%2F%2Fgross-automation-prod.s3.amazonaws.com%2Fitems%2Fte-connectivity%2Fimages%2F7bc53e4c19b72a9fad97.webp&w=3840&q=75)
1-640520-0
Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR
2SHP
Large Set Screw, Phenolic Material, Robertson, Wire Range #18-10 AWG, Temperature Rated 150 Degrees C, Black
10-501
Crimp sleeve wire connector HI-411. Zinc Plated Steel, Wire Range #18 to #8 AWG Copper. CSA/UL listed. 39/64 inch long x 23/64 inch wide, ID 17/64 inch. 50 PiecesFrequently Asked Questions
Are these connectors UL Listed and CSA Certified?
Yes, these connectors are U.L. Listed (E-17010, 424H) and CSA Certified (LR-6541, LR6591).
What type of screw head does the 1SHP connector use?
The 1SHP connector uses a Robertson set screw for tightening.
What is the maximum voltage rating for these connectors?
These connectors are rated for circuits up to 600V and for lighting fixtures and signs up to 1,000V.
What is the wire range for the 1SHP connector?
The 1SHP connector is designed for a wire range of #18-12, specifically for solid wires.
Are these connectors UL Listed and CSA Certified?
Yes, these connectors are U.L. Listed (E-17010, 424H) and CSA Certified (LR-6541, LR6591).
What type of screw head does the 1SHP connector use?
The 1SHP connector uses a Robertson set screw for tightening.
What is the maximum voltage rating for these connectors?
These connectors are rated for circuits up to 600V and for lighting fixtures and signs up to 1,000V.
What is the wire range for the 1SHP connector?
The 1SHP connector is designed for a wire range of #18-12, specifically for solid wires.
Are these connectors UL Listed and CSA Certified?
Yes, these connectors are U.L. Listed (E-17010, 424H) and CSA Certified (LR-6541, LR6591).
What type of screw head does the 1SHP connector use?
The 1SHP connector uses a Robertson set screw for tightening.
