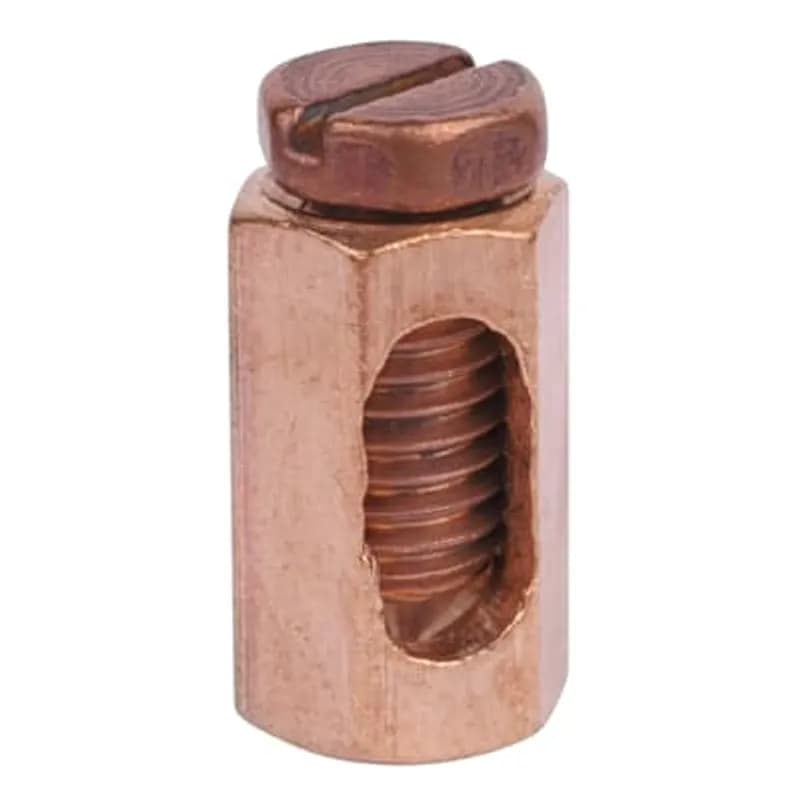

Overview
- Tin-plated copper body for corrosion resistance in outdoor and harsh environments
- Tin-plated phosphor bronze washer ensures even pressure distribution and conductor protection
- Compatible with ACSR conductors (4-8 AWG) and solid to stranded copper conductors (6 AWG to 2 AWG)
- NEMA Type NPW rated for service entrance applications
- Part of ABB’s trusted Installation Products line
Specifications
Application | Service Entrance Connector |
Bolt Size | 3/8 in |
Connection | Mechanical |
Enclosure | None |
Environmental Conditions | All Seasons / Conditions |
Finish | Tinned |
Insulation | None |
Material | Copper Alloy |
Number of Conductors | 2 |
Number Of Mounting Holes | None |
Special Features | Long-lasting Connectors with bodies and Non-Slotted Hex-Head screws made of high-strength copper alloy. Dual-rated for use on ACSR and Copper Conductors. Has Tin Plated Phosphor Bronze Washer to protect the conductor and evenly distribute pressure. Tin Plated to resist corrosion |
Type | Mechanical Service Entrance Connector |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 6.3 IN x 4.3 IN x 6.3 IN |
Package Dimensions (L x W x H) | 16.002 cm x 10.922 cm x 16.002 cm |
Package Weight (Imperial) | 0.0100 L |
Package Weight (Metric) | 0.0050 kg |
PNL-500-2-3
Two-hole, copper, single barrel, straight tongue lug, #4 SOL - 500 kcmil, 3/8 (9.5mm) stud hole.
XT13P
Cross Tap Clamp, Tin Plated, Conductor Range Main 4/0 - 1 Stranded 3/0 - 1 ACSR TAP 4/0 - 1 Stranded 3/0 - 1 ACSR.
4N
Copper Type N - Service Entrance Connector for Wire Range ACSR 6 to 8, Copper 6 Solid to 4 Stranded
K1
Copper Type K - Jumper Clamp for Wire Range Plated Groove #6 - 1/0 ACSR, Copper Groove #8 Solid - 2/0 Stranded, Clamp Plated in one groove.
K3
Copper Type K - Jumper Clamp for Wire Range Min either side #8 Solid copper, 9 1/2 D copper weld, Max either side 2/0 Stranded copper, 7/16 copper weld, 2A copper weld, Clamp Not PlatedFrequently Asked Questions
What conductor sizes does the 2NPW connector support?
The 2NPW supports ACSR conductors from 4 to 8 AWG and solid to stranded copper conductors from 6 AWG to 2 AWG.
What NEMA rating does the 2NPW connector have?
The 2NPW connector is rated Type NPW, meeting NEMA standards for service entrance connectors.
Is the 2NPW connector corrosion-resistant?
Yes, the connector is tin-plated to resist corrosion, making it suitable for outdoor and harsh environments.
Can the 2NPW connector be used for stranded copper conductors?
Yes, the connector supports solid to stranded copper conductors ranging from 6 AWG to 2 AWG.
What is the purpose of the phosphor bronze washer?
The tin-plated phosphor bronze washer evenly distributes pressure to protect the conductor and maintain consistent electrical contact.
