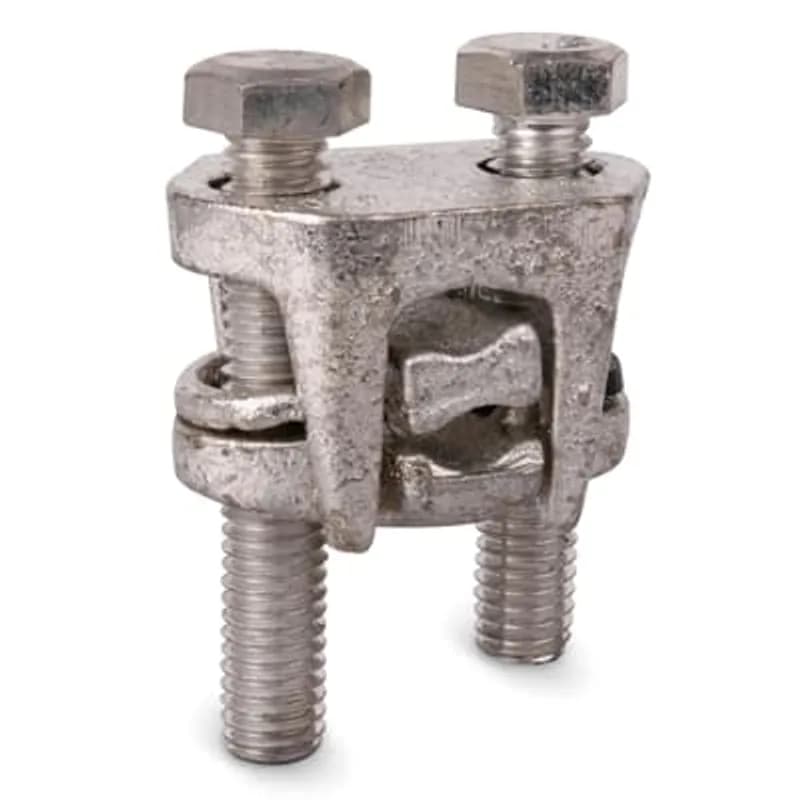

ABB - Installation Products 2B40PW - Aluminum Type 2BPW - Two-Bolt Connector with Spacer for Wire Range Main: 4/0-6 - 4/0-1/0 Tap: 4/0 Str-1/0 Sol. - 4/0 Str.-1/0 Str., Bolt Size 9/16
More images
ABB - Installation Products

2B40PW

UPC: 783786400249

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB 2B40PW is a robust aluminum two-bolt connector designed for reliable electrical connections. Manufactured by ABB Installation Products, this connector (SKU: 2B40PW) is engineered for specific wire ranges, ensuring secure and efficient power distribution. It accommodates a main wire range of 4/0 AWG to 6 AWG, with specific compatibility for 4/0 AWG stranded to 1/0 AWG solid or stranded conductors on the tap side. The integrated spacer facilitates proper wire separation and connection integrity. The connector utilizes a 9/16 inch bolt size, providing a strong mechanical connection. Its aluminum construction offers excellent conductivity and corrosion resistance, making it suitable for various industrial and electrical infrastructure applications where dependable wire termination is paramount. The UNSPSC code for this product is 39121408. This connector is a critical component for building and maintaining electrical systems, offering a straightforward and effective solution for joining conductors within its specified parameters. Its design prioritizes ease of installation while maintaining a secure and lasting electrical pathway. The ABB 2B40PW is a testament to ABB's commitment to providing essential, high-quality electrical connection hardware for professional use.
  • Aluminum construction for conductivity and corrosion resistance
  • Two-bolt design for secure termination
  • Accommodates main wire range: 4/0 AWG - 6 AWG
  • Tap wire range: 4/0 AWG Stranded - 1/0 AWG Solid or Stranded
  • 9/16 inch bolt size for robust connection

Specifications

Bolt Size
9/16 in
Material
Aluminum
Special Features
Single-piece construction
Standard
UL E9809
Type
Two-Bolt Connector
Package Dimensions (L x W x H)
5 IN x 4.37 IN x 6.5 IN
Package Dimensions (L x W x H)
12.7 cm x 11.0998 cm x 16.51 cm
Package Weight (Imperial)
0.4400 L
Package Weight (Metric)
0.2000 kg
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-2

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

PCSB4-3S-12Y

The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
AL 1CNDTR 1HOLE MOUNT 6-350STR TP

ADR35

AL 1CNDTR 1HOLE MOUNT 6-350STR TP
Copper Type 2B - Two-Bolt Connector without Spacer for Wire Range Main: 600 - 800 kcmil Tap: 2 Sol. - 800 kcmil , Bolt Size 3/4

2B800

Copper Type 2B - Two-Bolt Connector without Spacer for Wire Range Main: 600 - 800 kcmil Tap: 2 Sol. - 800 kcmil , Bolt Size 3/4
Copper Type 2BW - Two-Bolt Connector with Spacer for Wire Range Main: 600 - 800 kcmil Tap: 2 Sol. - 800 kcmil , Bolt Size 3/4

2B800W

Copper Type 2BW - Two-Bolt Connector with Spacer for Wire Range Main: 600 - 800 kcmil Tap: 2 Sol. - 800 kcmil , Bolt Size 3/4
Aluminum Type 2BPW - Two-Bolt Connector with Spacer for Wire Range Main: 666.6-2 - 666.6-397.5 Tap: 800-2 Sol. - 800-600, Bolt Size 3/4

2B800PW

Aluminum Type 2BPW - Two-Bolt Connector with Spacer for Wire Range Main: 666.6-2 - 666.6-397.5 Tap: 800-2 Sol. - 800-600, Bolt Size 3/4
Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 14 AWG-10 AWG, Length 1 Inch, Width 5/16 Inch, Height 43/64 Inch, 5/32 Inch Bolt Hole

BTC1014

Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 14 AWG-10 AWG, Length 1 Inch, Width 5/16 Inch, Height 43/64 Inch, 5/32 Inch Bolt Hole
Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 2 Str-1/0 Str, Length 1-25/32 Inches, Width 5/8 Inch, Height 1-13/32 Inches, 17/64 Inch Bolt Hole

BTC1102

Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 2 Str-1/0 Str, Length 1-25/32 Inches, Width 5/8 Inch, Height 1-13/32 Inches, 17/64 Inch Bolt Hole

Frequently Asked Questions

What is the main wire range for the ABB 2B40PW?

The ABB 2B40PW connector is designed to accommodate a main wire range from 4/0 AWG to 6 AWG.

What tap wire sizes are compatible with this connector?

The tap side of the ABB 2B40PW connector is compatible with 4/0 AWG stranded to 1/0 AWG solid or stranded conductors.

What is the bolt size used on the 2B40PW connector?

The ABB 2B40PW connector utilizes a 9/16 inch bolt size for secure fastening.

What material is the ABB 2B40PW connector made from?

The ABB 2B40PW connector is constructed from aluminum, offering good conductivity and corrosion resistance.
