Overview
- 25kV class, 200 Amp continuous and loadbreak rated interface
- Fully rotatable for 360-degree positioning and optimized cable routing
- Includes bail assembly for secure attachment to ANSI bushing wells
- Supports phase-to-ground voltage up to 15.2kV and phase-to-phase up to 26.3kV
- Compatible with sub-surface/pad-mounted transformers, switchgear, and reclosers
Specifications
Application | 25 kV, 200 Amps |
Current Rating | 200 A |
Mounting Type | 360-degree rotatable |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Extended Bushing Insert |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 7.5000 L |
Package Weight (Metric) | 3.4020 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
K1501J4U-8
200 Amp, 15/25kV, Deadbreak Elbow, 4 Point Junction. Bails are required but not included, order separately. Center to Center spacing equals 4 inches.
750S1-200
35kv, 600 Amp, Short 2-15/16 inch Shank Bushing with out Stud, with standard aluminum conductor rod, includes 5/8-11 threaded hole at elbow end, includes shipping cap, 200 BIL
21MA-E
Molded Housing - Grounding Rod Adapter Assembly, Size E - Insulation Diameter Range .530 to .680 inch. includes Silicone Lubricant, Molded Housing, Grounding Rod and Instruction Sheet.Frequently Asked Questions

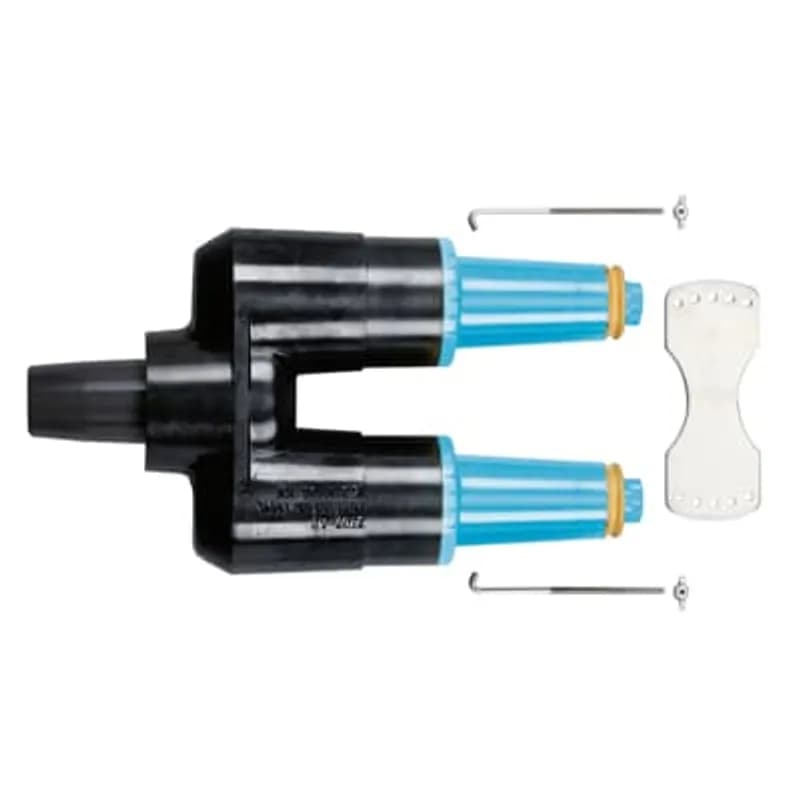

What bushing wells are compatible with the 2702A1 insert?
The 2702A1 insert mates with bushing wells conforming to ANSI Std. 386, Fig. 3. It is easily installed in an ELASTIMOLD universal bushing well.
What is the primary function of the 2702A1 feed-thru insert?
The 2702A1 feed-thru insert creates a tap position in existing apparatus and transforms radial-feed transformers into loop-feed units.
What are the voltage and current ratings of the 2702A1 insert?
The 2702A1 insert is rated for 25kV class and 200 Amp load break.
What items are included with the 2702A1 bushing insert?
The 2702A1 bushing insert includes the insert, two protective shipping caps, a bail assembly, three lubricants, and installation instructions.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage for the 2702A1 is 15.2kV.
What is the impulse withstand rating for the 2702A1?
The impulse withstand rating (BIL) for the 2702A1 is 125kV.
What is the continuous current rating of the 2702A1?
The 2702A1 has a continuous and loadbreak current rating of 200 Amp.
What is the momentary and fault close rating?
The momentary and fault close rating is 10kA Sym for 10 Cycles.
What type of insulation does the 2702A1 use?
The 2702A1 features peroxide-cured insulation and jacket.
What are common applications for the 2702A1 bushing insert?
The 2702A1 can be used as a bushing interface for connecting shielded cable to transformers, generators, switchgear, regulators, and reclosers.
