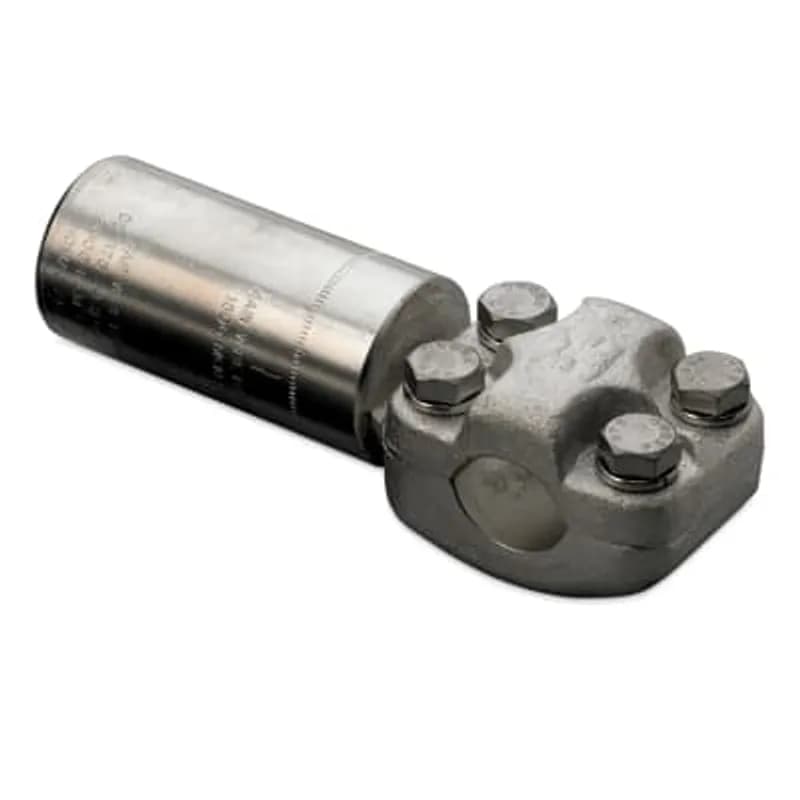

ABB - Installation Products 2131-11 - Copper Tin-Plated Clamp Tee Connector, Main 1000, Tap 500, Four Bolt Clamp Area is 2 inch wide x 2-11/16 inch long with 1-15/16 spacing longways between bolts and 1-1/4 inch sideways between bolts. Clamp has 1-5/32 inch diameter Hole between plate halves. Compression Barrel is 2-1/2 inch long x 1-1/16 inch Diameter with 53/64 inch Diameter Bore. Barrel Dies are TH 87 20 1 for 500 kcmil Copper Wire. Includes (4) Stainless Steel 3/8-16 x 1-1/2 inch full threaded Bolts and (4) Stainless Steel 3/8 inch Lock Washers.

ABB Installation Products 2131-11 Copper Tin-Plated Clamp Tee Connector, Main 1000, Tap 500, Four Bolt Clamp Area is 2…

UPC: 075114125352

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products 2131-11 is a copper tin-plated clamp tee connector designed for robust electrical connections. This connector features a main conductor capacity of 1000 kcmil and a tap conductor capacity of 500 kcmil. The four-bolt clamp area measures 2 inches wide by 2-11/16 inches long, with bolt spacing of 1-15/16 inches longitudinally and 1-1/4 inches laterally. A central 1-5/32 inch diameter hole is positioned between the plate halves for secure conductor gripping. The compression barrel has a length of 2-1/2 inches and a diameter of 1-1/16 inches, with a bore diameter of 53/64 inches. This connector is compatible with TH 87 20 1 barrel dies for 500 kcmil copper wire. It includes four stainless steel 3/8-16 x 1-1/2 inch full threaded bolts and four stainless steel 3/8 inch lock washers for secure assembly. The tin plating provides corrosion resistance, ensuring reliable performance in various industrial environments. This connector is suitable for applications requiring high-capacity power distribution and reliable termination of large gauge copper conductors.
  • Copper tin-plated construction for corrosion resistance
  • Main conductor capacity: 1000 kcmil
  • Tap conductor capacity: 500 kcmil
  • Four-bolt clamp design with specific bolt spacing
  • Includes stainless steel bolts and lock washers

Specifications

Connection
Compression
Finish
Tin Plated
Housing Material
Copper
Insulation
None
Size
5-5/8 inch long x 2-1/16 inch wide
Special Features
Get Permanent Compression on the Tap and be able to Disconnect in the Future
Type
Clamp Tee Connector
Wire Size
Run 1000 kcmil , Tap 500 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
6.4000 L
Package Weight (Metric)
2.9030 kg
Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.

PH10-38R-E

Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.
Service Post Connector - Two Wire Type 4 STR Service Post Connectors is used for connecting one or two conductors. Made from high copper content hard-drawn rod. Lay-in feature makes them excellent for continuous loop grounding and bonding. Used to ground to bar or plate. Suitable for direct burial in earth or concrete.

SPM-24L

Service Post Connector - Two Wire Type 4 STR Service Post Connectors is used for connecting one or two conductors. Made from high copper content hard-drawn rod. Lay-in feature makes them excellent for continuous loop grounding and bonding. Used to ground to bar or plate. Suitable for direct burial in earth or concrete.
Copper Blank Tongue Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #2 AWG, Tin Plated, Die Code 33, Die Color Code Brown

54143BT

Copper Blank Tongue Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #2 AWG, Tin Plated, Die Code 33, Die Color Code Brown
Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 1/0 N) and a Stacking Two-Hole NEMA Lug (ASL 1/0 N) - 1/0 Stranded AL-CU, Bolt Size 1/2 inch, Installing Dies TU, 52, BG, 243, 5/8.

ASL 1/0 NK

Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 1/0 N) and a Stacking Two-Hole NEMA Lug (ASL 1/0 N) - 1/0 Stranded AL-CU, Bolt Size 1/2 inch, Installing Dies TU, 52, BG, 243, 5/8.
Aluminum Two-Hole NEMA Lugs - straight lug, 600 - 700 kcmil AL-CU, Compact 700-795, installing dies 125H, 608, 786. Length 7-5/8 inch. Pad 1-3/4 inch wide x 3-1/2 inch long x 29/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 3-1/16 inch x 1-1/2 inch outside Diameter. Oxide Inhibitor. Purple Cap.

AL 700 N 608

Aluminum Two-Hole NEMA Lugs - straight lug, 600 - 700 kcmil AL-CU, Compact 700-795, installing dies 125H, 608, 786. Length 7-5/8 inch. Pad 1-3/4 inch wide x 3-1/2 inch long x 29/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 3-1/16 inch x 1-1/2 inch outside Diameter. Oxide Inhibitor. Purple Cap.
Copper Two-Hole Straight NEMA Lugs with Peep Hole, wire size 1000 kcmil CU. Installing Die 150. Length 6-5/32 inch. Pad 2-9/16 inch wide x 3-19/64 inch long x 15/64 inch thick. (2) 9/16 inch Holes on 1-3/4 inch center. Barrel 2-5/32 inch long.

L 1500 NPH

Copper Two-Hole Straight NEMA Lugs with Peep Hole, wire size 1000 kcmil CU. Installing Die 150. Length 6-5/32 inch. Pad 2-9/16 inch wide x 3-19/64 inch long x 15/64 inch thick. (2) 9/16 inch Holes on 1-3/4 inch center. Barrel 2-5/32 inch long.
15/25kV, 200 Amp, RLR Contact, Replacement Elbow Connector for Aluminum and Copper Conductors, 250 - for Conductor size 2/0 - Stranded/Compressed, 3/0 Compact/Solid. 11.805 inches long

00400250

15/25kV, 200 Amp, RLR Contact, Replacement Elbow Connector for Aluminum and Copper Conductors, 250 - for Conductor size 2/0 - Stranded/Compressed, 3/0 Compact/Solid. 11.805 inches long
Aluminum Two-Hole Non-Tension Compression Lug - Wire Size 3/0 Stranded-Compressed-Compact. Length 59/32 inch. Pad 1-1/8 inch wide x 3-1/8 inch long x 9/32 inch thick. (2) Holes 9/16 inch Diameter on 1-3/4 inch Center. Barrel 1-15/32 inch long. Oxide Inhibitor with Black Cap. Dies CSA24, 702, 298. Dual Rated for Aluminum and Copper Conductors

GLE 3/0 N

Aluminum Two-Hole Non-Tension Compression Lug - Wire Size 3/0 Stranded-Compressed-Compact. Length 59/32 inch. Pad 1-1/8 inch wide x 3-1/8 inch long x 9/32 inch thick. (2) Holes 9/16 inch Diameter on 1-3/4 inch Center. Barrel 1-15/32 inch long. Oxide Inhibitor with Black Cap. Dies CSA24, 702, 298. Dual Rated for Aluminum and Copper Conductors

Frequently Asked Questions

What is the main conductor size for this tee connector?

The main conductor capacity for the ABB 2131-11 tee connector is 1000 kcmil.

What is the tap conductor size for this ABB connector?

The tap conductor capacity for the ABB 2131-11 is 500 kcmil.

What are the dimensions of the clamp area?

The clamp area is 2 inches wide by 2-11/16 inches long.

What type of wire is compatible with the barrel dies?

The barrel dies are TH 87 20 1 for 500 kcmil copper wire.

What hardware is included with this connector?

It includes four stainless steel 3/8-16 x 1-1/2 inch full threaded bolts and four stainless steel 3/8 inch lock washers.
