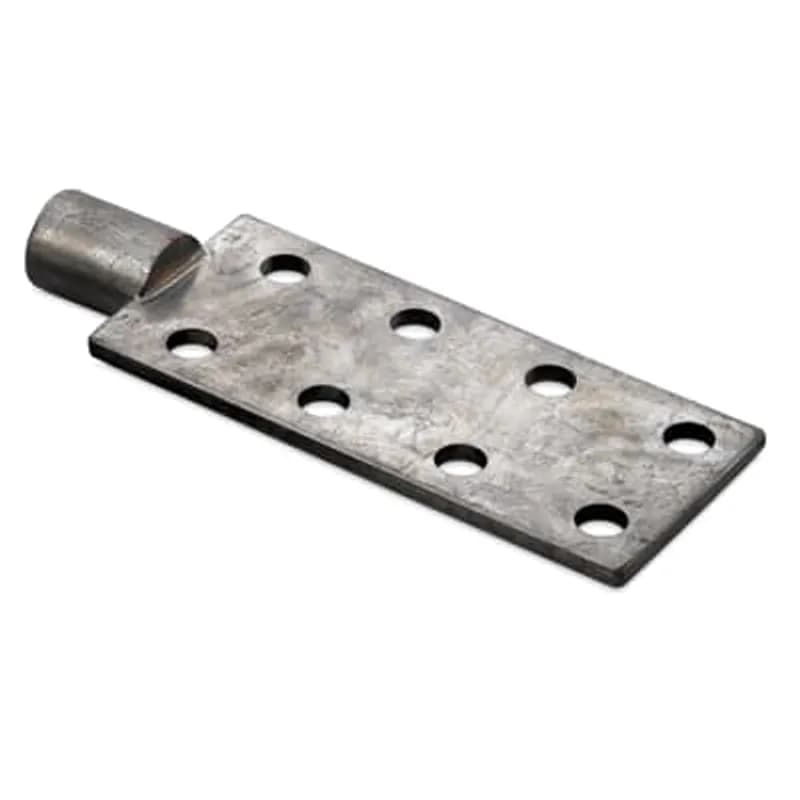

ABB - Installation Products 2042-10 - Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - eight-hole transformer stud adapters, Silver Brazed Stud - Size 1 1/4-12 UNF-2B with 1.5 inch Outside Diameter. Pad 6.875 inch long x 3 inch wide x .25 inch thick. 2 rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter.

ABB Installation Products 2042-10 Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections…

UPC: 783786763559


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 30

Multiplier: 30

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2042-10 is a robust, copper tin-plated threaded transformer stud adapter designed for NEMA pad-style connections. This adapter features an eight-hole NEMA pad configuration, facilitating secure and reliable connections for transformer applications. The pad measures 6.875 inches in length, 3 inches in width, and has a thickness of 0.25 inches, providing a stable mounting surface. Engineered with precision, the adapter boasts two rows of four holes, each spaced 1.75 inches on center. The individual hole diameter is 0.562 inches, ensuring compatibility with standard hardware. The central threaded stud conforms to a 1 1/4-12 UNF-2B size, offering a strong mechanical connection. The silver brazed stud construction enhances the integrity and longevity of the connection, crucial for high-current transformer environments. This adapter is ideal for utility and industrial transformer installations where reliable pad mounting is required. Its copper tin-plated construction offers excellent conductivity and corrosion resistance, vital for maintaining connection integrity over time. The SKU 2042-10 from ABB Installation Products ensures adherence to established manufacturing standards. Key Specifications: - Manufacturer: ABB - Installation Products - SKU: 2042-10 - Material: Copper Tin-Plated - Pad Dimensions: 6.875" L x 3" W x 0.25" T - Hole Configuration: 8-Hole NEMA Pad (2 rows of 4) - Hole Spacing: 1.75" on center - Hole Diameter: 0.562" - Threaded Stud Size: 1 1/4-12 UNF-2B - Connection Type: Threaded - Mounting Type: Pad Mounted - Series: 2042 This adapter is a critical component for ensuring safe and efficient electrical connections in transformer substations and industrial power distribution systems.
  • Copper Tin-Plated construction for enhanced conductivity and corrosion resistance.
  • Eight-hole NEMA pad configuration (2 rows of 4) for secure transformer connections.
  • Pad dimensions: 6.875" L x 3" W x 0.25" T.
  • Threaded stud size: 1 1/4-12 UNF-2B with silver brazed construction.
  • Hole spacing: 1.75" on center, 0.562" diameter for reliable mounting.

Specifications

Application
NEMA Pad-Style Connections
Connection
Threaded
Finish
Tin Plated
Insulation
False
Material
Copper
Size
Pad 6.875 inch long x 3 inch wide x .25 inch thick
Special Features
NEMA Spacing of 1.75 inch Centers
Type
Threaded Transformer Adapter - Stud to Flat
Width
3 in
Width
76.2 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.9300 L
Package Weight (Metric)
0.8750 kg
