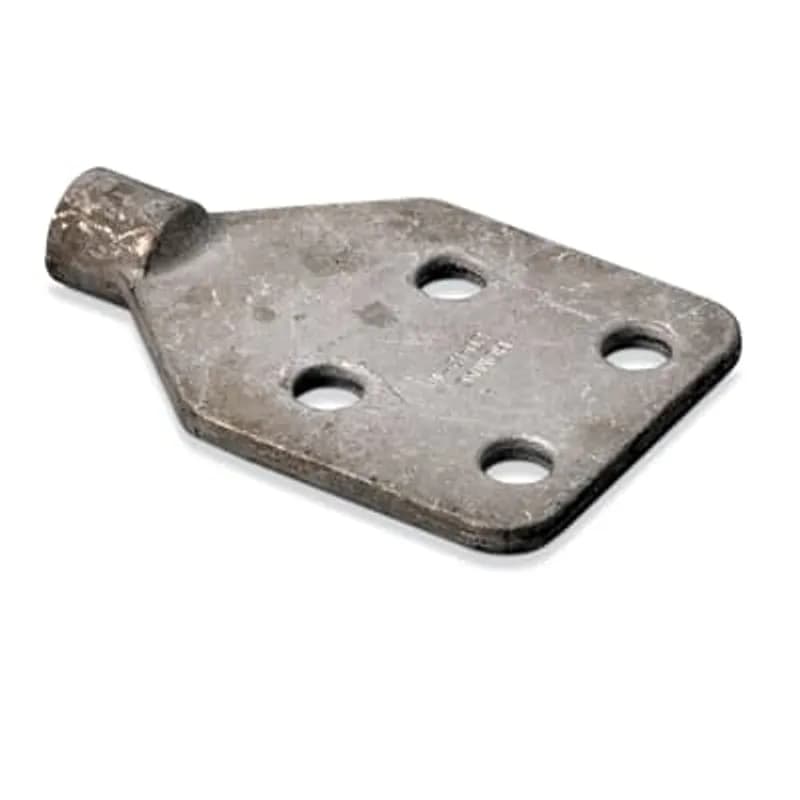

ABB - Installation Products 2042-2 - Tin Plated Bronze Threaded Transformer Spade, 1 inch Stud Tapped 1-14 UNS-2B to 4 Hole NEMA Pad, Bolt 1/2 inch, Bolt Holes 9/16 inch, 3.5 inch wide x 4 inch x 1/4 inch thick Pad.

ABB Installation Products 2042-2 Tin Plated Bronze Threaded Transformer Spade, 1 inch Stud Tapped 1-14 UNS-2B to 4 Hole…

UPC: 783786763580

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Installation Products Tin Plated Bronze Threaded Transformer Spade, SKU 2042-2, is designed for robust electrical connections in transformer applications. The spade features a 1-inch stud tapped to 1-14 UNS-2B, providing a secure and reliable interface for connecting conductors. It is equipped with a 4-hole NEMA pad, ensuring compatibility with standard mounting configurations. The pad measures 3.5 inches wide by 4 inches long and has a thickness of 1/4 inch, offering substantial surface area for stable mounting. The bolt holes are 9/16 inch in diameter, accommodating standard 1/2 inch bolts for secure fastening. Constructed from tin-plated bronze, this component offers excellent conductivity and corrosion resistance, crucial for maintaining electrical integrity in demanding environments. The material choice and plating ensure longevity and performance in transformer installations. The UNSPSC code for this product is 39121443. This transformer spade is a direct-fit solution for applications requiring a secure, high-quality connection point on transformer terminals.
  • Tin Plated Bronze construction for conductivity and corrosion resistance
  • 1 inch Stud tapped to 1-14 UNS-2B for secure conductor attachment
  • 4-Hole NEMA Pad (3.5" W x 4" L x 1/4" T) for standard mounting
  • Bolt holes accommodate 1/2 inch bolts, with 9/16 inch diameter
  • Manufacturer: ABB - Installation Products, SKU: 2042-2

Specifications

Application
NEMA Pad-Style Connections
Connection
Threaded
Finish
Tin Plated
Insulation
False
Material
Bronze
Size
3.5 inch wide x 4 inch Pad
Special Features
NEMA Spacing of 1.75 inch Centers. 1 inch Stud, Stamped as 2042-18
Type
Threaded Transformer Adapter - Stud to Flat
Width
3.5 in
Width
88.9 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.3000 L
Package Weight (Metric)
0.5900 kg
Tin Plated Bronze Threaded Transformer Spade, 1 inch Stud Tapped 1-14 UNS-2B to 4 Hole NEMA Pad, Bolt 1/2 inch, 3.5 inch wide x 4 inch x 1/4 inch thick Pad. Bolt Holes 9/16 inch

2042-18

Tin Plated Bronze Threaded Transformer Spade, 1 inch Stud Tapped 1-14 UNS-2B to 4 Hole NEMA Pad, Bolt 1/2 inch, 3.5 inch wide x 4 inch x 1/4 inch thick Pad. Bolt Holes 9/16 inch
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 1/0-750, length 6-1/2 in, mounting holes 8, outlets 4

ABT 4750

Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 1/0-750, length 6-1/2 in, mounting holes 8, outlets 4
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-14 inch, boot no. SB 11, stud size 1, outlets 6

ABS 6350-1

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-14 inch, boot no. SB 11, stud size 1, outlets 6
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 9-1/4 inch, boot no. SB 14, stud size 5/8, outlets 8

ABS 8350

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 9-1/4 inch, boot no. SB 14, stud size 5/8, outlets 8
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 5-13/16 inch, Uses boot no. SB 17, stud size 1, outlets 4

ABS 4500

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 5-13/16 inch, Uses boot no. SB 17, stud size 1, outlets 4
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 7-13/16 inch, boot no. SB 2157d size 1, outlets 6

ABS 6500

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 7-13/16 inch, boot no. SB 2157d size 1, outlets 6
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 1/0-750, length 4-3/4 in, mounting holes 6, outlets 3

ABT 3750

Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 1/0-750, length 4-3/4 in, mounting holes 6, outlets 3
Aluminum Lay-In Transformer Spade Connectors - ZBK Series, conductor range 1/0-1000, mount holes 6, outlets 6, length 5.312 inches

ZBK 3031

Aluminum Lay-In Transformer Spade Connectors - ZBK Series, conductor range 1/0-1000, mount holes 6, outlets 6, length 5.312 inches
