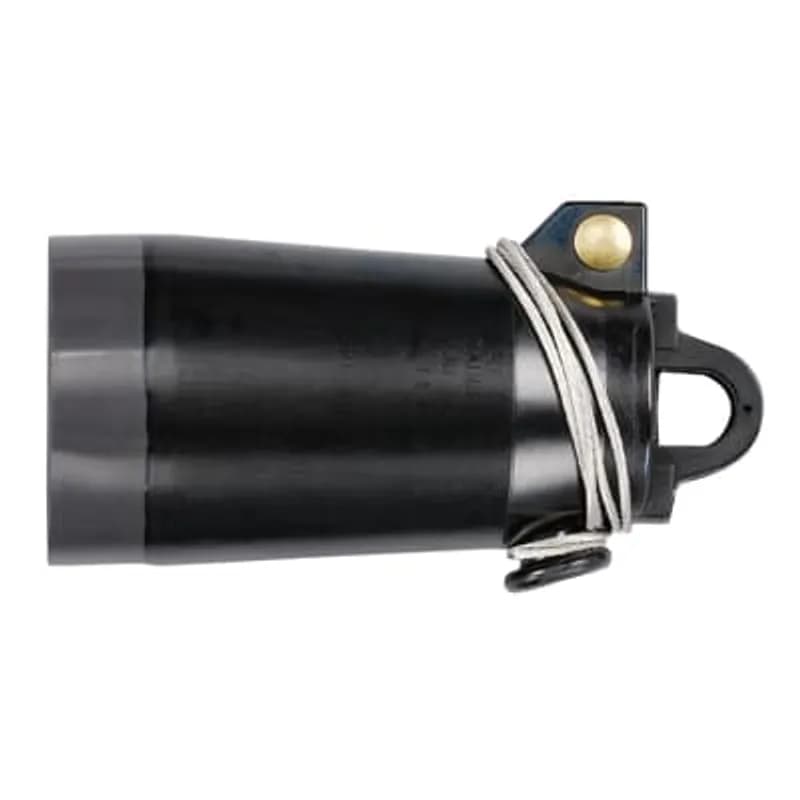

ABB Installation Products 167DRG(3) 200 Amp, 15kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Ground Lead…
UPC: 783786297375
Contact for Pricing
Minimum Qty: 30
Multiplier: 30
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Voltage Rating: 15 kV for medium-voltage applications
- Current Rating: 200 A for high-current systems
- Insulated Cuff: Enhances safety during installation and maintenance
- Ground Lead Length: 38 inches for flexible grounding configurations
- Color: Black for durability and UV resistance
- Manufacturer: ABB - Installation Products
- SKU: 167DRG(3) for easy identification
Specifications
Application | 15 kV, 200 Amps |
Color | Black |
Current Rating | 200 A |
Material | Insulated |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Cap with Ground |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2700 L |
Package Weight (Metric) | 0.5760 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
600-G2-2
Grounding Kit, includes Constant Force Spring, Copper Foil Tape, Copper Braid, Butyl Auto Tape, Grounding Rod and Connector Strip Assembly200-28-1
15/25/35 kV, Copper Foil Tape - Cut, Carries Very Low Current. 6 inch Length, 0.375 inch Wide, 0.0026 inch Thick. Pressure Sensitive Conductive Acrylic Adhesive Tape with Backing.Frequently Asked Questions
What is the 167DRG insulated cap designed for?
The 167DRG insulated cap is a fully shielded, submersible, hot stick operable separable connector designed for energized operation on 15kV class loadbreak systems.
What material is the 167DRG cap constructed from?
The 167DRG insulated cap is constructed from molded EPDM Rubber.
What is the DC 15-minute withstand rating?
The DC 15-minute withstand rating for the 167DRG is 53kV.
What is the AC one-minute withstand rating?
The AC one-minute withstand rating for the 167DRG is 34kV.
What is the BIL impulse withstand rating?
The BIL impulse withstand rating for the 167DRG is 95kV (1.2 x 50 microsecond wave).
Is a version of the 167DRG available without a probe?
Yes, the 167DRG is available without a probe. To order this version, specify 167DRGA.
What items are included in the 167DRG kit?
Each 167DRG kit contains one insulated cap 167DRG, one lubricant 82-08, and one installation instruction IS-0892.
What is the ground lead wire specification?
The 167DRG has an attached ground lead wire, which is #14 AWG.
What standard does the 167DRG insulated cap meet?
The 167DRG insulated cap meets ANSI/IEEE Standard 386, Latest Revision.
What Elastimold products are compatible with the 167DRG?
The 167DRG is used to dead-end Elastimold mating products such as the 1601A4 bushing insert, 164FT feed thru, 1602A3R feed-thru insert, and 164 series junctions.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides instructions for the safe installation of the ELASTIMOLD 160DRG(3) and 167DRG(3) insulated caps, designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces.
Estimated time: 15m
Tools needed:
Eight-foot long, fully insulated hotstick type tool
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- Connect Grounding Wire
DANGER: All apparatus must be de-energized during installation. Connect the free end of the electrostatic grounding wire to the system ground. Ensure enough slack for hot-stick operation and train the wire so it does not contact the bushing interface during operation.
- Prepare Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute other lubricants, as they may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime.
- Install Insulated Cap
Firmly attach an eight-foot long, fully insulated hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
