ABB - Installation Products 375DRGA(3) - 200 Amp, 35kV, Insulated Cap with Ground, Equipped with Insulated Cuff.
More images

ABB Installation Products 375DRGA(3) 200 Amp, 35kV, Insulated Cap with Ground, Equipped with Insulated Cuff.

UPC: 783786311408


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

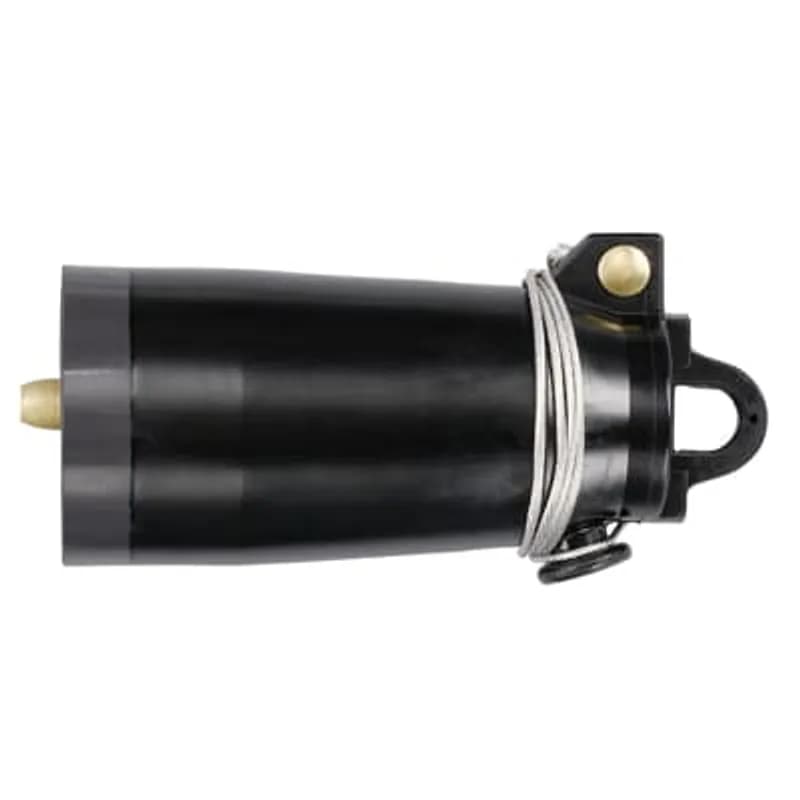

The ABB 375DRGA(3) is a 35kV, 200 Amp loadbreak insulated cap designed for high-voltage electrical distribution systems. This fully shielded, fully submersible connector is engineered for energized operation on 1Ø and 3Ø 35kV class systems, meeting ANSI/IEEE Standard 386 requirements. The unit features a molded EPDM rubber construction with an integral #14 AWG ground lead and insulated cuff for enhanced safety during installation and maintenance. It includes a brass probe for hotstick operation and is rated for continuous and loadbreak duty at 200 Amps, with a 10kA symmetrical momentary and fault close rating. The 375DRGA(3) provides 150kV BIL impulse withstand, 50kV AC one-minute withstand, and 26kV AC corona extinction at 3pC sensitivity. Compatible with Elastimold mating products such as 3701A3/A4 bushing inserts, 373FT feed thru, and 373 series junctions, this component ensures reliable dead-ending and grounding in utility and industrial environments. Each kit includes the insulated cap, lubricant (82-08), and installation instructions (IS-0894).
  • 35kV, 200 Amp Loadbreak Rated
  • Molded EPDM Rubber Construction
  • Integral #14 AWG Ground Lead
  • Insulated Cuff for Enhanced Safety
  • Fully Shielded and Submersible

Specifications

Application
35
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Insulated Cap with Ground
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.5000 L
Package Weight (Metric)
0.6800 kg
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.

150-TB-2

15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
HMI door mounting kit with 15M cable

181B2258

HMI door mounting kit with 15M cable
Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V

103350-4

Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V
Grounding Kit, includes Constant Force Spring, Copper Foil Tape, Copper Braid, Butyl Auto Tape, Grounding Rod and Connector Strip Assembly

600-G2-2

Grounding Kit, includes Constant Force Spring, Copper Foil Tape, Copper Braid, Butyl Auto Tape, Grounding Rod and Connector Strip Assembly
15/25/35 kV, Copper Foil Tape - Cut, Carries Very Low Current. 6 inch Length, 0.375 inch Wide, 0.0026 inch Thick. Pressure Sensitive Conductive Acrylic Adhesive Tape with Backing.

200-28-1

15/25/35 kV, Copper Foil Tape - Cut, Carries Very Low Current. 6 inch Length, 0.375 inch Wide, 0.0026 inch Thick. Pressure Sensitive Conductive Acrylic Adhesive Tape with Backing.
Shield Plate, J3, 304 Stainless Steel, 12 inch x 3.5 inch x 16 Gage thick. No Holes.

650-278-2

Shield Plate, J3, 304 Stainless Steel, 12 inch x 3.5 inch x 16 Gage thick. No Holes.
Base Plate, 600 Amp Junctions, 15 inch x 6-3/4 inch x 5/8 inch thick with notched corners. 304 Stainless Steel. Two Rows of Three Slots 1 inch x 9/16 inch on 6 inch x 5-1/2 inch Centers.

600-403-1

Base Plate, 600 Amp Junctions, 15 inch x 6-3/4 inch x 5/8 inch thick with notched corners. 304 Stainless Steel. Two Rows of Three Slots 1 inch x 9/16 inch on 6 inch x 5-1/2 inch Centers.
Grounding Rod Adapter Assembly, Size N - Insulation Diameter Range 1.515 to 1.780 inch. includes Silicone Lubricant, Molded Housing, Grounding Rod and Instruction Sheet.

21MA-N

Grounding Rod Adapter Assembly, Size N - Insulation Diameter Range 1.515 to 1.780 inch. includes Silicone Lubricant, Molded Housing, Grounding Rod and Instruction Sheet.

Frequently Asked Questions

What is the current rating of the ABB 375DRGA(3) insulated cap?

The ABB 375DRGA(3) insulated cap has a current rating of 200 Amps.

What is the maximum voltage this insulated cap can handle?

This insulated cap is rated for 35kV, making it suitable for high-voltage applications.

Does the 375DRGA(3) include a ground connection?

Yes, the 375DRGA(3) is equipped with an integrated ground connection.

What is the purpose of the insulated cuff on this cap?

The insulated cuff provides an additional layer of protection, enhancing safety during installation and operation.

Who is the manufacturer of the 375DRGA(3) insulated cap?

The 375DRGA(3) insulated cap is manufactured by ABB - Installation Products.

How to Install the 273/375DRG(3) Insulated Cap with Ground Lead

This guide provides step-by-step instructions for installing the 273DRG(3) or 375DRG(3) insulated cap, designed for insulating, shielding, and watersealing ELASTIMOLD loadbreak bushing interfaces. Ensure all apparatus are de-energized before installation.

Estimated time: 20m

Tools needed:

Hotstick

Supplies needed:

273/375DRG(3) Insulated Cap with Ground Lead, Lubricant

  1. Connect Electrostatic Grounding Wire

    Connect the free end of the electrostatic grounding wire to the system ground, leaving enough slack for hot-stick operation of the insulated cap. CAUTION: The electrostatic grounding wire should be trained so as not to contact the bushing interface during operation.

  2. Prepare Insulated Cap for Installation

    Remove the protective cover from the insulated cap and lubricate the cap’s internal mating surface. Use only the supplied lubricant or ELASTIMOLD approved lubricants; DO NOT SUBSTITUTE. Other lubricants may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.

  3. Attach Insulated Cap to Loadbreak Bushing

    Firmly attach a hotstick to the insulated cap pulling eye (a minimum hotstick length of 8 ft. is recommended). Insert the male contact of the insulated cap into the loadbreak bushing, and push home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
