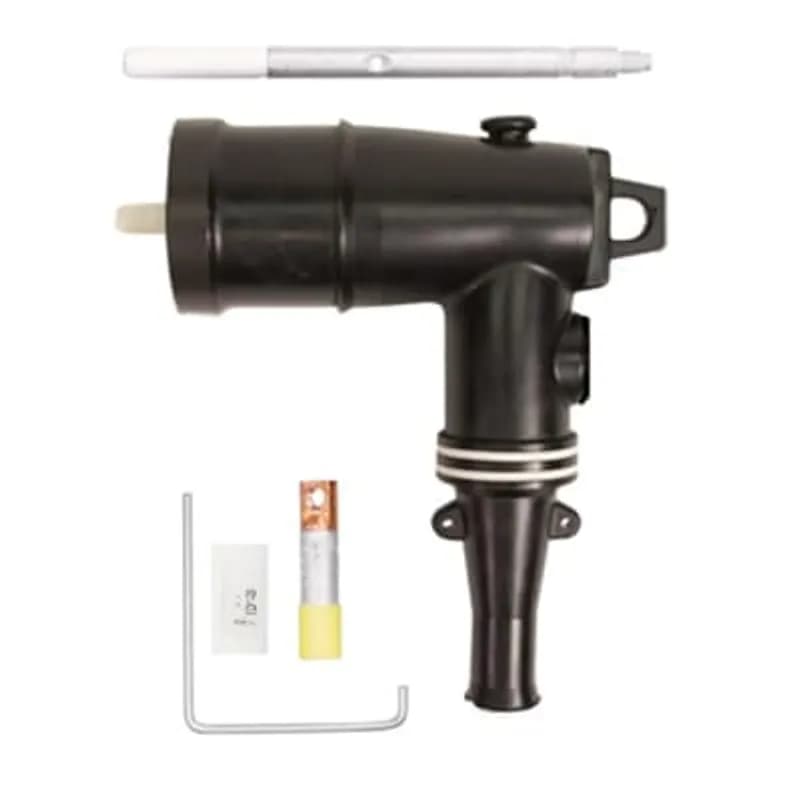

ABB Installation Products 161LR-C5270-S 15kV, 200 Amp Loadbreak Elbow Connector without Test Point. Cable Insulation Diameter…
UPC: 075114348959
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV, 200 Amp loadbreak elbow connector for power distribution
- Cold-shrinkable jacket seal (S) for environmental protection
- Bi-metal conductor compatible with 270-4/0 AWG stranded/compressed or 250 kcmil solid/compact copper/aluminum
- Cable insulation diameter range: 0.805 to 1.060 inches
- Compact dimensions: 9.03 in length, 7.44 in width, 2.92 in diameter (excluding probe)
Specifications
Amperage Rating | 200 A |
Application | The 161LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Sealing kit |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
162LR-C5270-S
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS Jacket Seal Included.
K655LRTP-G0220-DRG
600 Amp, 25kV, Stick-Op Connector Kit with Insulated Cap. Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG or kcmil, Compressed Stranded #2/Compacted Solid #1/mmSquared Compact 35.
676LRTP-K2330-DRG
900 Amp, 15kV Stickop Connector Kit With Test Point, No Sealing Kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed Stranded 500 kcmil or Compacted Solid 600 kcmil or mmSquared Compact 250/300 kcmil. Copper Conductor Only.
K656LRTP-LM0270DRG-S
600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, Cable Insulation Diameter 1.280 inch to 1.430 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.
655LRTP-G0230-DRG
600 Amp, 15kV, Deadbreak Stick-Op Connector Kit, With Insulated Cap. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #1 /Compacted Solid 1/0 /mmSquared Compact 70.K655LRTPN0410DRG
600 Amp, 25kV, Stick-Op Connector Kit. Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap.
656LRTP-J0320
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compacted Solid 500656LRTP-F0240
15kV, 600 Amp, Stick Op Connector Kit with Test Point, Cable Insulation .640-.820 inches. Aluminum Connector Type. Connector Size 1/0 Stranded/Compressed or 2/0 Compact/Solid. No Seal.Frequently Asked Questions
Is the product ANSI certified?
Yes, the enhanced Elastimold elbow has ANSI certification.
What IEEE standard does the elbow comply with?
The enhanced Elastimold elbow is IEEE 386 compliant.
Does the elbow have a no-stick interface?
Yes, it features a no-stick interface when used with Elastimold bushings, which is NEETRAC tested.
Does the product have RUS acceptance?
Yes, it has Rural Utilities Service (RUS) acceptance from the USDA, authorizing its use in rural infrastructure.
What is the product type and voltage rating?
The product is an enhanced Elastimold 200 amp loadbreak elbow, available in 15 kV and 25 kV series.
What is the product type and voltage rating?
The product is an enhanced Elastimold 200 amp loadbreak elbow, available in 15 kV and 25 kV series.
Does the product have RUS acceptance?
Yes, it has Rural Utilities Service (RUS) acceptance from the USDA, authorizing its use in rural infrastructure.
Does the elbow have a no-stick interface?
Yes, it features a no-stick interface when used with Elastimold bushings, which is NEETRAC tested.
What IEEE standard does the elbow comply with?
The enhanced Elastimold elbow is IEEE 386 compliant.
Is the product ANSI certified?
Yes, the enhanced Elastimold elbow has ANSI certification.
How to Install Elastimold 161LR/162LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 161LR and 162LR Loadbreak Elbow Connectors, including initial checks, cable preparation, elbow assembly, grounding, and final connection to a de-energized bushing.
Estimated time: 1h 30m
Tools needed:
Probe Wrench, Wire brush, Crimp tool (refer to lug instructions), Wire strippers, Cable knife, Hotstick tool, Cleaning cloths/wipes
Supplies needed:
161LR or 162LR Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied with kit, do not substitute), Copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate connector for neutral wires, Cold shrink tube (if using sealing kit), Conductive copper tape (if using 200ECS-G2/G3 kit), Vinyl tape (if applicable for cable type)
- Perform Initial Checks and Prepare Cable for Training
DANGER: All apparatus must be de-energized during installation or removal of part(s). Inspect all package contents and components (Elbow Connector Housing, Compression Lug, Probe, Lubricant) for completeness, damage, and compatibility. Thread the probe into the compression lug by hand to check for resistance. Train the cable to ensure sufficient slack for operation. Depending on your cable type (non-jacketed, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), follow the specific instructions in the product manual for managing neutral/drain wires, removing the outer jacket, and preparing the cable end at the bushing centerline. If using a cold shrink sealing kit, slide the cold shrink tube onto the cable at this stage.
- Prepare Cable Conductor and Insulation
Remove 2-1/8 inches (55mm) of the shield and insulation from the cable end, ensuring a square cut without nicking the conductor. Wire brush bare aluminum conductors thoroughly. Immediately install the compression lug, rotating it to spread inhibitor. Align the lug's threaded hole with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe off any excess inhibitor. Remove the insulation shield 6-7/8 inches (175mm) from the cable end, ensuring a straight, smooth, and squared cut. Bevel the insulation end a maximum of 1/8 inch (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off any excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the probe wrench until the wrench bends, indicating proper torque.
- Ground the Elbow Connector
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. If the elbow came pre-ordered with a ground wire, skip this step. For concentric neutral cables, twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. If using a cold shrink grounding kit, follow its specific instructions.
- Connect Elbow to Bushing
DANGER: CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Using a full insulated hotstick tool, remove the insulated cap from the bushing. Securely fasten the hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion, applying sufficient force to engage the internal lock on the elbow connector and bushing interface. Do not operate by hand.
