ABB - Installation Products 15611X - 15 Ton Full Size Hex Flex Die for Crimping Flex Conductors, Die Color Green, Die Code 94X. High Grade Tool Steel with Black Oxide Finish. Use with Hydraulic Tools TBM151 and BPLT15BSCR.

ABB Installation Products 15611X 15 Ton Full Size Hex Flex Die for Crimping Flex Conductors, Die Color Green, Die Code…

UPC: 786209988911

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

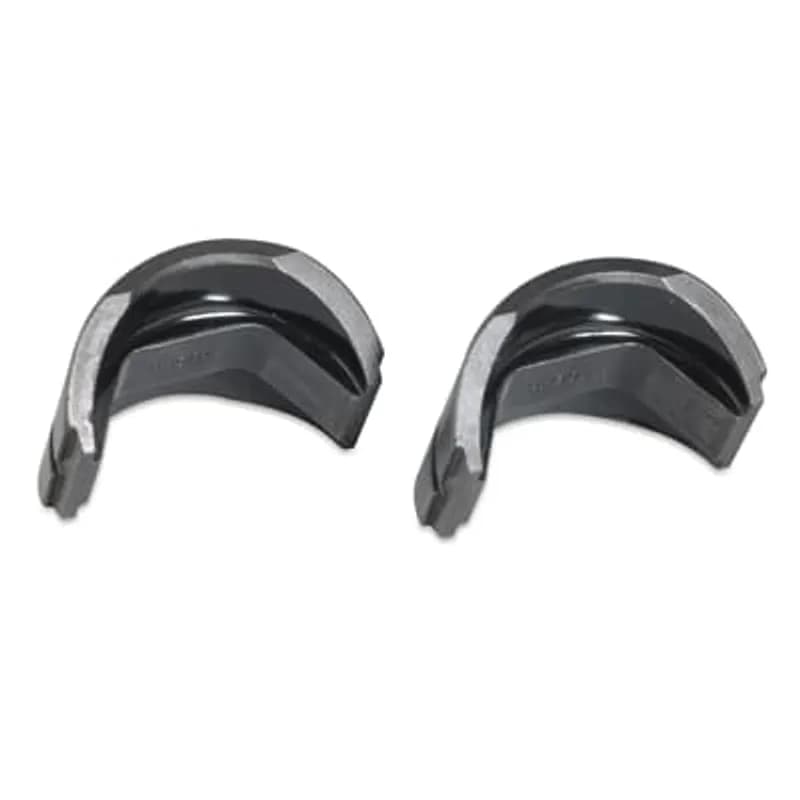

The ABB 15 Ton Full Size Hex Flex Die, SKU 15611X, is a critical component for reliable crimping of flex conductors. Manufactured by ABB - Installation Products, this die is engineered for use with ABB hydraulic tools TBM151 and BPLT15BSCR, ensuring precise compatibility and optimal crimping force. Constructed from high-grade tool steel with a black oxide finish, it provides exceptional durability and resistance to corrosion, extending its operational lifespan in demanding industrial environments. This specific die features a green color coding, corresponding to Die Code 94X, facilitating quick identification and selection for the correct conductor size and type. It is designed for crimping 500 FLEX 1100/24 class conductors. The full-size hex configuration ensures a consistent and secure crimp, vital for maintaining electrical integrity and mechanical strength in power distribution and industrial applications. With a 15-ton crimping capacity, this die is capable of handling substantial forces required for larger gauge flex conductors. The die dimensions are A=1.454 inches, B=0.576 inches, W=0.437 inches, and G=0.536 inches. As part of the 15600 series, this die half is designed to be used with a corresponding 15600X indentor to form a complete die set. Refer to connector sales drawings for UL listed applications. This die is sold separately as a die half.
  • Designed for crimping 500 FLEX 1100/24 class conductors.
  • Constructed from high-grade tool steel with a durable black oxide finish.
  • Features green color coding for Die Code 94X, ensuring easy identification.
  • Optimized full-size hex configuration for secure and consistent crimps.
  • Compatible with ABB hydraulic tools TBM151 and BPLT15BSCR.

Specifications

Capacity
12 to 14 ton
Color
Green
Material
Steel
Type
Die
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4900 L
Package Weight (Metric)
0.2220 kg
