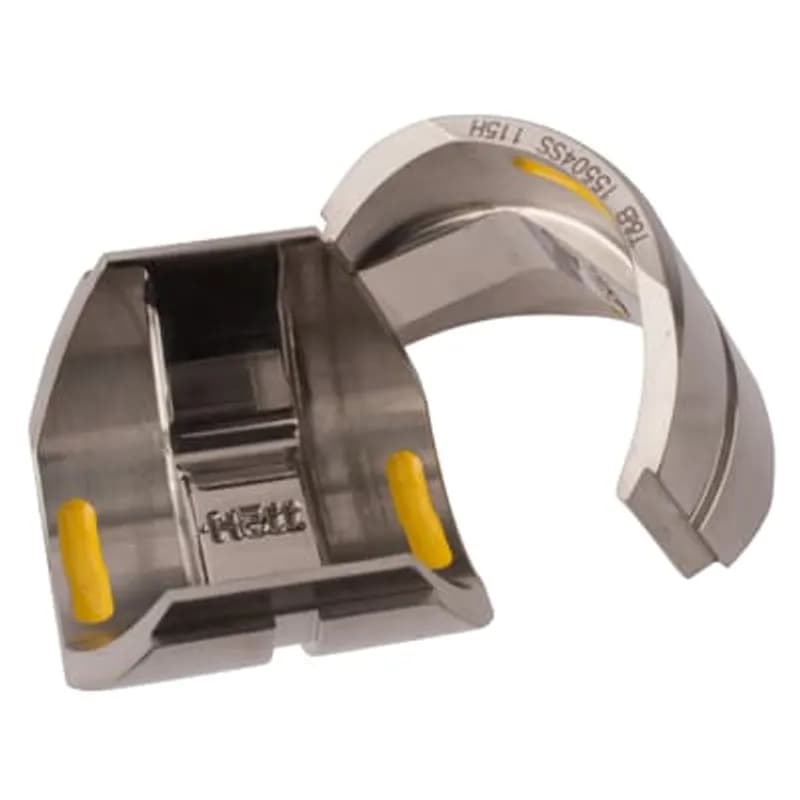

ABB - Installation Products 15504SS - Die for 12-14 Ton Tools for 900 kcmil CU, 750 kcmil Al, Die Color Yellow, Die Code 115H
More images
ABB - Installation Products

15504SS

UPC: 786209883926

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

ABB Installation Products 15504SS die is a precision-forged tooling component designed for medium-duty crimping operations on copper and aluminum conductors. This die supports 900 kcmil copper and 750 kcmil aluminum cable sizes, making it suitable for power distribution, substation, and industrial wiring applications where high-current terminations are required. The die features a distinctive yellow color for quick identification in tool kits and inventory systems. It is compatible with 12-14 ton hydraulic or mechanical crimping tools, ensuring consistent joint integrity when used with ABB’s installation accessories. The 115H die code corresponds to a specific compression profile that matches ABB’s crimp connector lineup, guaranteeing proper conductor deformation and electrical continuity. This die is part of ABB’s Installation Products line, a trusted brand in electrical infrastructure solutions. Use this die for terminating large cross-section conductors in switchgear, motor control centers, and renewable energy systems where reliable, low-resistance connections are critical.
  • Fits 12-14 ton crimping tools for medium-duty applications
  • Supports 900 kcmil copper and 750 kcmil aluminum conductors
  • Yellow die color for quick identification in tool kits
  • Die code 115H ensures compatibility with ABB crimp connectors
  • Precision-forged for consistent, low-resistance terminations

Specifications

Application
Crimping Lugs/C-Taps
Color
Yellow
Material
Alloy Steel
Series
115H
Size
900 kcmil CU, 750 kcmil Al
Special Features
Color-coded for easy matching
Type
Die
Package Dimensions (L x W x H)
1.9 IN x 1.9 IN x 1.6 IN
Package Dimensions (L x W x H)
4.826 cm x 4.826 cm x 4.064 cm
Package Weight (Imperial)
0.2600 L
Package Weight (Metric)
0.1180 kg
