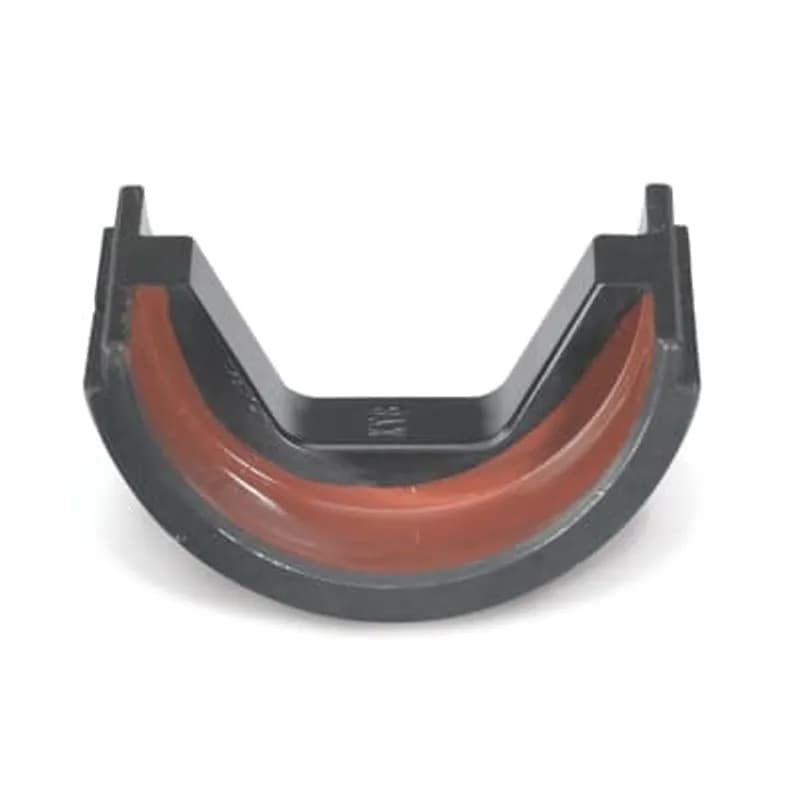

ABB - Installation Products 15514XSS - 12-14 Ton Stainless Steel Full Hex Die for Set - 300 kcmil Copper Code, Flex/24 775/24 (short), AL/CU 250 kcmil, Die Color Red, Die Code 71X, Must Be Used with 15500XSS Indentor Die
ABB - Installation Products

15514XSS

UPC: 786209883476

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB 15514XSS is a 12-14 ton stainless steel full hex die, designed for specific electrical termination applications. This die, identified by its red color and code 71X, is engineered for use with the 15500XSS indentor die, forming a critical part of a crimping system. It is specified for terminating 300 kcmil Copper Code conductors, as well as Flex/24 775/24 (short) and AL/CU 250 kcmil conductors. The stainless steel construction ensures durability and resistance in industrial settings. This die is a precise component for creating secure and reliable electrical connections, essential for maintaining system integrity. Key specifications include: * **Type:** Full Hex Die * **Ton Size:** 12-14 Ton * **Material:** Stainless Steel * **Color Code:** Red * **Die Code:** 71X * **Compatible Indentor Die:** 15500XSS * **Conductor Compatibility:** 300 kcmil Copper Code, Flex/24 775/24 (short), AL/CU 250 kcmil This die is a specialized tool for electrical contractors and maintenance professionals requiring precise crimping for specific conductor sizes and types. Its robust build and precise specifications contribute to the longevity and safety of electrical installations.
  • 12-14 Ton Stainless Steel Full Hex Die
  • Compatible with 15500XSS Indentor Die
  • Suitable for 300 kcmil Copper Code conductors
  • Accommodates Flex/24 775/24 (short) and AL/CU 250 kcmil
  • Die Color: Red, Die Code: 71X

Specifications

Capacity
12 to 14 ton
Color
Red
Material
Stainless Steel
Series
15500XSS
Size
12-14 Ton
Type
Die
Package Dimensions (L x W x H)
1.9 IN x 1.9 IN x 1.6 IN
Package Dimensions (L x W x H)
4.826 cm x 4.826 cm x 4.064 cm
Package Weight (Imperial)
0.2100 L
Package Weight (Metric)
0.0950 kg
