ABB - Installation Products 151-SH2346-15 - Pre-Fabricated, Single Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and Box to Stud Bracket, For Use with Conduit
ABB - Installation Products

151-SH2346-15

UPC: 785991046830

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB 151-SH2346-15 is a pre-fabricated, single-gang outlet box constructed from durable galvanized steel. This 4-inch square box measures 1-1/2 inches deep and offers a 21 cubic inch internal volume, suitable for various electrical wiring applications. It features 1/2-inch and 3/4-inch eccentric knockouts for flexible conduit entry points, simplifying installation. The box includes a 1-inch raised box cover for a clean finish and a 10-1/2-inch #12 AWG solid ground wire pigtail for proper electrical grounding. A box-to-stud bracket is provided for simplified mounting. Designed for use with conduit in commercial and industrial settings, this outlet box ensures reliable electrical connections. The galvanized steel construction provides corrosion resistance, while the included grounding wire and bracket reduce installation time and complexity.
  • 21 cubic inches internal volume for ample wiring space
  • 4" square x 1-1/2" deep galvanized steel construction
  • 1/2" and 3/4" eccentric knockouts for flexible conduit entry
  • Includes 1" raised box cover and #12 AWG grounding pigtail
  • Box-to-stud bracket for simplified mounting

Specifications

Application
For use with the conduits
Cable Entry
Knockouts
Color
Gray
Color
Galvanized Steel
Connection Type
Conduit
Cubic Capacity
21 cu in
Cubic Capacity
21 in3
Cubic Capacity
344129.1 mm3
Depth
1-1/2 in
Knockouts
True
Material
Steel
Material
Galvanized Steel
Mounting
Bracket
Mounting Type
Conduit with Box to Stud Bracket
Mounting Type
Conduit
Mounting Type
Box to Stud Bracket
Number Of Outlet
1
Series
151-SH2346-15
Series
151-SH
Series
151-SH2346
Size
4 Inch Square x 1-1/2 Inch Deep, 21 Cubic Inches
Size
4 inch Square x 1-1/2 inch Deep (21 cubic inches)
Size
4 Inches Length x 4 Inches Width x 1-1/2 Inches Depth
Type
eFab
Width
4 in
Width
101.6000 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.100 L
Package Weight (Metric)
0.499 kg
Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Galvanized Steel, DPT-DV Bracket and 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

52151DV12P

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Galvanized Steel, DPT-DV Bracket and 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit
Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and 18 Inch Vertical Mounting Bracket, For Use with Conduit

151-SV18-17

Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and 18 Inch Vertical Mounting Bracket, For Use with Conduit
Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, SV Bracket Mounted Flush, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

52151V1234P

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, SV Bracket Mounted Flush, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit
Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Knockouts, Pre-Galvanized Steel, with Grounding Bump and 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

521511234GBP

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Knockouts, Pre-Galvanized Steel, with Grounding Bump and 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

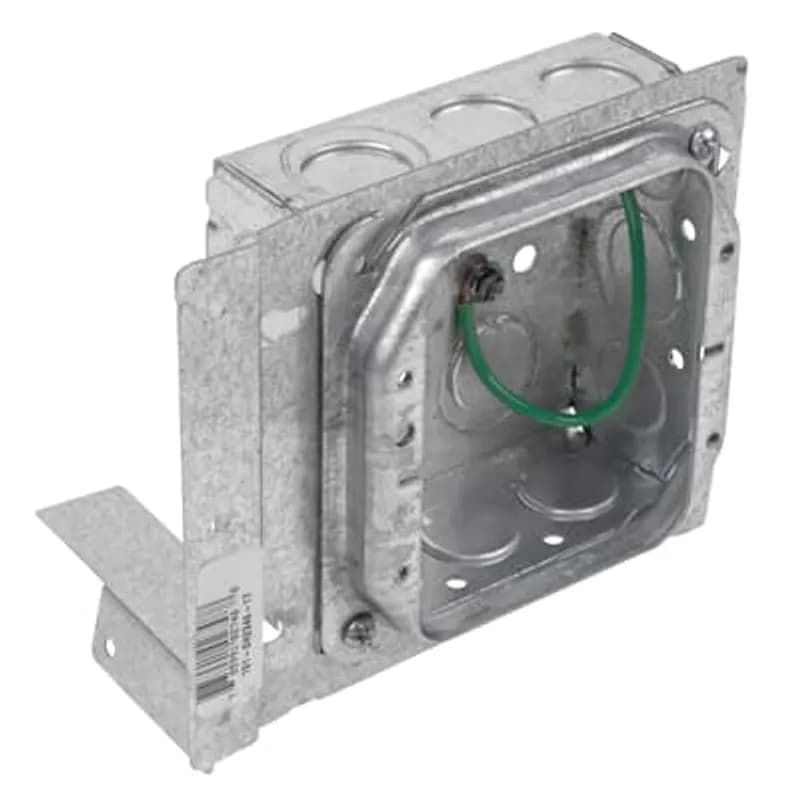

Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and Box to Stud Bracket, For Use with Conduit

151-SH2346-17

Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 1/2 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and Box to Stud Bracket, For Use with Conduit
