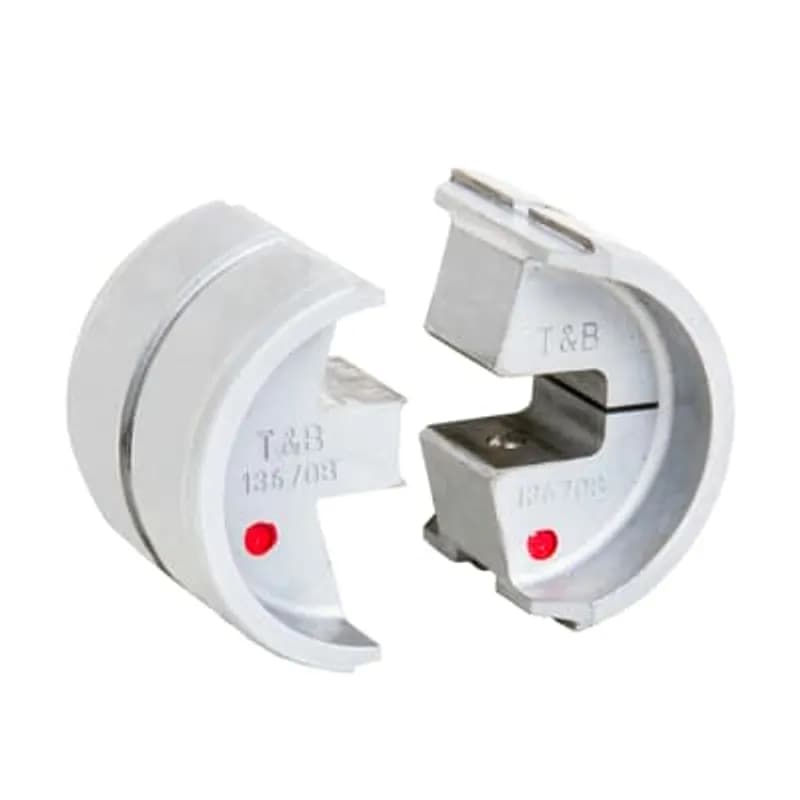

ABB - Installation Products 13670B - Die for 14 Ton 13100A or 15 Ton TBM15i Hydraulic Tool for Crimping 2102 Series Dragon Tooth Terminals

ABB Installation Products 13670B Die for 14 Ton 13100A or 15 Ton TBM15i Hydraulic Tool for Crimping 2102 Series Dragon…

UPC: 786210816531


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB Installation Products 13670B die is precision-engineered for high-force hydraulic crimping. Compatible with 14-ton ABB 13100A or 15-ton TBM15i hydraulic crimping tools. Designed for 2102 Series Dragon Tooth terminals. Hardened steel construction ensures consistent crimp geometry for electrical integrity and mechanical strength in high-current applications (utility, industrial, renewable energy). Precision-ground to terminal profile, reducing improper crimp risks. Direct OEM replacement, eliminating aftermarket alternatives that may compromise quality. Ideal for field service and maintenance crews requiring reliable crimps in harsh environments. Compact design enables easy storage and quick tool changes. Supports 2102 Series terminals with wire sizes from 6 AWG to 750 kcmil. ABB ensures durable performance meeting modern electrical system demands.
  • Designed for ABB 13100A (14-ton) and TBM15i (15-ton) hydraulic crimping tools
  • Compatible with 2102 Series Dragon Tooth terminals
  • Precision-ground hardened steel construction for consistent crimp geometry
  • Supports wire sizes from 6 AWG to 750 kcmil
  • Direct OEM replacement for reliable performance in industrial and utility applications

Specifications

Application
Crimping Dragon Tooth terminal for magnet wire
Color
Silver
Material
Alloy Steel
Type
Die
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.6000 L
Package Weight (Metric)
0.2720 kg

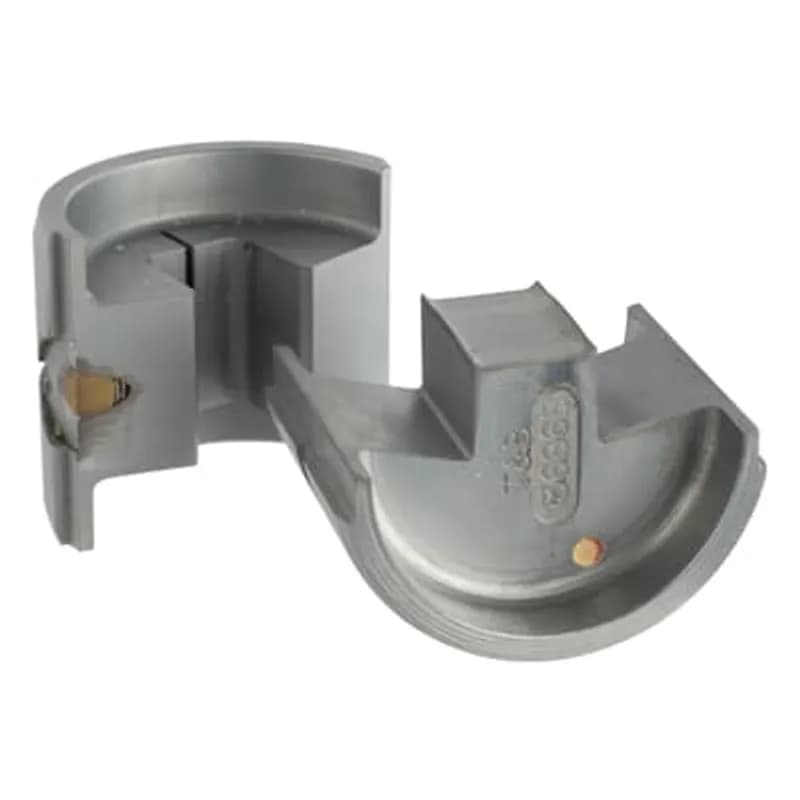

Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 210214MT Dragon Tooth Terminals
