Overview
- 90-degree angle design for efficient routing in confined spaces
- UL Listed as liquidtight fitting and grounding means per NEC 351-9
- Duraplated finish for enhanced corrosion resistance in demanding environments
- Suitable for hazardous locations: Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
- Package includes 25 pieces for cost-effective multiple connection points
- Insulated Conduit Joint for Added Safety
- Packaged in 25 Pieces
Specifications
Material | Malleable Iron - Insulated |
Size | 1/2 Inch |
Special Features | Dura-Plate Finish |
Standard | CSA, UL |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 8 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 20.32 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.2700 L |
Package Weight (Metric) | 0.1230 kg |
040-5362

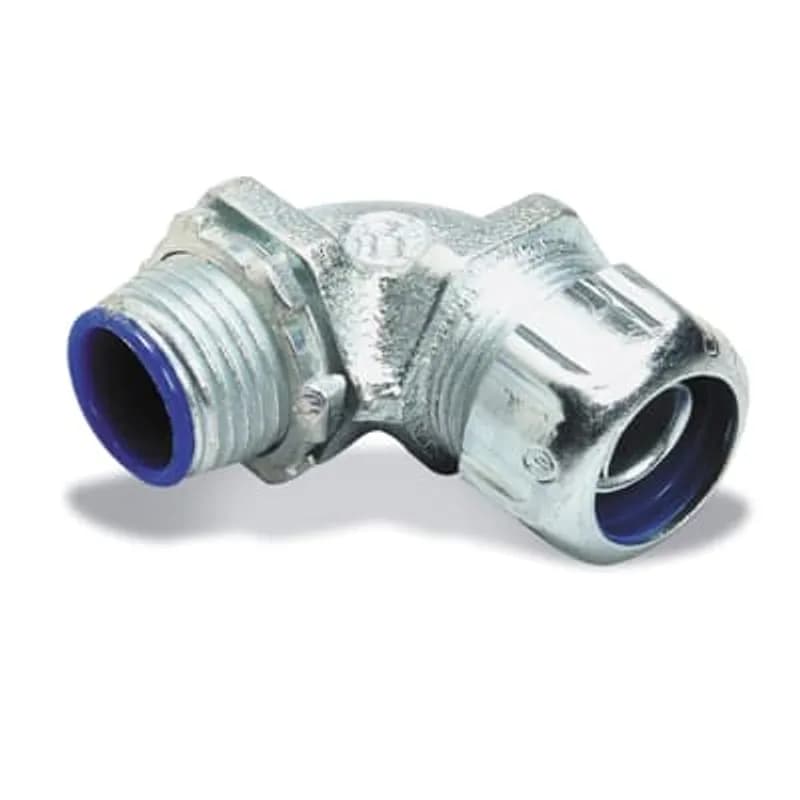

1/2 Inch Liquidtight Flexible Metal Conduit Connector, Insulated, Duraplate Finish, UL Listed Liquidtight, UL Listed As Gounding Means Under NEC 351.9.040-5372
1/2 Inch Liquidtight Flexible Metal Conduit Connector, 90 Degree Angle, Insulated, CSA Certified Water Tight, UL Listed Liquidtight, UL Listed As Grounding Means Under NEC 351-9040-5363
3/4 Inch Liquidtight Flexible Metal Conduit Connector, Insulated, Duraplate Finish, UL Listed Liquidtight, UL Listed As Gounding Means Under NEC 351.9.
3744-TB
1-1/4 Inch 90 Degree Malleable Iron Type A Liquidtight Connector With Insulated Throat and Iron Retainer3745
1-1/2 Inch Malleable Iron Type A to 90 Degree Liquidtight Connector With Insulated Throat and Sealing Ring With Iron RetainerFrequently Asked Questions
What size conduit does the 040-5352 connector fit?
The ABB 040-5352 is designed for 1/2 inch flexible metal conduit.
Is this ABB connector UL Listed?
Yes, the ABB 040-5352 is UL Listed as a liquidtight fitting and also as a grounding means.
What is the angle of this liquidtight connector?
This liquidtight connector features a 90-degree angle.
Does the 040-5352 meet National Electrical Code requirements?
Yes, this connector is listed under NEC 351-9 for grounding continuity.
What is the finish on the ABB 040-5352 connector?
The connector has a Duraplated finish, which provides enhanced durability and corrosion resistance.
How many connectors are included in a package?
Each package of the ABB 040-5352 contains 25 pieces.
How to Install T&B 040-5352 Liquidtight Flexible Metallic Conduit Connectors
This guide provides step-by-step instructions for the proper installation of T&B liquidtight flexible metallic conduit connectors, ensuring high performance and reliability for electrical applications.
Estimated time: 15m
Tools needed:
Hacksaw, Metal jig (optional), Power band saw (optional), Smooth jaw wrench, Safety glasses, Work gloves
Supplies needed:
Liquidtight flexible metallic conduit, T&B 040-5352 liquidtight connector, T&B 140 series locknut (for knockout applications, purchased separately), T&B 5260 series sealing gasket (for knockout applications, purchased separately), PVC cement (if using PVC coated connectors and gouging occurs)
- Prioritize Safety
Before beginning installation, read and understand all instructions and safety information. Disconnect all power to prevent risk of shock. This product must be installed by a qualified electrician in accordance with national and local electrical codes. Always wear hand protection and eye protection during installation.
- Prepare the Flexible Conduit
Cut the liquidtight flexible metallic conduit with a clean, square end. Use a metal jig, a sharp hacksaw with 32 teeth/inch, or a power band saw (24-32 teeth/inch, not more than 400 feet/minute) for best results. Do not use an abrasive wheel for cutting the conduit.
- Assemble the Connector Components
For 5000, 7000, and 9000 series connectors (including 040-5352), slide the gland nut onto the conduit, followed by the nylon sealing ring. Then, thread the Safe Edge™ Cone onto the conduit end. For PVC coated connectors, use the same assembly method.
- Install Connector into Knockout (if applicable)
If installing into a knockout box, position the connector body through the knockout. For standard applications, ensure the 'O' ring is correctly positioned on the outside of the box. Secure the connector to the box wall using a T&B 140 series locknut and a 5260 series sealing gasket (purchased separately). Note that for 7000 and 9000 series, the locknut must be ordered separately.
- Tighten the Gland Nut
Tighten the gland nut onto the connector body to secure the conduit. Refer to the torque table for the recommended tightening torque based on the fitting's trade size: 3/8" (200 lb.-in.), 1/2" (300 lb.-in.), 3/4" (500 lb.-in.), 1" (700 lb.-in.), 1 1/4" (1000 lb.-in.), 1 1/2" (1200 lb.-in.), 2" (1600 lb.-in.), 2 1/2" (1600 lb.-in.), 3" (1600 lb.-in.), 3 1/2" (1600 lb.-in.), 4" (1600 lb.-in.). For PVC coated connectors, use a smooth jaw wrench to avoid gouging; if gouging occurs exposing metal, PVC cement is recommended.
