ABB Installation Products 040-5342 Liquidtight Connector, Insulated Conduit Joint, 1/2 Inch Flexible, Metal Conduit…
UPC: 786210837741
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview

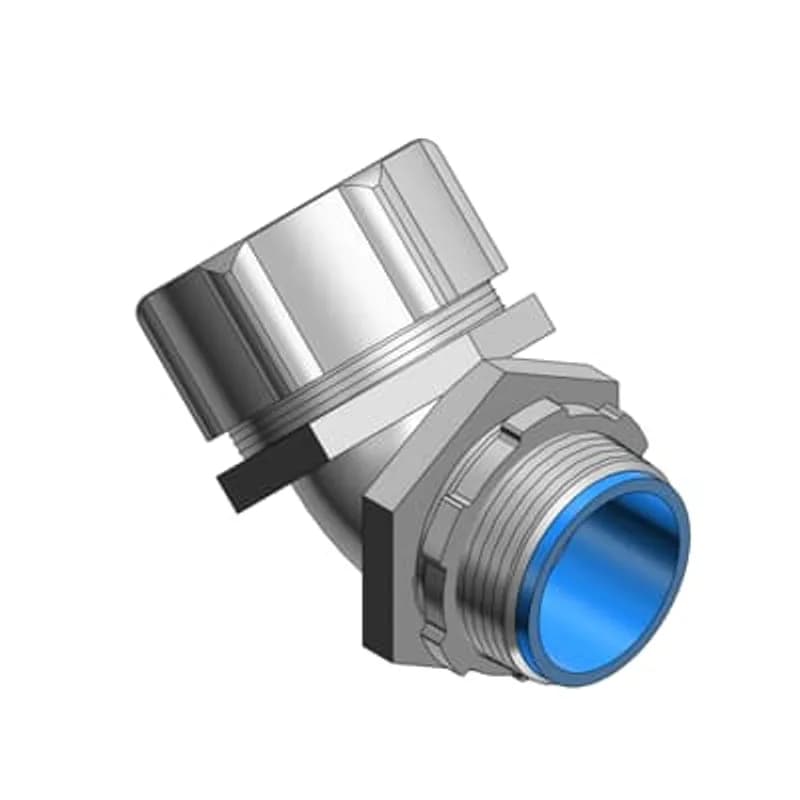

- 1/2 inch trade size for flexible metal conduit
- 45-degree angle design for efficient routing in tight spaces
- Insulated nylon body with Duraplated finish for corrosion resistance
- UL Listed as liquidtight fitting and grounding means per NEC 351-9
- Includes black nitrile O-ring, nylon locknut, and 80°C temperature rating
- Sold in packages of 25 pieces for bulk installations
Specifications
Material | Malleable Iron - Insulated |
Size | 1/2 Inch |
Special Features | Dura-Plate Finish |
Standard | CSA, UL |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 8 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 20.32 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.3200 L |
Package Weight (Metric) | 0.1450 kg |
040-5334
Liquidtight Connector, Straight, Insulated, 1 Inch Flexible, Metal Conduit Connector, CSA Certified Watertight, UL Listed Liquidtight, UL Listed As Grounding Means, Under NEC, Duraplated, 10 Pieces
040-5352
Liquidtight Connector, Insulated Conduit Joint, 1/2 Inch Flexible, Metal Conduit Connector, 90 Degree Angle, UL Listed Liquidtight, UL Listed As Grounding Means, Under NEC 351-9, Duraplated, 25 Pieces
040-5362
1/2 Inch Liquidtight Flexible Metal Conduit Connector, Insulated, Duraplate Finish, UL Listed Liquidtight, UL Listed As Gounding Means Under NEC 351.9.040-5372
1/2 Inch Liquidtight Flexible Metal Conduit Connector, 90 Degree Angle, Insulated, CSA Certified Water Tight, UL Listed Liquidtight, UL Listed As Grounding Means Under NEC 351-9Frequently Asked Questions
What type of conduit does the 040-5342 connector fit?
The ABB 040-5342 is designed for 1/2 inch flexible metal conduit.
Is this liquidtight connector UL listed?
Yes, the 040-5342 is UL Listed as a liquidtight fitting and also UL Listed as a grounding means.
Does the 040-5342 meet NEC requirements?
Yes, this connector is listed under NEC 351-9, ensuring proper grounding continuity.
What is the angle of this conduit connector?
The ABB 040-5342 features a 45-degree angle, which aids in routing and installation.
What is the finish on the 040-5342 connector?
This connector has a Duraplated finish, providing enhanced durability and corrosion resistance.
How many connectors are included in a package?
The 040-5342 is sold in a package containing 25 pieces.
How to Install T&B Liquidtight Flexible Metallic Conduit Connectors
This guide provides instructions for the proper installation of T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability in accordance with national and local electrical codes.
Estimated time: 30m
Tools needed:
Metal jig, Hacksaw, Power band saw, Smooth jaw wrench, Hand protection, Eye protection
Supplies needed:
Liquidtight flexible metallic conduit, T&B liquidtight connector (gland nut, nylon sealing ring, Safe Edge™ Cone, body, locknut), T&B 140 series locknuts (optional, for knockout applications), T&B 5260 series sealing gaskets (optional, for knockout applications), PVC cement (optional)
- Disconnect Power and Prepare Conduit
WARNING: Disconnect all power before beginning installation to prevent risk of shock. Wear appropriate hand and eye protection. CAUTION: Product should be installed by a qualified electrician. Cut the flexible conduit with a clean, square end using a metal jig, a 32 Tooth/ln. hacksaw, or a 24-32 Tooth/ln. power band saw (not more than 400'/minute). Do not use an abrasive wheel.
- Assemble Connector Components
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, first slide the gland nut onto the conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone onto the conduit. For PVC coated connectors, tighten components using a smooth jaw wrench; if gouging occurs exposing metal, apply PVC cement.
- Install Connector into Knockout Box
Insert the connector body into the knockout box. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets, which are purchased separately. For 7000 and 9000 series, order the locknut separately. Ensure any captive 'O' ring (e.g., 5371 series) is correctly positioned on the outside of the box.
- Secure the Connector with Proper Torque
Tighten the locknut to the connector body to secure the connection. Refer to the torque table for the correct tightening torque based on the trade size of the fitting: 3/8" (200 lb.-in.), 1/2" (300 lb.-in.), 3/4" (500 lb.-in.), 1" (700 lb.-in.), 1 1/4" (1000 lb.-in.), 1 1/2" (1200 lb.-in.), 2" (1600 lb.-in.), 2 1/2" (1600 lb.-in.), 3" (1600 lb.-in.), 3 1/2" (1600 lb.-in.), 4" (1600 lb.-in.).
