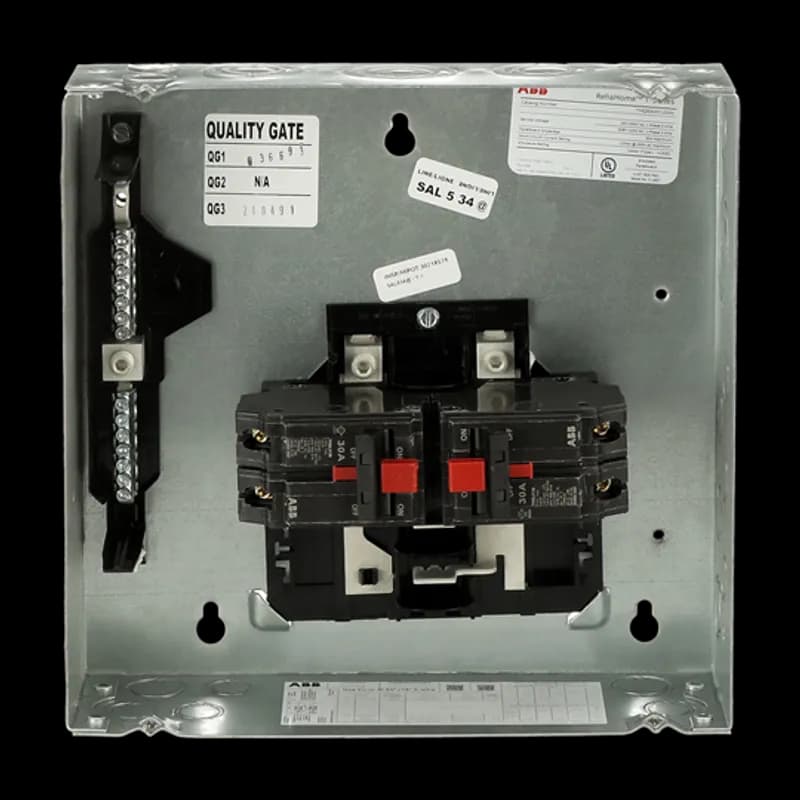

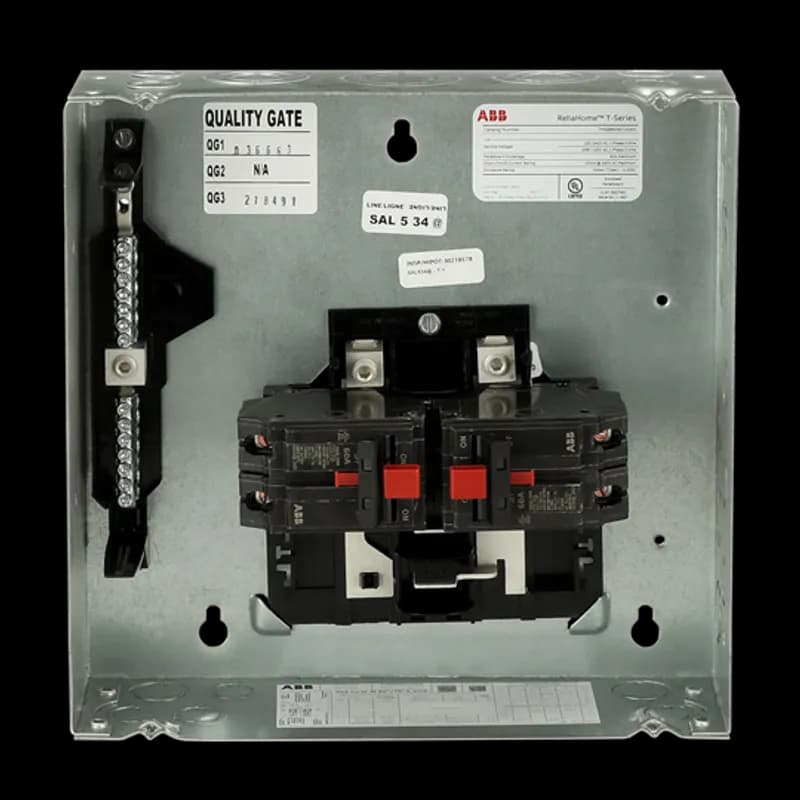

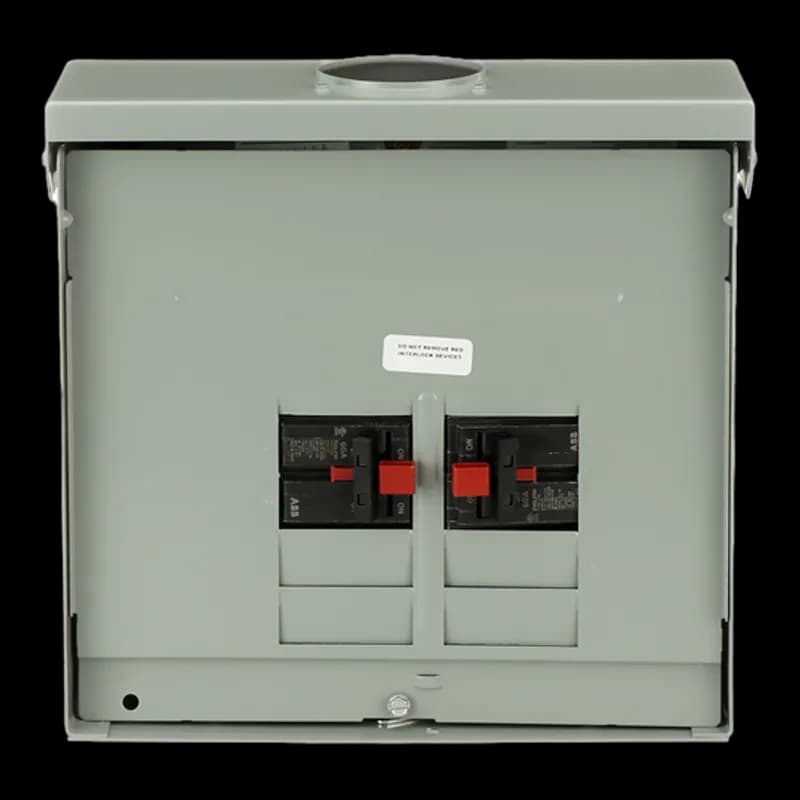

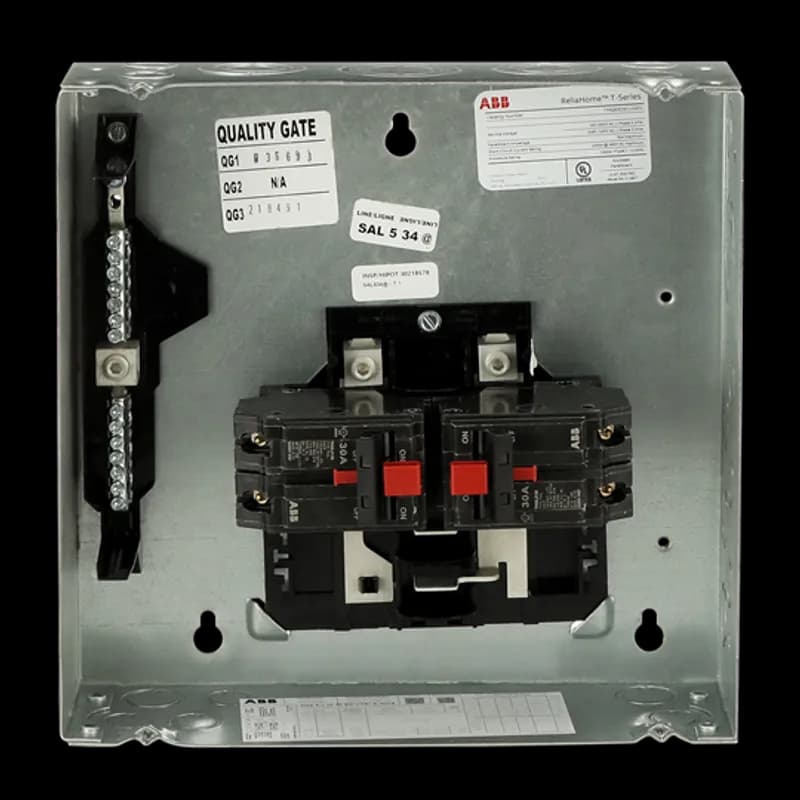

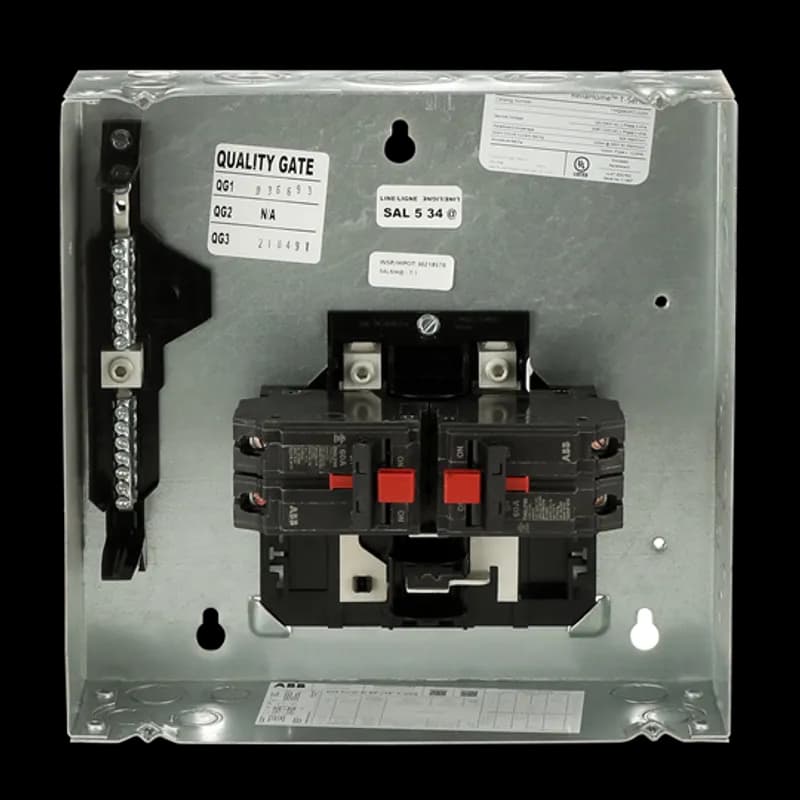

ABB - Electrification TMQ830FCUGEN - ReliaHome generator panels maintain power to such critical circuits as those for furnace, pump, refrigerator, and lights. It features a connected dual breaker mechanism that ensures that only one source is active at a time. Generator panels ensure safety and convenience when using a generator; with a 14,000 peak wattage, 11,520 continuous load, and 48 amps at 240 volts. The TMQ830FCUGEN features a main breaker, spaces for 8, 1" breakers, a 300A main bus ampere, a copper bus, and a flush enclosure.
More images

ABB Electrification TMQ830FCUGEN ReliaHome generator panels maintain power to such critical circuits as those for…

UPC: 783164681062


Documents & Media
Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ReliaHome Generator Panel (SKU: TMQ830FCUGEN) provides essential power continuity for critical home circuits during outages. This single-phase, 3-wire panel is engineered to maintain power to essential systems such as furnaces, pumps, refrigerators, and lighting. Its integrated dual breaker mechanism ensures that only one power source (utility or generator) is active at any given time, preventing dangerous backfeeding and enhancing safety. The panel is rated for a peak wattage of 14,000 and a continuous load of 11,520 watts, operating at 48 amps and 240 volts. Key specifications include a 30A main breaker, providing control over the incoming generator power. It offers space for eight 1-inch branch circuit breakers, allowing for flexible circuit distribution. The panel features a substantial 300A main bus rating, constructed with a high-conductivity copper bus for efficient power transfer. The TMQ830FCUGEN is housed in a NEMA 1 rated, indoor flush enclosure, designed for a clean and professional installation. This load center type is specifically designated as a Generator panel. Additional specifications include a 120/240V AC input/output voltage, a 3-wire configuration, and a 1-phase design. It comes with a factory-installed ground kit and a door for added protection. The interrupting capacity rating is 22. Circuit breakers for branch circuits are sold separately. This model is part of the ReliaHome series and is grouped under Single Phase - USA load centers.
  • Maintains power to critical circuits like furnace, pump, refrigerator, and lights during outages.
  • Connected dual breaker mechanism ensures single-source activation, preventing backfeeding.
  • Rated for 14,000 peak wattage and 11,520 continuous load at 48 amps, 240 volts.
  • Features a 30A main breaker, space for eight 1-inch branch circuit breakers, and a 300A copper bus.
  • NEMA 1 rated, indoor flush enclosure for safe and clean installation.
