Contact for Pricing
Overview

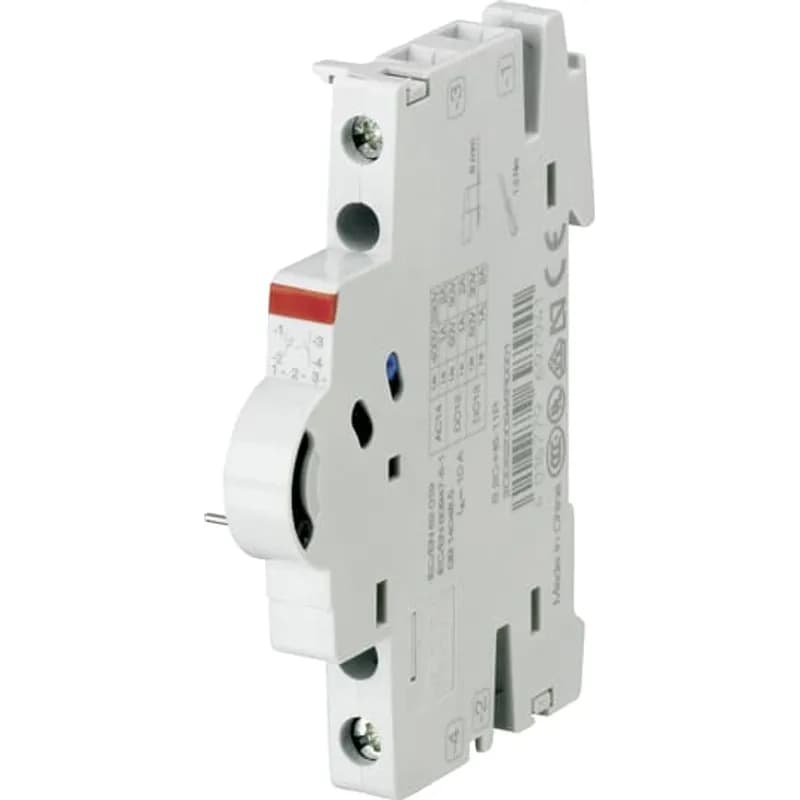

- Designed for ABB S200U and S200UP series MCBs
- Provides changeover contact signaling (1x AUX, 1x AUX/ALT)
- Rated for 6A continuous current and 690V insulation voltage
- Supports AC15 and DC13 usage categories
- Operates from -25°C to 60°C with IP20 protection
Specifications
Application | Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits. |
Current Rating | 6 A |
IP Rating | IP20 |
Poles | 1x AUX, 1x AUX/ALT |
Series | S200U/S200UP |
Size | 82x110x108mm |
Special Features | Terminal type: Screw terminals |
Standard | RoHs, CSA, cUL, CE, GOST |
Type | Contactors |
Voltage Rating | 690 V |
Package Dimensions (L x W x H) | 4.09 IN x 0.79 IN x 4.53 IN |
Package Dimensions (L x W x H) | 10.3886 cm x 2.0066 cm x 11.5062 cm |
Package Weight (Imperial) | 0.130 L |
Package Weight (Metric) | 0.059 kg |
VEM4
Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C. interlocking contacts with the two coils. VE4 block must be used with A2-A2 connection to respect the electrical connection diagram.
DSD926-G
PVC Coated Control Station Component, Selector Switch Maintained Contact 600 VAC Heavy-Duty, Factory Sealed, Three Position, Gray
1825190-7
DIP & SIP Switches, Tin, Black, High Temperature Nylon, 8 Switch, -30 – 85 °C, DIP, 2A Contact Current Rating, Alcoswitch DIP
Frequently Asked Questions
What is the operating temperature range?
The device operates from -25°C to 60°C.
What protection rating does it have?
The device features IP20 protection.
How many switching cycles does it support?
The device ensures 6000 switching cycles.
Which ABB series is this compatible with?
It is designed for the ABB S200U/S200UP series.
What is the insulation voltage rating?
The insulation voltage rating is 690V.
