Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 4A With Crimp Cap For Crimp

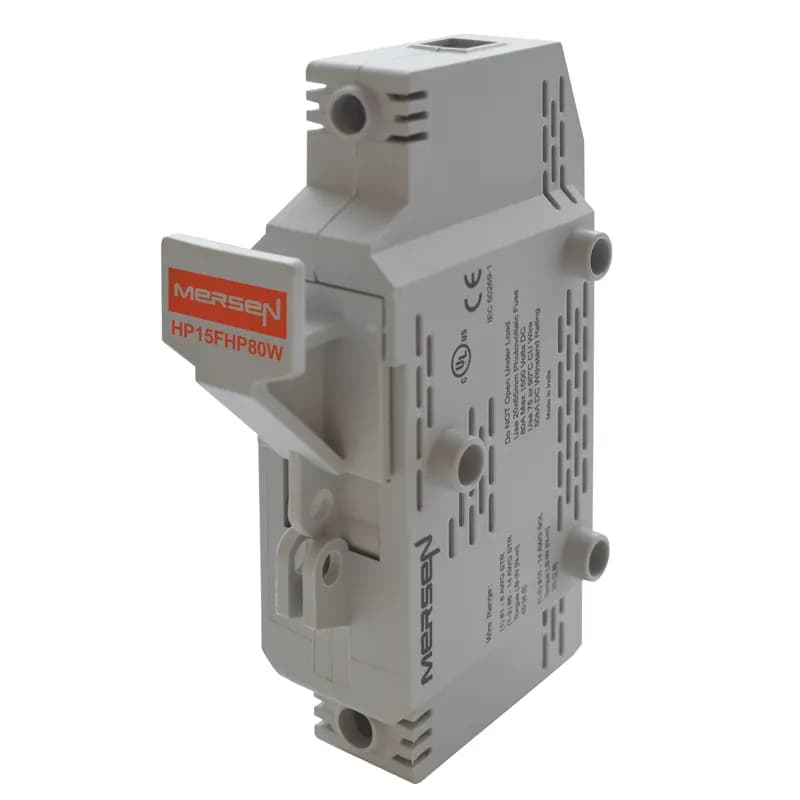

Mersen's HP15FHP80W fuse holders are engineered for enhanced safety in utility-scale photovoltaic applications requiring higher amperage. Designed for 1500VDC and 20x65mm PV fuses, these holders offer finger-safe (IP20) protection with a rotating fuse carrier, similar to Mersen's UltraSafe® line. The HP15FHP80 series provides two configurations to meet global installation needs. One option accepts standard PV rated wiring and comb bus bars for versatile end-use connections. The other accommodates wire and bus bar terminations. Constructed from high-performance UL 94 V-0 rated polymer, these fuse holders exhibit superior flammability resistance, exceptional durability, and robust dielectric withstand properties. SKU: HP15FHP80W. Manufacturer: Mersen. Country of Origin: US.

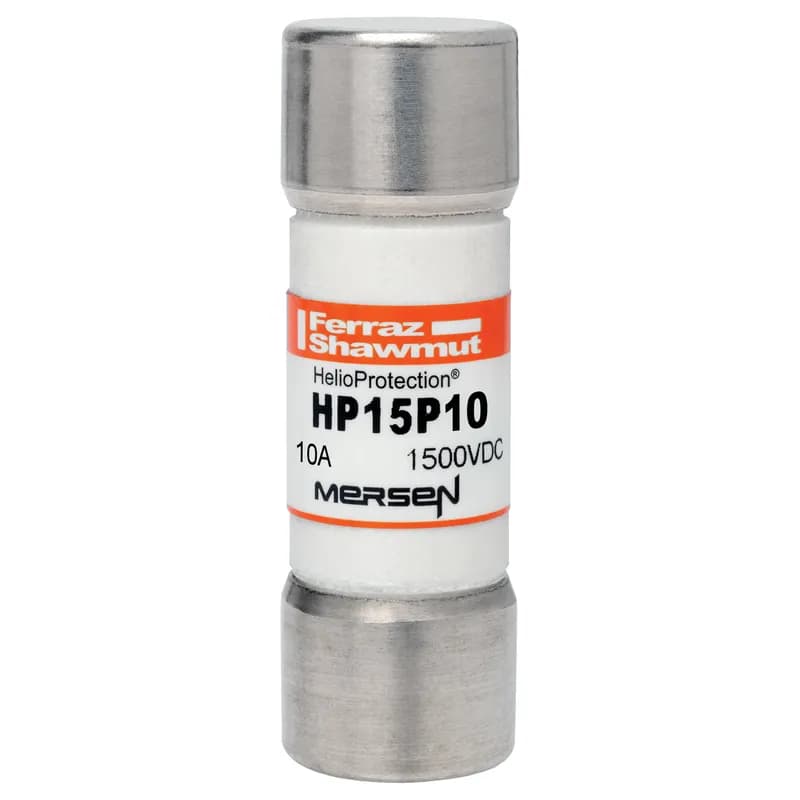

HelioProtection® Fuse 1500VDC 10A 20x65mm

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 20A With Ferrule For Clip

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 2XL 200A With DIN Type Blades For Direct Mount

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 125A With DIN Type Blades For Direct Mount

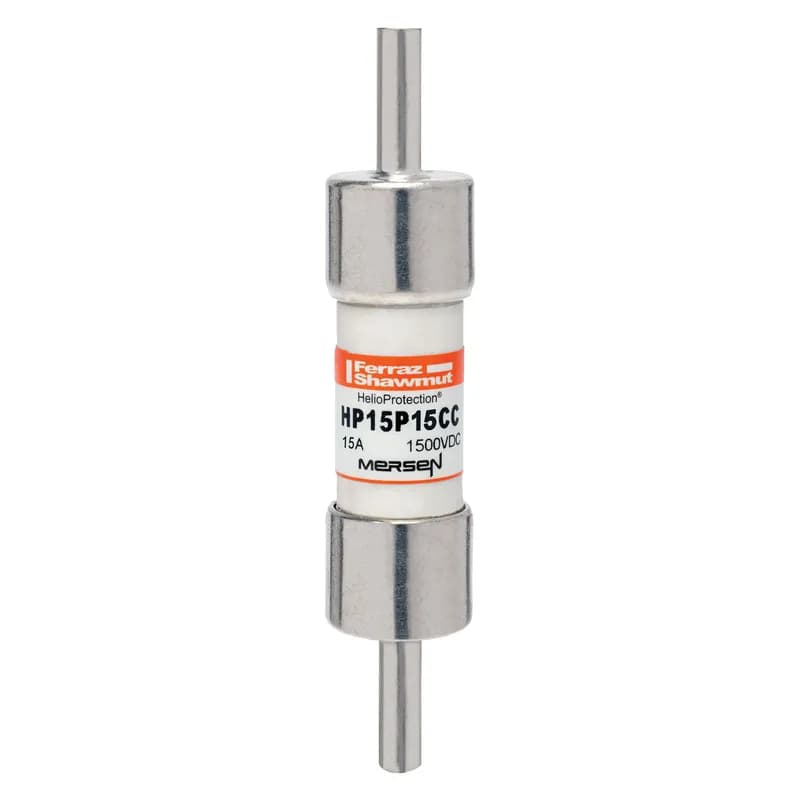

The Mersen HP15P15CC is a 1500VDC photovoltaic (PV) fuse designed for higher amperage demands in PV circuits. This 20x65mm fuse series from Mersen is engineered to withstand harsh cyclical loads and thermal conditions typical of high-amperage PV applications. It features a low minimum breaking capacity of 1.35 times the fuse rated current, ensuring safe interruption during low fault current conditions. The HP15P15CC includes Crimp Cap terminals for solderless, in-line fuse connections, ideal for overmold encapsulation. Protect your grid-tied or off-grid PV systems from unexpected line faults with Mersen's HelioProtection® fuse line. SKU: HP15P15CC. Country of Origin: US.

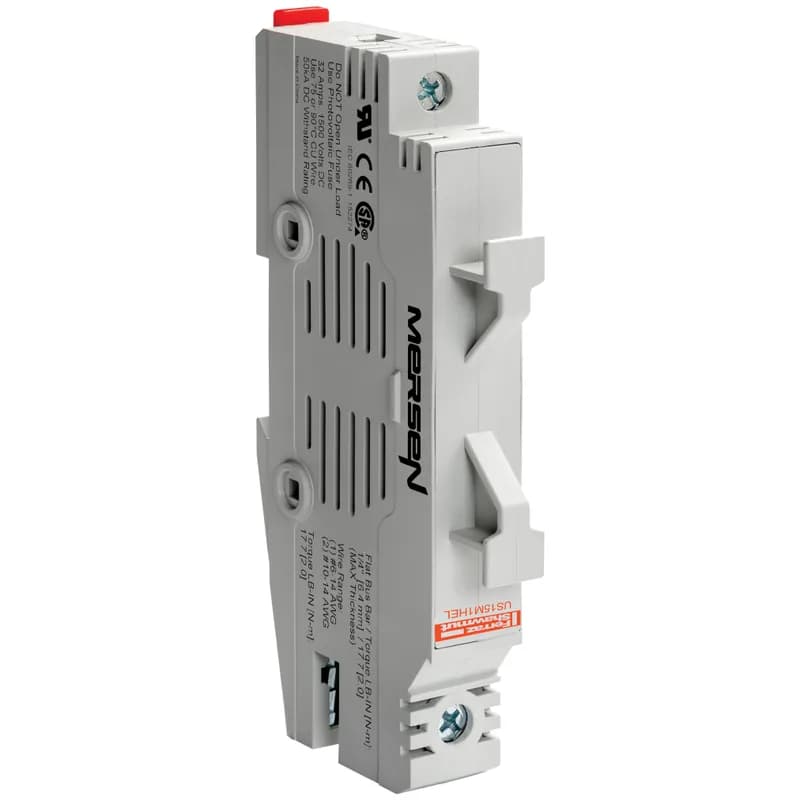

Fuse Holder IEC+UL/CSA HelioProtection® Size 10x85 1500DC UL 1-Pole With LED DIN Rail mounting

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 25A With Ferrule For Clip

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 32A With Crimp Cap For Crimp 50 Pack

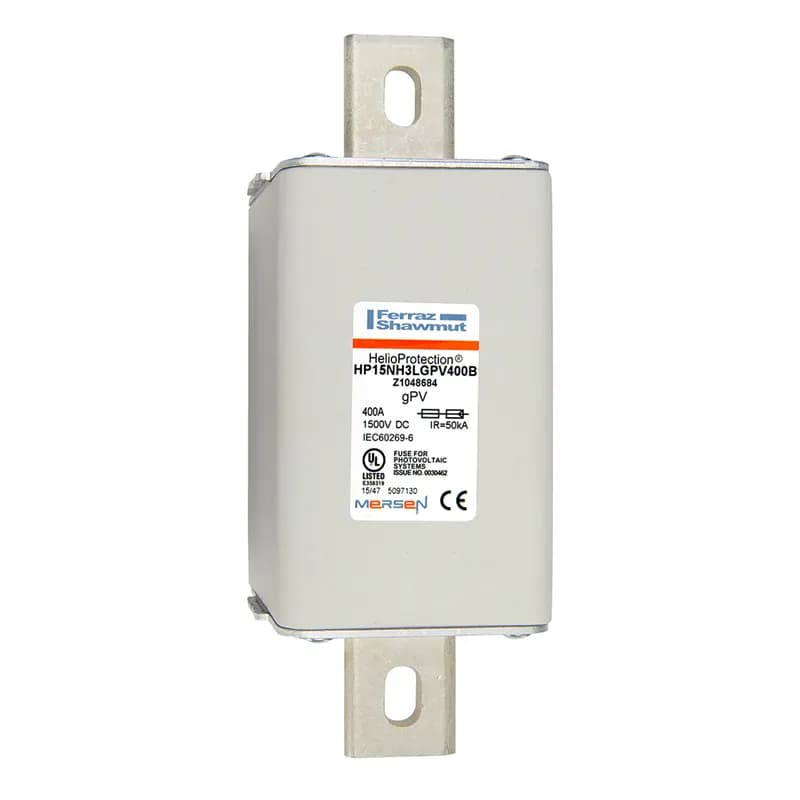

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 3L 400A With DIN Type Blades For Direct Mount

Photovoltaic fuse gR 800VAC IEC Size NH1 100A With Plain Blades For Clip

The Mersen HP15P65 is a 1500VDC photovoltaic (PV) fuse from the HelioProtection® series, engineered to meet the higher amperage demands of modern PV circuits. This 20x65mm fuse is designed to withstand the harsh cyclical loads and thermal conditions inherent in high-amperage PV applications. It features a low minimum breaking capacity of 1.35 times the fuse rated current, ensuring safe circuit interruption even under typical low fault current conditions. Available with standard ferrule terminals or Crimp Cap (CC) terminals for solderless, overmold-encapsulated in-line fuse applications, the HP15P65 offers versatile integration. Its durable construction enhances system longevity, and it is certified to global standards including UL Listed to Standard UL 248-19 and CSA Component Certified C22.2. The HP15P65 is suitable for all photovoltaic applications, including PV string/array level protection, combiner box applications, in-line PV module protection, inverters, and battery charge controllers. Protect your off-grid or grid-tied PV system from unexpected line faults with Mersen's reliable HelioProtection® fuse line. Key specifications include a 1500VDC voltage rating, 50kA SCCR, and a 20x65mm size. Mersen SKU: HP15P65. Country of Origin: US.

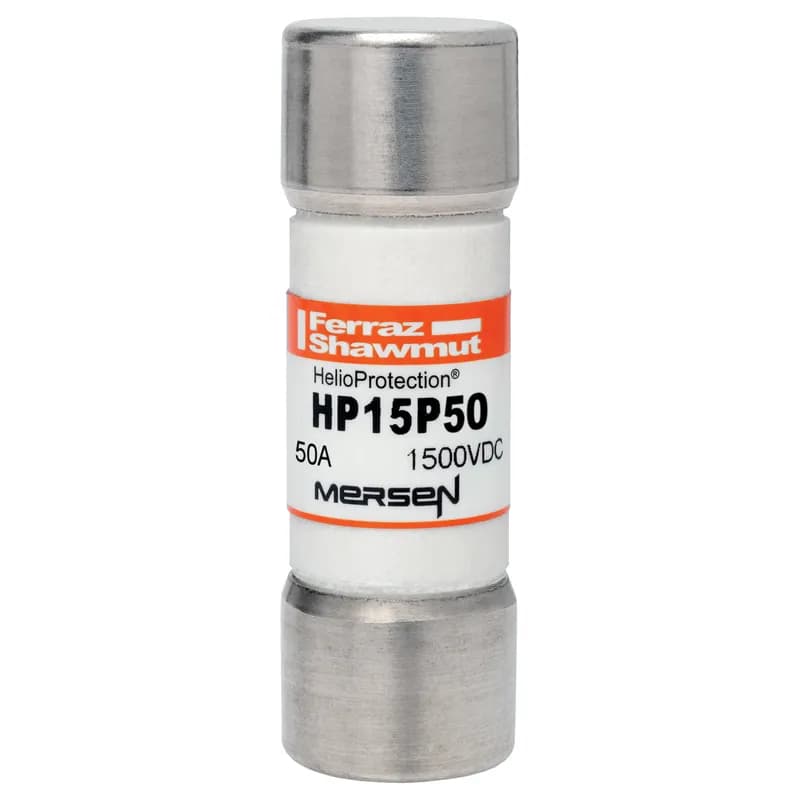

Mersen's HP15P50 photovoltaic (PV) fuse, SKU HP15P50, is engineered for robust protection in 1500VDC solar systems. This 20x65mm fuse series, part of the HelioProtection® line, addresses the higher amperage demands of contemporary PV circuits. Designed to withstand harsh cyclical loads and thermal conditions, it ensures reliable operation in demanding applications. The HP15P50 features a low minimum breaking capacity of 1.35 times its rated current, enabling safe interruption of typical low fault currents encountered in PV arrays. Available with standard ferrule terminals or optional Crimp Cap (CC) terminals for solderless, in-line fuse connections and overmold encapsulation, this fuse offers installation flexibility. Its durable construction contributes to enhanced system longevity and guaranteed operation at temperature extremes. The HP15P50 is UL Listed to Standard UL 248-19 and CSA Component Certified C22.2, with IEC 60269-6 compliance (excluding 65A). Applications include PV string/array level protection, combiner boxes, inverters, and battery charge controllers. Protect your off-grid or grid-tied PV system from unexpected line and ground faults with Mersen's specialized PV fuse solutions.

Mersen HP15P60 is a 1500VDC photovoltaic fuse rated for 60A, designed for high-amperage PV circuits. Part of Mersen’s HelioProtection® line, it meets UL2579 and IEC60269-6 standards with a 50kA interrupting rating. The 20x65mm form factor withstands harsh thermal cycling and cyclical loads common in PV systems. Features low minimum breaking capacity (1.35xIn) for safe interruption under low fault currents. Available with standard ferrule or Crimp Cap terminals (CC suffix) for in-line applications. Protects off-grid and grid-tied PV systems from ground faults and string faults.

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 4A With Ferrule For Clip 88 Pack

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 3L 160A With DIN Type Blades For Direct Mount

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 50A With DIN Type Blades For Direct Mount

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 3L 400A With Striker With DIN Type Blades For Direct Mount

The Mersen HP15P63 is a 1500VDC photovoltaic (PV) fuse, part of the HelioProtection® series, designed for higher amperage demands in PV circuits. This 20x65mm fuse is engineered to withstand harsh cyclical loads and thermal conditions common in high-amperage PV applications. It features a low minimum breaking capacity of 1.35 times its rated current, ensuring safe interruption under typical low fault current conditions. Available with standard ferrule terminals or Crimp Cap (CC) terminals for solderless, overmold-encapsulated in-line fuse connections. Protects off-grid and grid-tied PV systems from unexpected line faults. Rated for 1500VDC and 63A.

1500V 80A PV FH 20x65mm Wire/Bus Bar

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 10x85 30A With Crimp Cap For Crimp

The Mersen HP15P45CC is a 1500VDC photovoltaic (PV) fuse designed for high amperage PV circuits. This 20x65mm fuse series handles demanding cyclical loads and thermal conditions. It features a low minimum breaking capacity of 1.35 times the rated current for safe interruption of typical low fault currents. The 'CC' option provides Crimp Cap terminals for solderless, overmold-encapsulated wire-to-fuse connections, ideal for in-line PV module protection. Protect your grid-tied or off-grid PV systems from unexpected line faults with Mersen's HelioProtection® fuse line. SKU: HP15P45CC. Manufacturer: Mersen. Country of Origin: US.

The Mersen HP15M GEN2 photovoltaic (PV) fuse series, specifically the HP15M8RCC8 model, offers robust protection for solar energy systems. Engineered to withstand the severe temperature and current cycling inherent in PV applications, this 8A, 1500VDC rated fuse provides enhanced reliability through stringent cycle testing. Its low minimum breaking capacity of 1.35 times the fuse rated current ensures safe circuit interruption even under typical low fault current conditions. The HP15M8RCC8 features a Crimp Cap terminal, facilitating solderless wire-to-fuse connections ideal for overmold encapsulation in in-line fuse applications. This design ensures secure and efficient integration within your off-grid or grid-tied PV system. Protect your valuable solar infrastructure from unexpected line faults with Mersen's HelioProtection® fuse line, designed for critical safety and operational integrity. SKU: HP15M8RCC8. Manufacturer: Mersen. Series: HP15M GEN2. Connection Type: Crimp Cap. Country of Origin: US.
