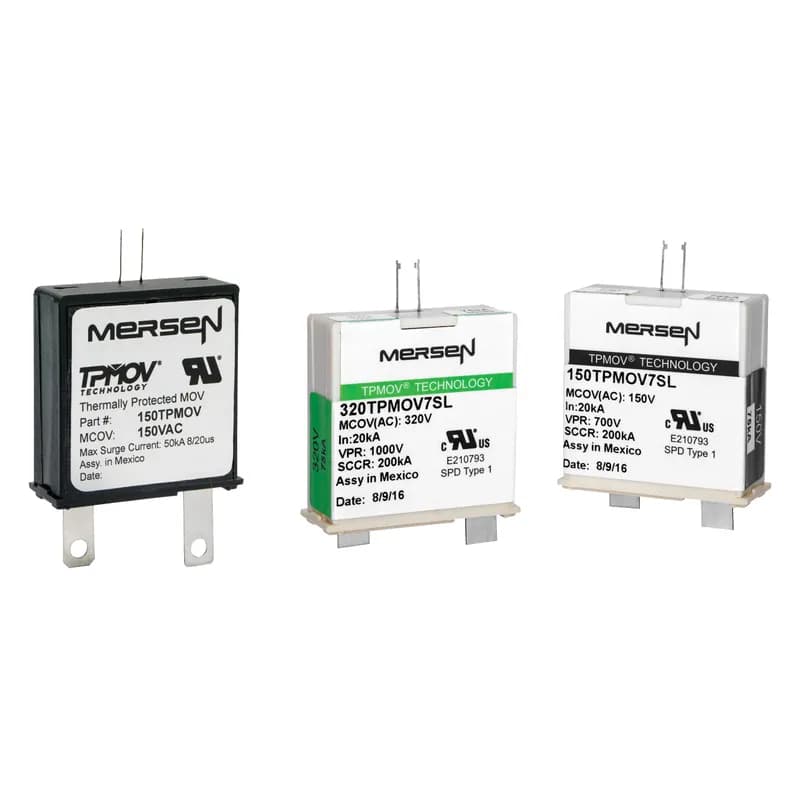

Mersen’s 510TPMOVTS TPMOV7 surge suppression component combines industry-leading TPMOV technology with 50% more surge capacity (75kA, 8/20μs) in the same footprint as standard 25–40mm MOVs. Each unit integrates a voltage clamping device and a disconnecting apparatus that monitors the metal oxide disk, making it a fail-safe device. In overvoltage events, the metal oxide disc is securely disconnected by an arc shield. The device includes a visual pin indicator and a normally open micro-switch for remote failure indication. Rated for maximum continuous operating voltages (MCOV) from 150V to 320VAC, the 510TPMOVTS is designed for industrial applications requiring reliable, thermally protected surge protection.

Mersen’s TPMOV7 surge suppression component (SKU: 150TPMOVTS) delivers 50% more surge capacity in the same footprint as standard MOVs, rated for 75kA peak surge current (8/20μs). Designed for maximum continuous operating voltages (MCOV) from 150V to 320VAC, this fail-safe device eliminates common field failure modes of standard metal oxide varistors. Internally, it combines a voltage clamping device with a disconnecting apparatus that monitors the metal oxide disk, ensuring secure disconnection from system power during overvoltage breakdown via an arc shield. The TPMOV7 series includes a visual pin indicator and a normally open micro-switch for remote indication, enhancing system monitoring and safety. With a short-circuit current rating (SCCR) of 200kA and response time under 1 nanosecond, the TPMOV7 is ideal for protecting sensitive industrial equipment, power distribution systems, and renewable energy installations. Its thermoplastic enclosure (UL 94 V-0 rated) and operating temperature range of -40°C to +85°C ensure reliability in harsh environments. Compatible with 25–40mm MOV footprints, the TPMOV7 series provides a consistent, high-performance solution for surge protection without requiring footprint changes.

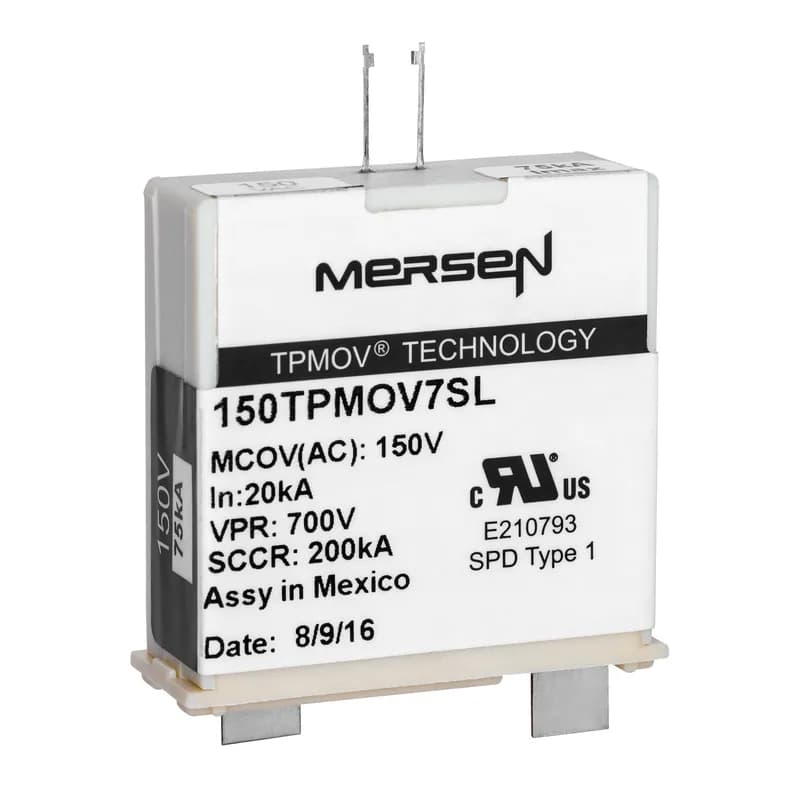

SPD - TPMOV 150V Short Leads Microswitch No Visual Tabs 75 kA 500 pk

Mersen 320TPMOVTS surge suppressor uses proprietary TPMOV tech to prevent MOV failure modes. It combines voltage clamping with an active disconnect that monitors the metal oxide disk. On overvoltage, an arc shield isolates the disk from power. Failure triggers a visual pin indicator and a normally open micro-switch for remote signaling. Part of the TPMOV7 series, it delivers 50% more surge capacity in the same footprint. Specs: 75kA (8/20μs) peak surge current, 320VAC MCOV. Made in the US.

The Mersen 550TPMOVTS is a surge suppression component utilizing patented TPMOV technology. This technology addresses common failure modes found in standard metal oxide varistors (MOVs). Internally, it integrates a voltage clamping device with a disconnecting apparatus that monitors the MOV disk's status, ensuring a fail-safe operation. In case of overvoltage breakdown, an arc shield disconnects the MOV disk from system power. Upon failure, the 550TPMOVTS provides a visual pin indicator and a normally open micro-switch for remote indication. The TPMOV7 series, to which this component belongs, offers 50% more surge capacity in the same footprint as previous models. It is rated for 75kA (8/20μs peak surge current) and is available for maximum continuous operating voltages (MCOV) from 150V to 320VAC. This product is manufactured by Mersen and is designed for robust surge protection.

The Mersen 180TPMOVTS is a Thermally Protected Metal Oxide Varistor (TPMOV) surge suppression component designed for robust industrial applications. It features Mersen's patented TPMOV technology, which actively monitors the metal oxide disk and incorporates a disconnecting apparatus to eliminate common failure modes found in standard MOVs. This fail-safe design ensures secure disconnection from system power via an arc shield during overvoltage events. The 180TPMOVTS offers a 75kA (8/20μs) peak surge current rating and a Maximum Continuous Operating Voltage (MCOV) of 180VAC. For enhanced operational awareness, it includes a visual pin indicator and a normally open micro-switch for remote failure indication. This model is part of the TPMOV7 series, providing 50% more surge capacity in the same footprint as previous generations.

Mersen’s 510TPMOVSL TPMOV7 surge suppression component delivers 50% more surge capacity than standard MOVs in the same footprint, rated at 75kA (8/20μs) peak surge current. Designed for maximum continuous operating voltages (MCOV) from 150V to 320VAC, this fail-safe device eliminates common field failure modes associated with standard metal oxide varistors. Internally, it combines a voltage clamping device with a disconnecting apparatus that monitors the metal oxide disk, ensuring secure disconnection during overvoltage events via an arc shield. Upon failure, the 510TPMOVSL provides dual failure indicators: a visual pin indicator for on-site inspection and a normally open micro-switch for remote monitoring. This thermally protected MOV (TPMOV) series maintains a consistent footprint compatible with 25–40mm MOVs, making it a direct replacement option for existing systems. The device operates reliably across a temperature range of -40°C to +85°C, ensuring consistent performance in harsh industrial environments. Ideal for protecting sensitive electronics, power distribution systems, and industrial machinery from transient voltage spikes.

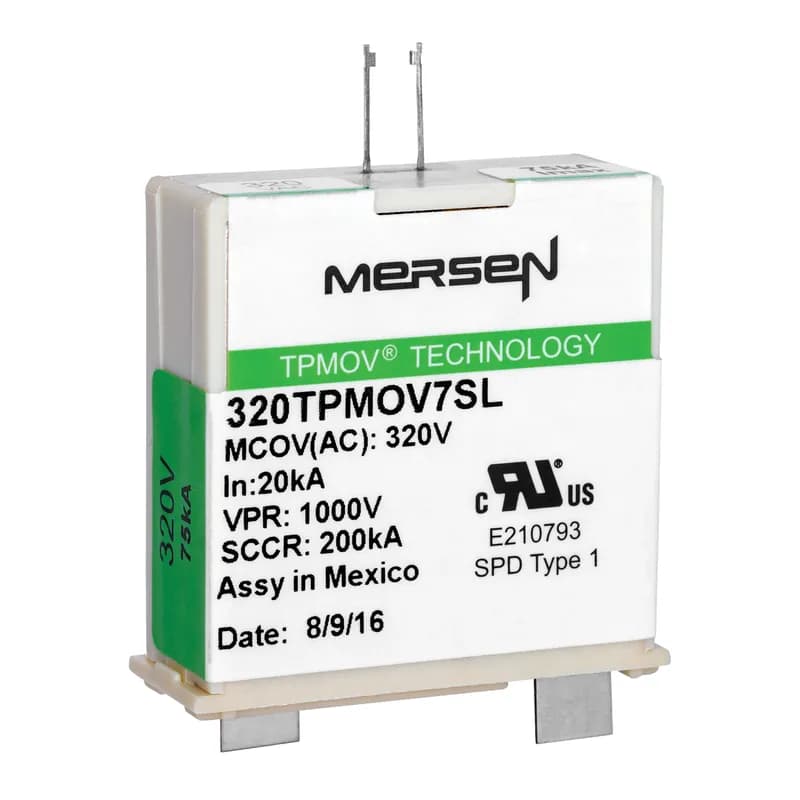

SPD - TPMOV 320V Short Leads Microswitch No Visual Tabs 75 kA 500 pk

Mersen 25TPMOVSL320 TPMOV surge suppressor, SKU 25TPMOVSL320, uses patented TPMOV tech with fail-safe disconnect. Features visual pin indicator and NO micro-switch for remote failure alert. Specs: 25kA (8/20μs) impulse, 200kA SCCR, 320VAC MCOV, 1000V VPR. UL 94 V-0 rated, -40°C to +85°C operation. PCB-mount with short leads, ANSI/UL 1449 4th Ed. Type 1 SPD compliant.

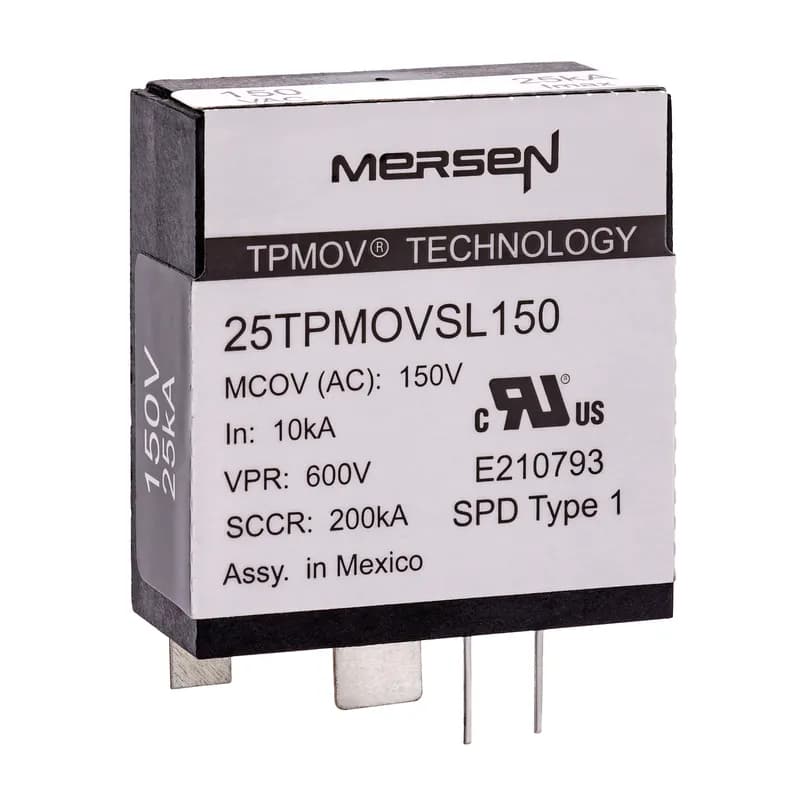

The Mersen 25TPMOVSL150 is a Thermally Protected Metal Oxide Varistor (TPMOV) surge suppression component designed for robust protection. Utilizing Mersen's patented TPMOV technology, it addresses common failure modes found in standard MOVs, offering a fail-safe operation. Each unit integrates a voltage clamping device and a monitoring apparatus for the metal oxide disc. Upon failure, it provides a visual pin indicator and an optional normally open micro-switch for remote status indication. This model is rated for a 25kA (8/20μs) peak surge current and a maximum continuous operating voltage (MCOV) of 150VAC. It features a 200kA SCCR and a response time of less than 1 nanosecond. The 25TPMOV series is available in a standard 25mm MOV footprint and is UL 1449 4th Edition, Type 1 SPD compliant. Operating temperature range is -40°C to +85°C. SKU: 25TPMOVSL150.
