Showing 1-8 of 8 results
Showing 1-8 of 8 results
NSI Industries · Polaris · Utilities
2-350L4
2 Port Aluminum Dual Rated Transformer Lug 350 MCM - 6 AWG - 4 Mounting Holes Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
Contact for Pricing
ABB - Installation Products
13681
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 210214MT Dragon Tooth Terminals
Contact for Pricing
Contact for Pricing
ABB - Installation Products
BA 250-3
Tin Plated Aluminum Dual Rated Mechanical Splice - Conductor Range #6-250kcmil, CU7AL. CSA Listed. Length 1-13/16 inch, Width 13/16 inch, Height 1 inch. 4 Taps, 3 Sizes. (1) 5/8-18 UNF-2x x .66 inch Deep. (1) 5/16-18 UNC-2B Thru. (2) 10-32 UNF-2B Thru. Includes One Tin Plated Aluminum Set Scew 5/8-18 x 11/16 inch Long with 5/16 inch Hex Socket Head
Contact for Pricing
ABB - Installation Products

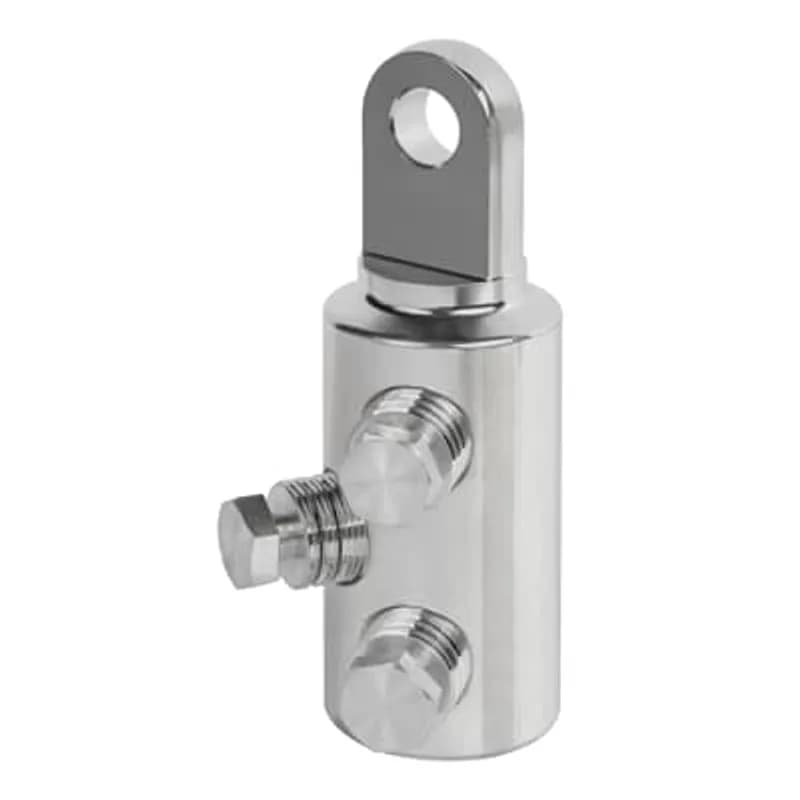

EACT-1250
15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for 750 to 1250 kcmil. Barrel Body Diameter 2.05 Inch (52mm), Length 6.10 inch (155mm), 1-Hole Width 1.38 inch (35mm), .5 inch Thick, Hole Diameter 0.689 inch (17.5mm). Includes three M24 x 1.5 Round Bottom Screws with Hex Head.
Contact for Pricing
ABB - Installation Products
EACT-0300
15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for #2 to 300 kcmil. Barrell Body Diameter 1.18 Inch (30mm), Length 4.13 inch (105mm), 1-Hole Pad Width 1.42 inch (36mm), .5 inch Thick, Pad Hole Diameter 0.689 inch (17.5mm). Includes Three M14 x 11 Round-Bottom Screws with 3/8 Hex Head.
Contact for Pricing
ABB - Installation Products
EACT-0500
15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for 4/0 to 500 kcmil. Barrel Body Diameter 1.30 Inch (33mm), Length 4.67 inch (118.5mm), 1-Hole Pad Width 1.42 inch (36mm), .5 inch Thick. Hole Diameter 0.689 inch (17.5mm). Includes Three M18 x 11 Round Bottom Screws with 1/2 inch Hex Head.
Contact for Pricing
ABB - Installation Products

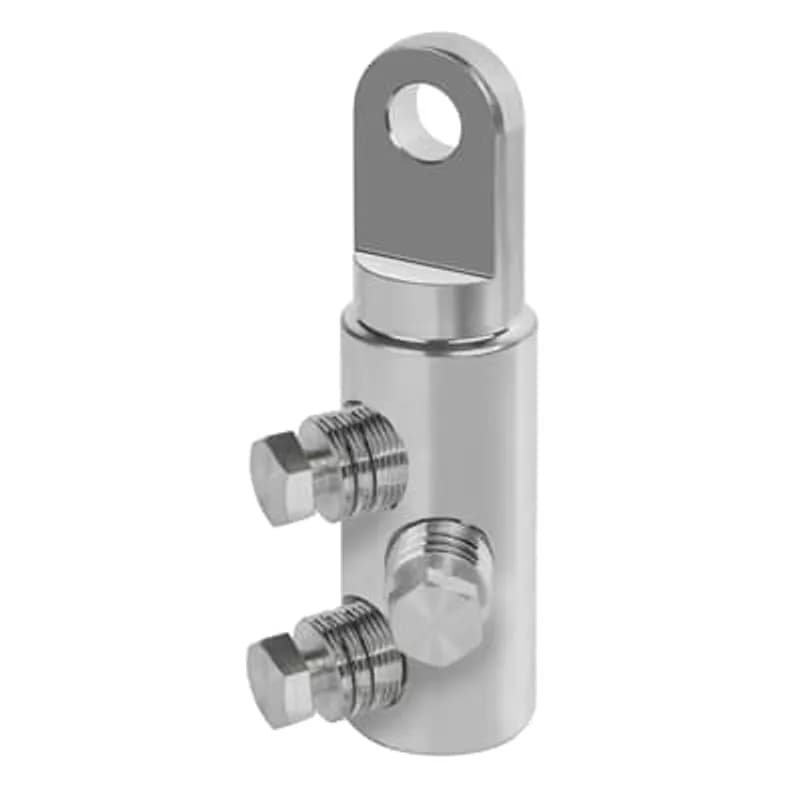

EACT-0750
15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for 350 to 750 kcmil. Barrel Body Diameter 1.65 Inch (42mm), Length 5.83 inch (148mm), 1-Hole Pad Width 1.42 inch (36mm), .5 inch Thick, Hole Diameter 0.689 inch (17.5mm). Includes Three Round Bottom M22 x 1.5 Screws with 3/4 inch Hex Head.
Contact for Pricing
Showing 1-8 of 8 results
Showing 1-8 of 8 results
