The Mersen FBC60J100 is a Generation 2 open-style Class J fuse block designed to accommodate Class J fuses from 0-100A at 600V. This model offers versatile connection options, including screw, pressure plate, and box connectors, compatible with a wide range of stranded or solid wire. Engineered for modern industrial applications, these Gen2 fuse blocks feature a more compact design compared to traditional offerings and are DIN-rail mountable for efficient panel assembly. The dovetail nesting capability allows for easy multipole field assembly, simplifying configuration. When paired with Mersen’s newly designed dead front covers, the fuse bases achieve an IP20 rating, enhancing safety. Manufactured in the USA, the FBC60J100 (SKU: FBC60J100) provides reliable fuse protection and connection for electrical systems.

ABAT Size C, voltage : up to 1500VDC (with L/R≤3ms), Class : aBat, 1250A, with Metric thread Flush Ends

EVpack Fuse 500VDC UL 500VDC IEC 400A Size 30G Max. Rated Breaking Capacity DC: 30 kA @ 500 V, L/R ≤ 2.5 ms Bolted

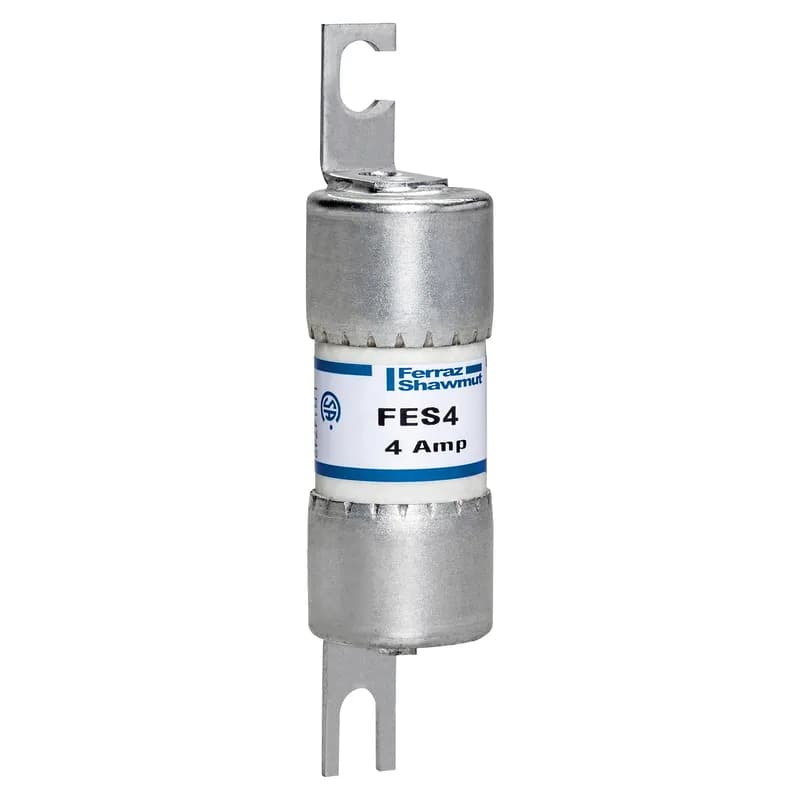

Fuse FES – HRC-II 600VAC 460VDC 4A Blade

Miniature fuse GSD-V - Fast-Acting 250VAC 0.4A Size 5x20 Soldered connection

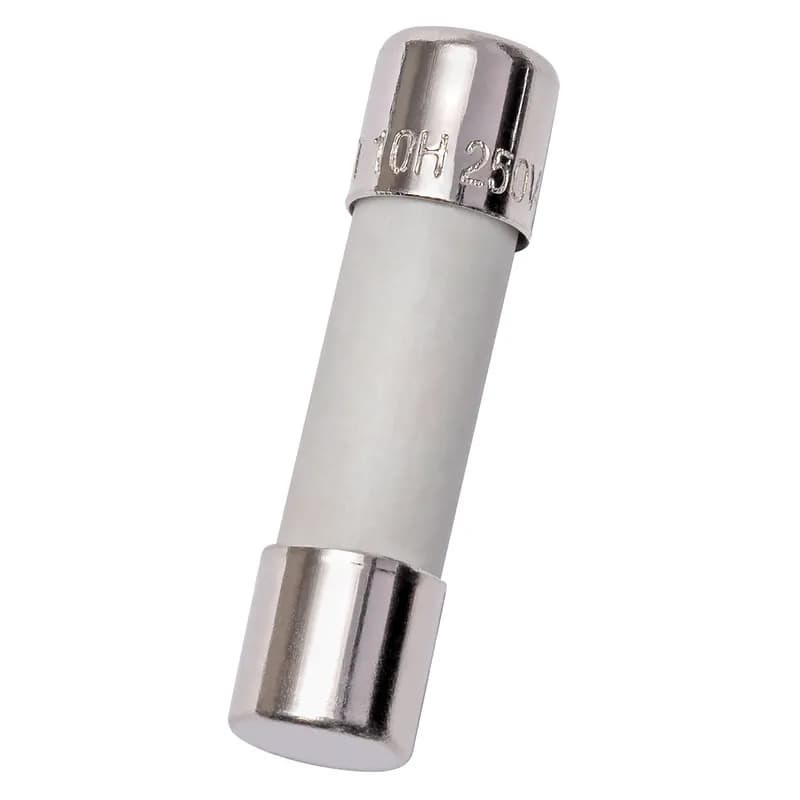

Miniature fuse GSF - Time-Delay 250VAC 1.6A Size 5x20 Ferrule

Miniature fuse GGA-V - Time-Delay 250VAC 0.4A Size 5x20 Soldered connection

Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle Water-tight Screw Knob Panel Mount

Miniature fuse GGC-V - Fast-Acting 250VAC 1A Size 6,3x32 Soldered connection

Miniature fuse GGC-V - Fast-Acting 250VAC 0.375A Size 6,3x32 Soldered connection

Miniature fuse GSC-V - Time-Delay 250VAC 4A Size 5x20 Soldered connection

Fuse Holder UltraSafe™ 600VAC 600VDC Class CC 30A 2-Pole Pressure Plate IP20
