VAr Load Sharer. 415/480V 5A. The T4900 is designed to control a generator operating in parallel with the grid, or a generator operating in parallel with other generators (which are also controlled by T4900 units). The T4900 will continuously measure and compare the reactive current on the generator to an external DC reference signal connected to the “parallel line” input. The T4900 will increase or decrease the voltage of the generator (through the AVR) if it finds the reactive current level to be either too low or too high. Two built-in relays provide the increase and decrease pulses for the automatic voltage regulator (AVR). The strength (width) of the pulses is proportional to the voltage deviation. The E7800 Motorised Potentiometer can be used to adapt the contact pulses to a signal suitable for most AVR’s.

Load Sharer. 415/480 VAC 5A. The T4400 is designed to control a generator operating in parallel with the grid, or a generator operating in parallel with other generators (which are also controlled by T4400 units). The T4400 includes built-in frequency control and an optimized regulation scheme. These two features provide near perfect stability and compensates for any drift within the speed controller. A soft load/unload facility is also included.

50-W ground-check termination assembly with convenient mounting holes and screw terminals.

CT 100:1 WITH FLUX COND 31MM

Panel-mounted analog am meter displays the Ground-Fault Current as a percentage of the set-point.

CURRENT XFRMR I/P MOD RING-TONGUE TERM. Current Input Module Interface between MPU-32 or FPU-32 and 5-A-secondary, 1-A-secondary, and sensitive current transformers. With ring tongue terminals.

Relay Accessories 0STT. Online Self-Training tutorial for PGR-6200 programming. POWR-GARD Protection Relays are supplied with free software. The software simplifies programming and allows the user to save setpoint files and reuse them for similar applications. The software gives the ability to change parameters and see the impact on the protection time current curves. It also allows another device curve to be entered to view simple coordination.

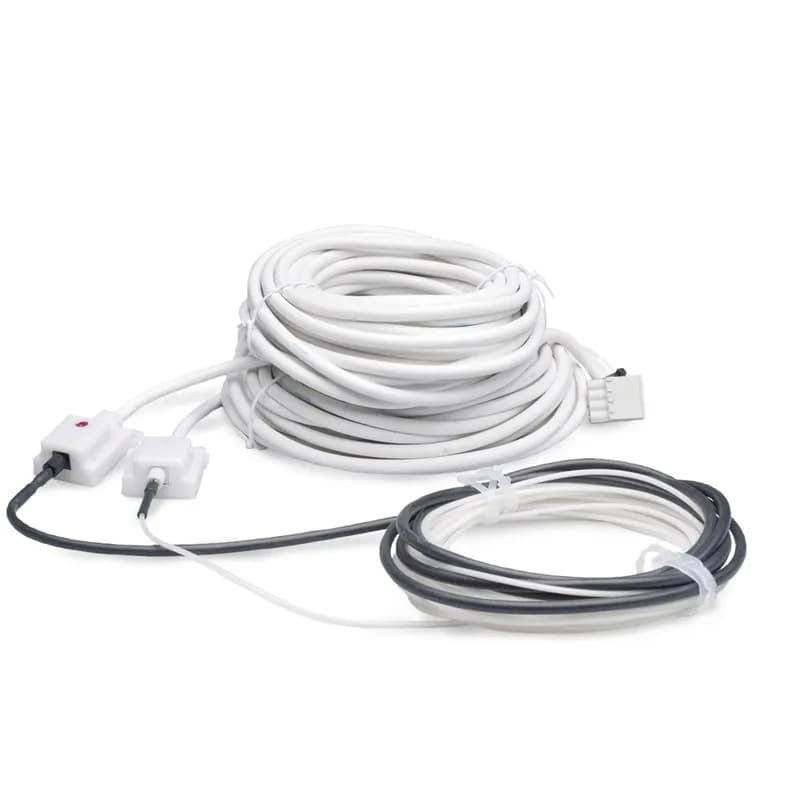

PGA-LS20 is an arc-detection, fiber-optic sensor accessory used with the PGR-8800 relay to collect light over a wide angle. This sensor weighs 1.5 kg.

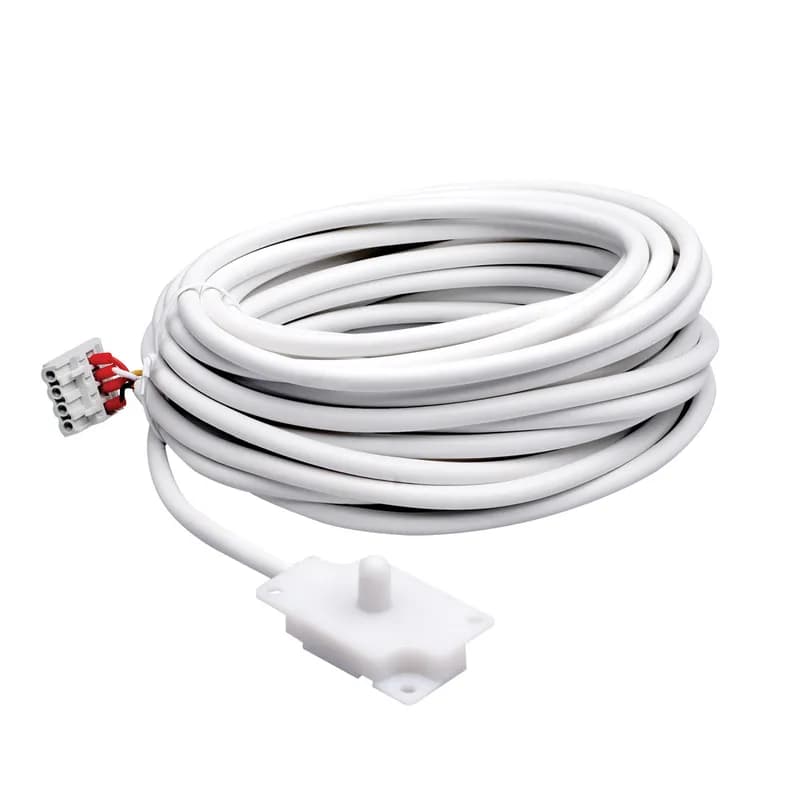

PGA-LS10 is an arc-detection, optical sensor accessory used with the PGR-8800 relay to collect light over a wide angle and with high sensitivity. This sensor weighs 0.6 kg.

RELAY ELEC MPU CABLE MPU/ICT 6C CONNECT. MPU-CIM to MPU-32 Interconnect Cable, 6 m (19’) Included with MPU-CIM.

Electronic Potentiometer. 230V AC. The T7900 Electronic Potentiometer is typically used as an interface between a unit that provides increase/decrease contacts signals and electronic speed governors or voltage regulators (AVR) controlled by analogue voltage or current signals. The T7900 works much like a conventional motorized potentiometer (e.g. the E7800). However, instead of a variable resistance, the T7900 provides a variable voltage (e.g. -5 to +5 VDC), current (e.g. 4-20 mA) or a pulse width modulated signal (PWM). The voltage and current range is programmable. The PWM output provides a 500 Hz signal with programmable duty cycle. The analogue outputs are galvanically isolated.

T3000 Frequency Relay. 100/110V. The T3000 is intended for effective frequency surveillance on generators, busbar or other distribution systems. The relay contains the functions “under frequency” and “over frequency” time delayed, and 2 individual output relays, one relay for each function.
