The Littelfuse LA15QS series semiconductor fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The LA15QS product lines compact design is perfect for those applications that have limitations on available space.

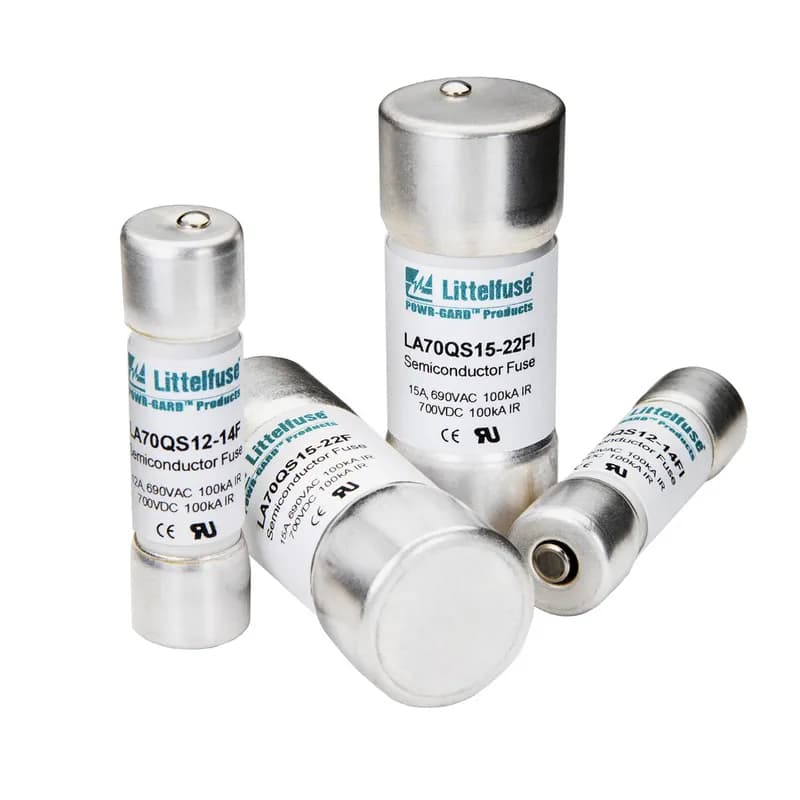

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

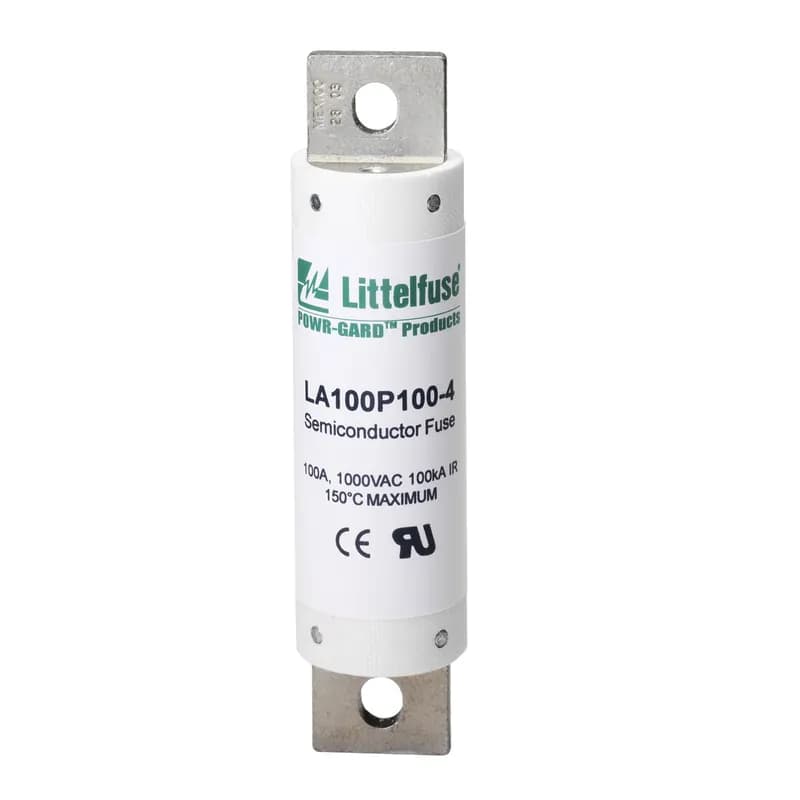

Littelfuse's LA100P semiconductor protection fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. With ratings from 15-1000 amperes, a wide range of high voltage applications can be served. Features: Low l2t minimizes damage to protected components on short circuit. Controlled arc voltage reduces stress to circuit components during fuse clearing. Applications: Protection of UPS systems, AC/DC drives, reduced voltage motor starters and other 1000V or less semiconductor devices.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

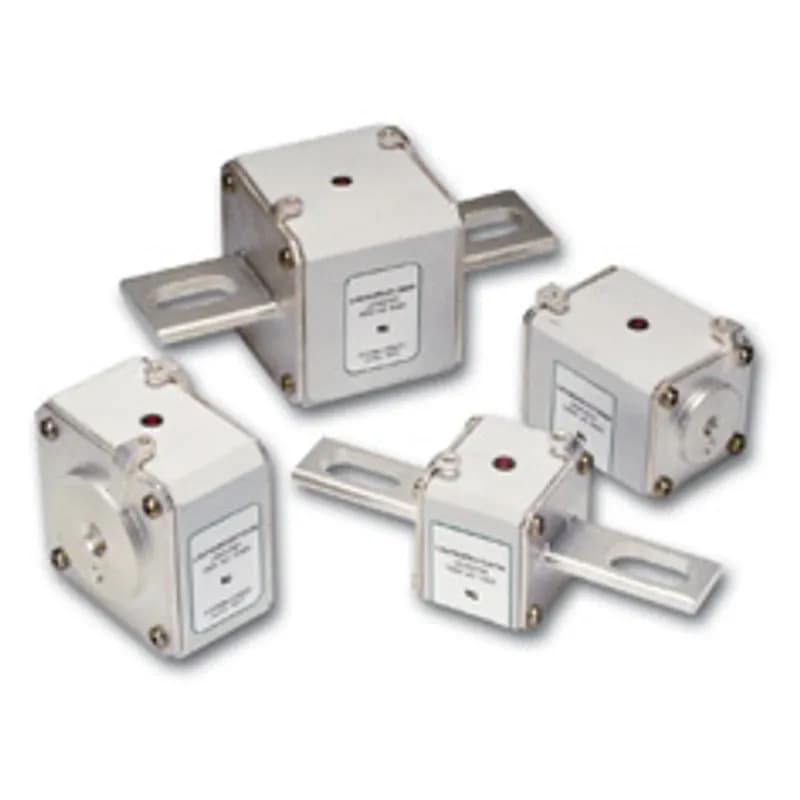

VERY FAST-ACTI SEMICOND FUSE 70LI0200. Littelfuse North American style square body high-speed fuses provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. Available in different body sizes and multiple mounting styles, the broad range of ampere ratings allows great flexibility in equipment design. Engineered to provide state-of-the-art protection for SCRs, diodes, thyristors, GTOs, and IGBT devices, Littelfuse square body fuses have pure die-cut elements embedded in solidified sand to control arcing and lower I2t. All fuses are also equipped with a blown fuse trip indicator. Features: Choice of mounting styles provides a wide choice for equipment design. Broad range of ampere ratings in a given body size for design flexibility. Very low I2t minimizes damage to protected components. Superior cycling ability for long, reliable life on high cyclic loading. Extremely fast-acting and current-limiting for improved protection to equipment. Applications: Protection of rectifiers, inverters, DC drives, UPS systems, reduced voltage motor starters, and other equipment in globally accepted applications.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

Specialty Fuses 700 VAC Semiconductor Fuses

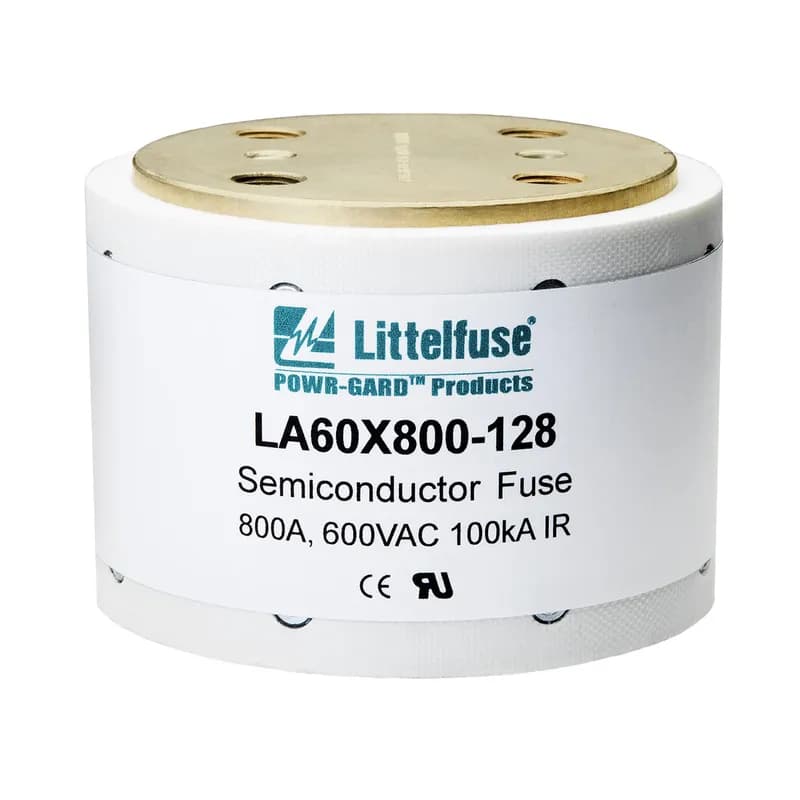

The Littelfuse LA60X semiconductor protection fuses are popular for the protection of higher voltage heavy rectifiers such as traction rectifiers. They can carry long sustained overloads common with heavy-duty apparatus. The compact hockey-puck; design provides high power protection in a small space. Features: Lowest l2t minimizes damage to protected components on short circuit. Controlled arc voltage reduces stress to circuit components during fuse clearing. Applications: Protection of heavy traction and electrochemical as well as rectifiers and other heavy-duty equipment.

Littelfuse French Cylindrical style semiconductor fuses are an extension to the LA70QS series. They offer a solid-fill design with high interrupting ratings and an optional striker for visual or remote blown fuse indication. The international 14 x 51mm and 22 x 58mm sizes are accepted worldwide.

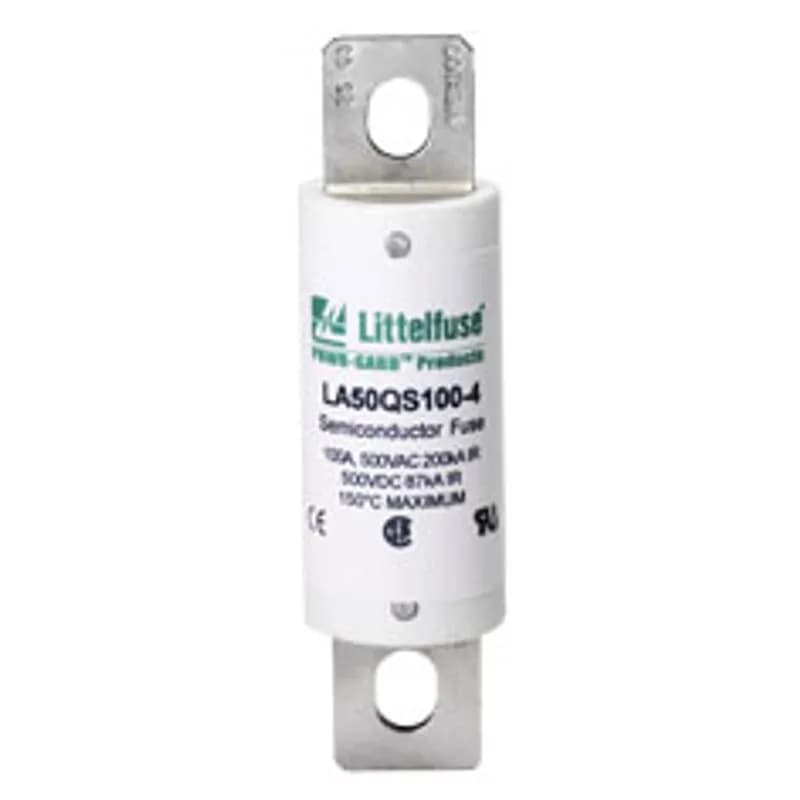

LA50 VERY FAST-ACT SEMICOND FUSE QS600-4. In response to new equipment requirements, Littelfuse LA50QS series fuses were developed to improve the overall performance of semiconductor fuses. The LA50QS provides the best protection features including lower I2t, longer life when subjected to cyclic loading and lower watts loss. LA50QS is today’s choice for the protection of dynamic solid state equipment. Features: Lowest I2t for greatest protection of semiconductor circuits. Low watts loss for cooler operation. Superior cycling ability gives an equipment design advantage. State-of-the-art protection for 500 volt equipment. Ultra compact sizes allow down-sizing of existing equipment. Applications: Protection of 500 volts or less solid state equipment such as motor drives, UPS, inverters, etc.
