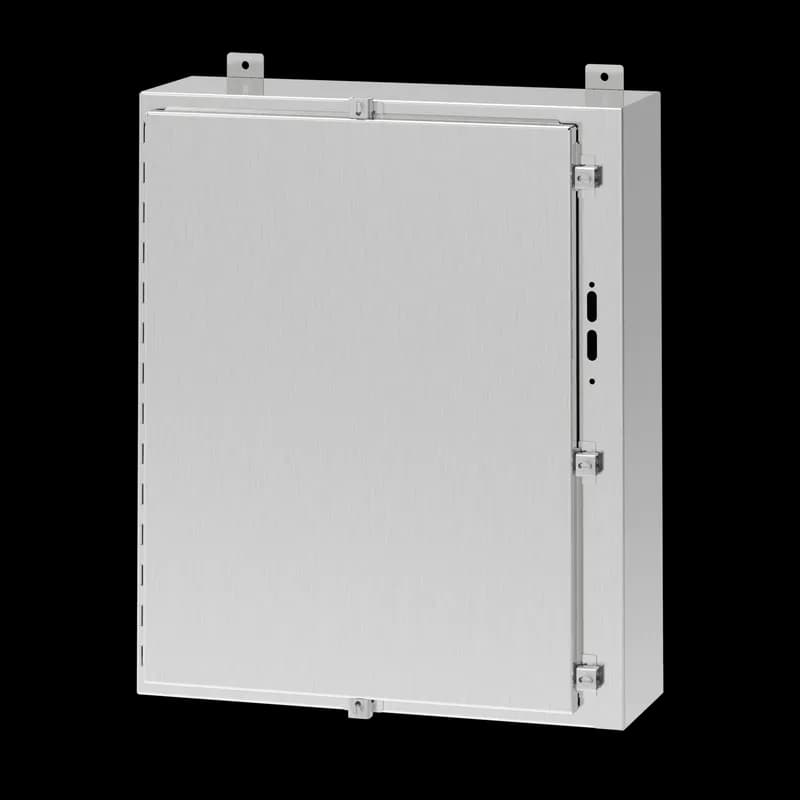

Overview
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom
- Slanted flange trough collar along the top edge of the enclosure opening
- Stainless steel quarter-turn latches with flush slotted insert
Specifications
Application | Arc Flash Safety;Controls and Drives;Corrosive Environments;Hygienic Environments |
Application | Controls and Drives; Corrosive Environments; Arc Flash Safety; Hygienic Environments |
Color | Unpainted |
Color | Brushed |
Conductive Panel | A48P36G |
Depth | 16 IN |
Depth | 406 mm |
Finish | Brushed #4 |
Height | 1,219 mm |
Height | 48 in |
Ip Rating | IP4X |
IP Rating | IP66 |
Latch Quantity | 5 |
Material | Stainless Steel 304 |
Material | SS304 |
Material | Stainless Steel;Stainless Steel 304 |
Modification Services | Yes |
Mounting Type | Wall-mount |
Mounting Type | Wallmount |
NEMA Rating | 4X Watertight, corrosion-resistant |
Nema Rating | Type 4X |
NEMA Rating | 4X |
Panel | A48P36 |
Product Family | WaterShed |
Protection Rating | NEMA Type 4X |
Series | WaterShed |
Size | 48.00x37.00x16.00 in |
Size | 48x37x16 |
Thickness | 51.40mm (2.024") |
Thickness | 1.98 mm |
Thickness | 14 ga |
Type | Stainless Steel Wall Mounted Industrial Disconnect Enclosures |
Type Number | Type 3R |
Weight | 179 lb |
Width | 37 |
Width | 940 |
Width | 940 mm |
Package Dimensions (L x W x H) | 64.75 IN x 39 IN x 18 IN |
Package Dimensions (L x W x H) | 164.465 cm x 99.06 cm x 45.72 cm |
Package Weight (Imperial) | 179.000 L |
Package Weight (Metric) | 81.194 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the WS303008SS Wall-Mount Enclosure
This guide provides step-by-step instructions for securely mounting and sealing the WS303008SS wall-mount enclosure.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Sealant applicator
Supplies needed:
3/8 inch or M8 fasteners, Flat washers, Nuts, Sealing washers, Silicone rubber sealant
- Prepare the mounting surface
Ensure the surface where the enclosure will be mounted is clean, flat, and free of obstructions.
- Mount the enclosure
Align the enclosure with the mounting holes and secure it to the wall using customer-supplied 3/8 inch or M8 fasteners, flat washers, and nuts.
- Install sealing washers
Place the provided sealing washers inside the enclosure with the rubber face against the enclosure to ensure proper sealing.
- Seal the perimeter
To maintain NSF certification, apply silicone rubber sealant around the perimeter between the enclosure back and the mounting surface.
- Verify installation
Check that all fasteners are tightened securely and that the enclosure is level and stable.
