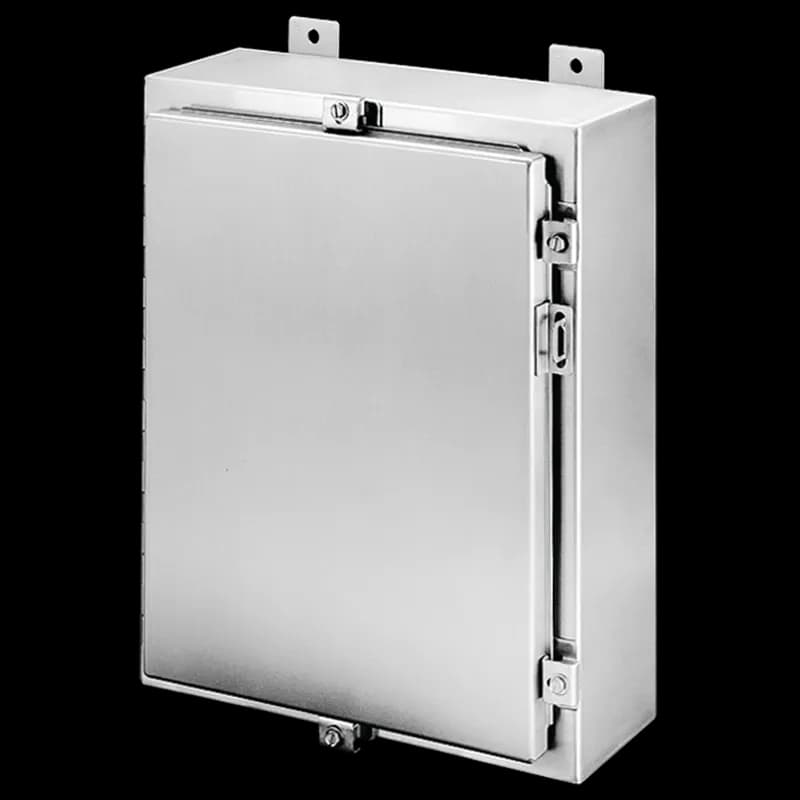

Overview
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
Specifications
Application | Corrosive Environments; Hygienic Environments; Controls and Drives |
Application | Controls and Drives;Corrosive Environments;Hygienic Environments |
Color | Unpainted |
Color | Brushed |
Conductive Panel | A20P20G |
Depth | 203 mm |
Depth | 8 mm |
Finish | Brushed #4 |
Height | 20 mm |
Height | 508 mm |
Ip Rating | IP66/IP67 |
IP Rating | IP66 |
Latch Quantity | 2 |
Material | Stainless Steel 304 |
Material | SS 304 |
Material | Stainless Steel;Stainless Steel 304 |
Modification Services | Yes |
Mounting Type | Wallmount |
NEMA Rating | 4X Watertight, corrosion-resistant |
NEMA Rating | 4X |
Nema Rating | Type 4X |
Panel | A20P20 |
Product Family | WaterShed |
Protection Rating | NEMA Type 12 |
Series | WaterShed |
Size | 20.00x20.00x8.00 in |
Size | 20x20x8 |
Stainless Steel Panel | A20P20SS6 |
Thickness | 14 ga |
Thickness | 51.40mm (2.024") |
Type | Hazardous Location Enclosures |
Type | Stainless Steel Wall Mounted Industrial Enclosures |
Type Number | Type 3R |
Weight | 41 lb |
Width | 508 mm |
Width | 20 IN |
Package Dimensions (L x W x H) | 29 IN x 21.5 IN x 10.5 IN |
Package Dimensions (L x W x H) | 73.66 cm x 54.61 cm x 26.67 cm |
Package Weight (Imperial) | 41.000 L |
Package Weight (Metric) | 18.598 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the Wall-Mount Enclosure
This guide provides step-by-step instructions for securely mounting and sealing a wall-mount enclosure to ensure safety and compliance.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Sealant applicator
Supplies needed:
3/8 inch or M8 fasteners, Flat washers, Nuts, Sealing washers, Silicon rubber sealant
- Prepare the mounting surface
Ensure the surface where the enclosure will be mounted is clean, flat, and free of debris to allow for proper sealing and attachment.
- Attach the enclosure
Using customer-supplied 3/8 inch or M8 fasteners, secure the enclosure to the wall or structure through the provided mounting holes. Use flat washers and nuts to ensure a tight fit.
- Install sealing washers
Place the provided sealing washers inside the enclosure with the rubber face against the enclosure to maintain proper sealing and protection rating.
- Seal the perimeter
To maintain NSF certification, apply silicon rubber sealant around the perimeter between the enclosure back and the mounting surface to prevent water ingress.
- Verify installation
Check that all fasteners are securely tightened and that the enclosure is level. Ensure that the door opens and closes properly without obstruction.
