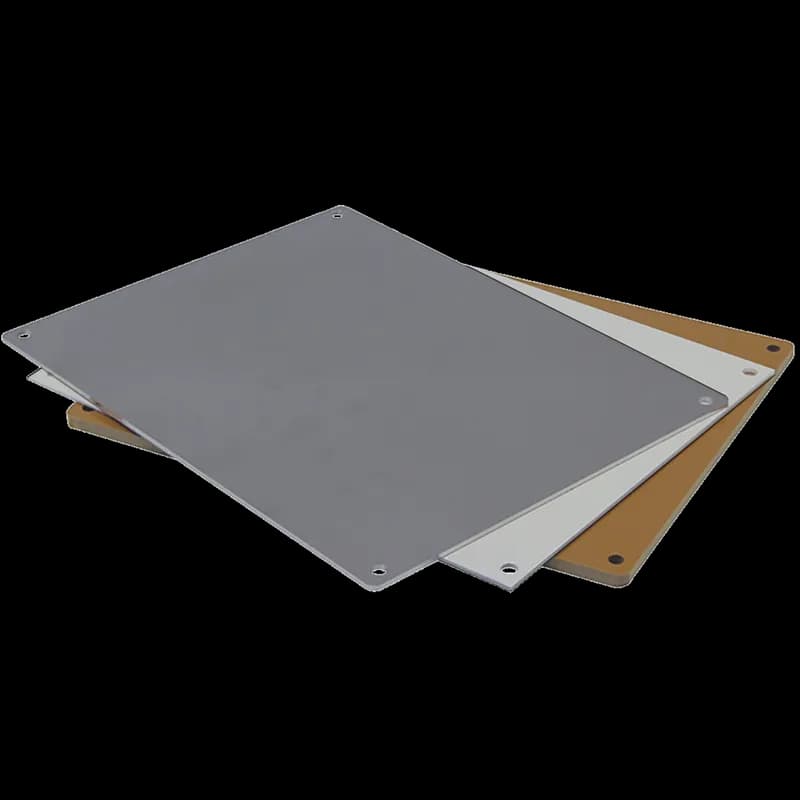

nVent VFPH3024A-KIT VJ Series Front Plate, 30x24x0.08, Unpainted, Aluminum, Kit
UPC: 635394594707
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Allows convenient component mounting toward the front of VJ enclosures
- Designed for nVent VJ Series enclosures
- Includes mounting hardware for easy installation
- Durable aluminum construction
- Suitable for mounting control components
Specifications
Application | Corrosive Environments; Controls and Drives |
Application | Controls and Drives;Corrosive Environments |
Depth | 13 IN |
Depth | 10 mm |
Depth | 0.38 in |
Finish | Mill |
Height | 30 IN |
Height | 762 mm |
Material | Aluminum |
Material | aluminium |
Thickness | 51.40mm (2.024") |
Thickness | 2 mm |
Thickness | 0.08 in |
Type | Industrial Panels and Panel Accessories |
Weight | 3 lb |
Width | 609 mm |
Width | 24 IN |
Works With | NEMA |
AB643DW
General Electric Lighting panelboards. Factory assembled panelboards. 3R/12 - 30"W 10.5"D 64.5"H.
How to Install the VFPH3024A-KIT Enclosure
Guide for mounting and preparing the VFPH3024A-KIT enclosure for use. Ensure proper installation for optimal performance and safety.
Estimated time: 30m
Tools needed:
Screwdriver, Drill (if mounting holes are not pre-drilled), Level
Supplies needed:
Mounting screws, Wire connectors, Air vents (if not included)
- Select Mounting Location
Choose a suitable location for the VFPH3024A-KIT enclosure. Consider environmental factors and accessibility for maintenance. Ensure the mounting surface is stable and can support the weight of the enclosure and its contents. Refer to the datasheet for specific environmental ratings and limitations.
- Prepare the Enclosure
If required, install air vents for proper circulation. Two air vents should be installed, ideally in the upper and lower parts of the enclosure, to prevent condensation. Refer to the specific part number for air vent installation instructions and required hardware.
- Mount the Enclosure
Securely mount the VFPH3024A-KIT enclosure to the chosen surface using appropriate mounting screws. Ensure the enclosure is level and firmly attached. For enclosures with molded mounting flanges, align these with the mounting surface and fasten securely. Verify that the enclosure meets the required NEMA/EEMAC or IP ratings for the intended environment.
- Wiring and Connections
Open the enclosure and proceed with internal wiring and connections as per your application requirements. Ensure all electrical connections are made in accordance with local codes and standards. For specific wiring details or internal component compatibility, consult the product's datasheet.
- Final Inspection and Closure
After completing all internal installations and wiring, perform a final inspection to ensure all components are securely fastened and all connections are correct. Close and secure the enclosure cover, ensuring the gasket provides a proper seal. Verify that all latches or screws are tightened appropriately.
