Contact for Pricing

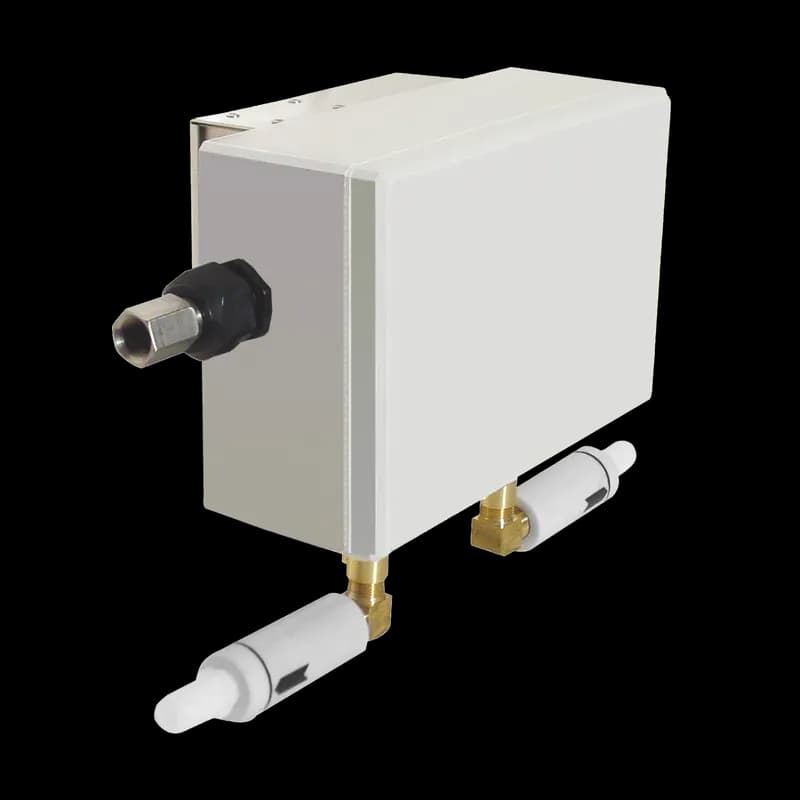

Overview
- Quieter operation with noise level of 60-75 dB
- Top, side, and front mount allows for versatile installation in confined areas
- Operates in environments up to 175 F (80 C)
- Cooling capacities up to 5000 BTU/Hr. (1465 W)
- Mechanical thermostat reduces energy consumption
- NEMA Type 4,4X models are polycarbonate and stainless steel exterior; aluminum and brass internal components
- NEMA Type 12 models are polycarbonate and aluminum exterior; aluminum and brass internal components
- Supplied with five-micron, automatic drain compressed air filter, cold ducting kit, and cold air muffler
Specifications
Application | Controls and Drives;Power Distribution |
Application | Power Distribution; Controls and Drives |
Color | Gray |
Color | Light Gray |
Color Code | RAL 7035 |
Depth | 137 mm |
Depth | 5.38 in |
Finish | Smooth Matte |
Height | 203 mm |
Height | 8 IN |
Material | Polycarbonate |
Nema Rating | NEMA 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Nominal Capacity Btu/h | 900 Btu/h |
Nominal Capacity Watts | 264 W |
Protection Rating | NEMA Type 12 |
Size | 900 BTU |
Type | Vortex Coolers |
Weight | 2.22 kg |
Weight | 5.7 lb |
Width | 121 mm |
Width | 4.75 IN |
Package Dimensions (L x W x H) | 12.5 IN x 12.4 IN x 8.7 IN |
Package Dimensions (L x W x H) | 31.75 cm x 31.496 cm x 22.098 cm |
Package Weight (Imperial) | 5.700 L |
Package Weight (Metric) | 2.586 kg |
How to Install the Vortex A/C Model VA0916012
This guide provides step-by-step instructions for installing the Vortex A/C Model VA0916012 on a UL Type 12 enclosure, ensuring proper cooling for industrial control cabinets.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Drill, Wire strippers
Supplies needed:
Mounting screws, Vinyl tubing, Muffler Mounting Clamp, Self-adhesive tubing clips, Compressed air filter (model VAAF15 or VAAF25)
- Position the Vortex A/C
Select a suitable location on the top or side of the enclosure, ensuring sufficient clearance for the thermostat and cold air outlet. The entire mounting footprint must be supported.
- Cut the mounting hole
Drill a 1-15/16” (49 mm) diameter hole in the selected location on the enclosure. Deburr any sharp edges around this hole to prevent damage.
- Secure the Vortex A/C
Insert the threaded portion of the Vortex A/C into the hole and secure it with the 1-1/2” electrical locknut from inside the enclosure. Tighten the locknut to compress the sealing gasket.
- Install the Cold Air Muffler
Determine a location for the Cold Air Muffler inside the enclosure, clean the surface, and attach the Muffler Mounting Clamp using double-sided tape or screws.
- Connect the cold air tubing
Cut a length of the supplied vinyl tubing to connect the cold air outlet of the Vortex A/C to the Cold Air Muffler. Ensure the tubing is free of sharp bends and kinks.

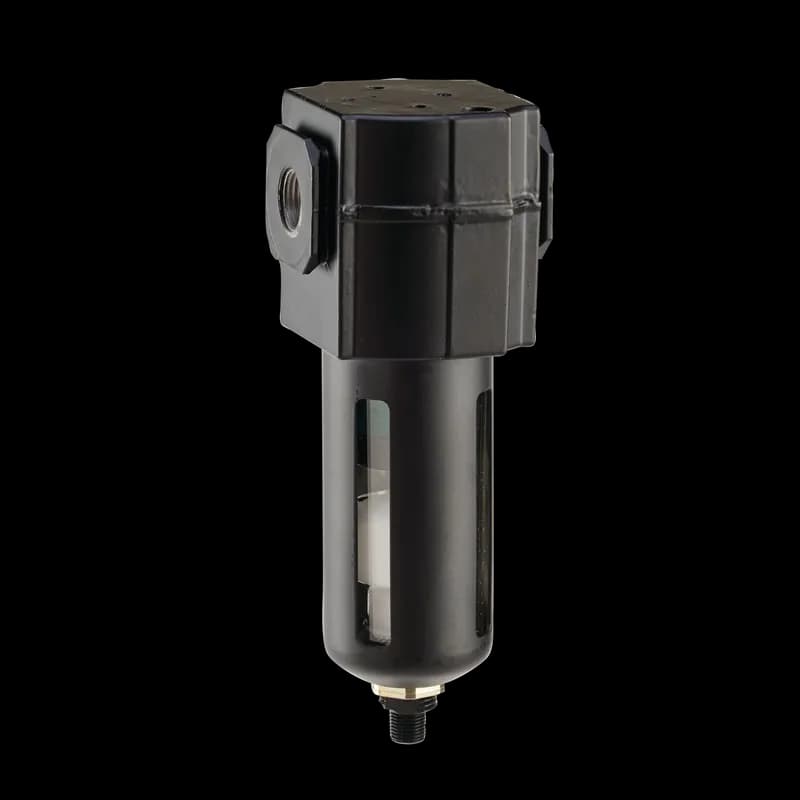

- Attach the compressed air filter
Connect the compressed air filter to the compressed air inlet on the Vortex A/C using a length of 3/8” pipe. Ensure the filter is positioned where the temperature does not exceed 125°F (52°C).
- Connect the compressed air supply
Attach the compressed air supply to the inlet of the air filter, ensuring that the air flow direction is correct as indicated on the filter.
- Verify installation
Check all connections for leaks and ensure that the Vortex A/C is securely mounted. Confirm that the cold air outlet is unobstructed.
