Contact for Pricing
Overview
- For use with Ultrx Series Products
- Constructed from plated steel for corrosion resistance.
- Mounts directly onto the integrally molded body rail.
- Allows for adjustable panel positioning from front to rear.
- Includes all necessary mounting hardware for straightforward installation.
- Includes all necessary mounting hardware.
Specifications
Application | Controls and Drives;Corrosive Environments |
Color | Unpainted |
Finish | Zinc Plated |
Material | Steel |
Material | Plated Steel |
Material | Mild Steel;Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting Type | Panel Mount |
Mounting Type | Body rail mounting |
Product Family | Ultrx |
Series | ULTRX |
Thickness | 12 ga |
Thickness | 2.66 mm |
Thickness | 51.40mm (2.024") |
Type | Networking Accessories |
Weight | 1.66 lb |
Package Dimensions (L x W x H) | 11 IN x 9.4 IN x 1.7 IN |
Package Dimensions (L x W x H) | 27.94 cm x 23.876 cm x 4.318 cm |
Package Weight (Imperial) | 1.660 L |
Package Weight (Metric) | 0.753 kg |
ARK12105CHFSSLM
ARCA JIC 12 x 10 x 5 with knockouts, hinged flat opaque cover, SS latch, padlockable, SS mounting feet
FBO234DS

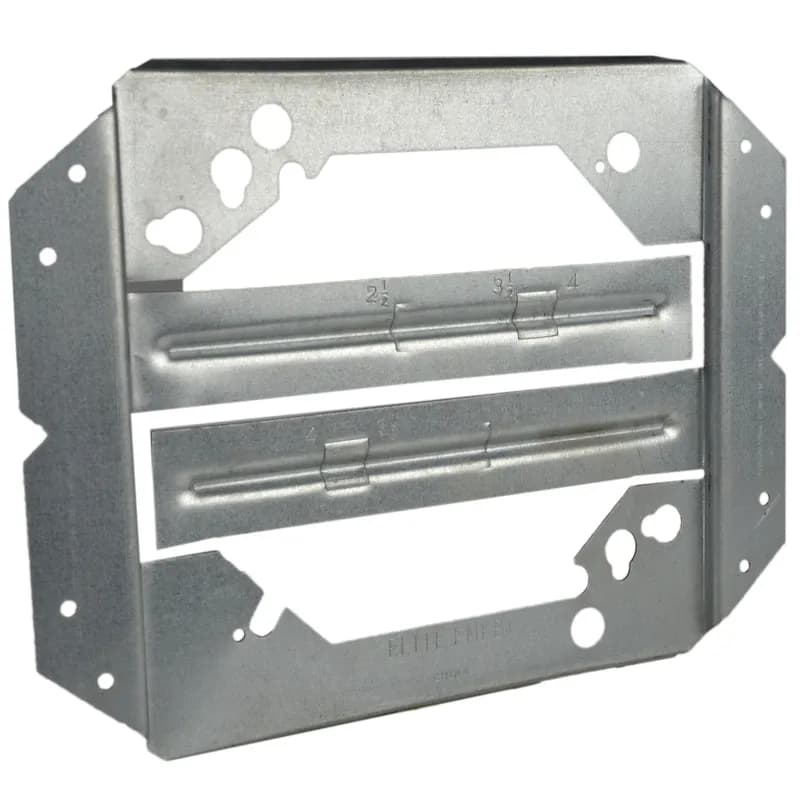

Double sided electrical box mounting bracket for mounting to either side of a stud. It is made of pre galvanized steel with a stamped construction and silver color. Dimensions are 5 in. height, 6-7/8 in. width, and 3/8 in. depth. It is for use with 1-1/2 in. or 2-1/8 in. deep electrical boxes and 4 in. or 4-11/16 in. square boxes, with 2-1/2, 3-1/2, or 4 in. stud depth.
