Contact for Pricing
Overview

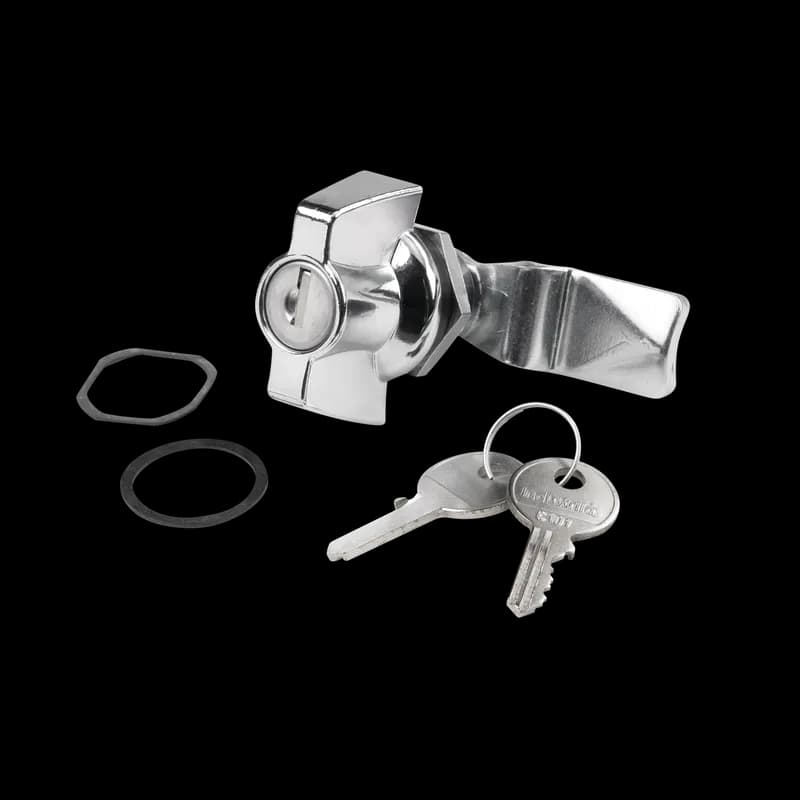

- For use with Ultrx Series Products
- Constructed from polished 316 stainless steel for superior corrosion resistance.
- Features a 3mm double bit key mechanism for tamper-resistant access.
- Ideal for harsh industrial environments, marine, and outdoor applications.
- Manufactured in the USA by nVent for trusted quality and reliability.
Specifications
Application | Controls and Drives;Corrosive Environments |
Application | Corrosive Environments; Controls and Drives |
Color | Unpainted |
Color | Polished |
Finish | Polished |
Insert Type | Double-bit 3 mm |
Key Type | Double-bit 3 mm |
Material | Stainless Steel 316L |
Material | Stainless Steel;Stainless Steel 316L |
Material | Stainless Steel 316 |
Modification Services | Yes |
Mounting Type | Replaces standard quarter-turn latches |
Product Family | Ultrx |
Series | ULTRX |
Size | 3mm Double Bit |
Type | Industrial Door Mounting and Locks |
Weight | 0.3 lb |
Works With | NEMA |
Package Dimensions (L x W x H) | 7.4 IN x 5 IN x 0.5 IN |
Package Dimensions (L x W x H) | 18.796 cm x 12.7 cm x 1.27 cm |
Package Weight (Imperial) | 0.300 L |
Package Weight (Metric) | 0.136 kg |
How to Install the UUL3DB Controller
This guide provides step-by-step instructions for installing and configuring the UUL3DB Controller, ensuring proper wiring and initial setup.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire connectors, Grounding device
- Mount the controller
Secure the UUL3DB controller to the designated mounting surface using the provided mounting screws. Ensure that the controller is level and firmly attached.
- Connect the wiring
Use wire connectors to connect the power supply wires to the controller terminals. Ensure that all connections are tight and secure to prevent any electrical issues.
- Ground the controller
Attach the grounding device to the designated grounding point on the controller. Ensure that the grounding connection is secure to prevent electrical hazards.
- Configure the controller settings
Power on the controller and use the configuration interface to set the desired operational parameters. Refer to the user manual for specific configuration options.
- Calibrate the controller
Follow the calibration procedure outlined in the user manual to ensure the controller operates within the specified parameters. Verify calibration using a multimeter.
