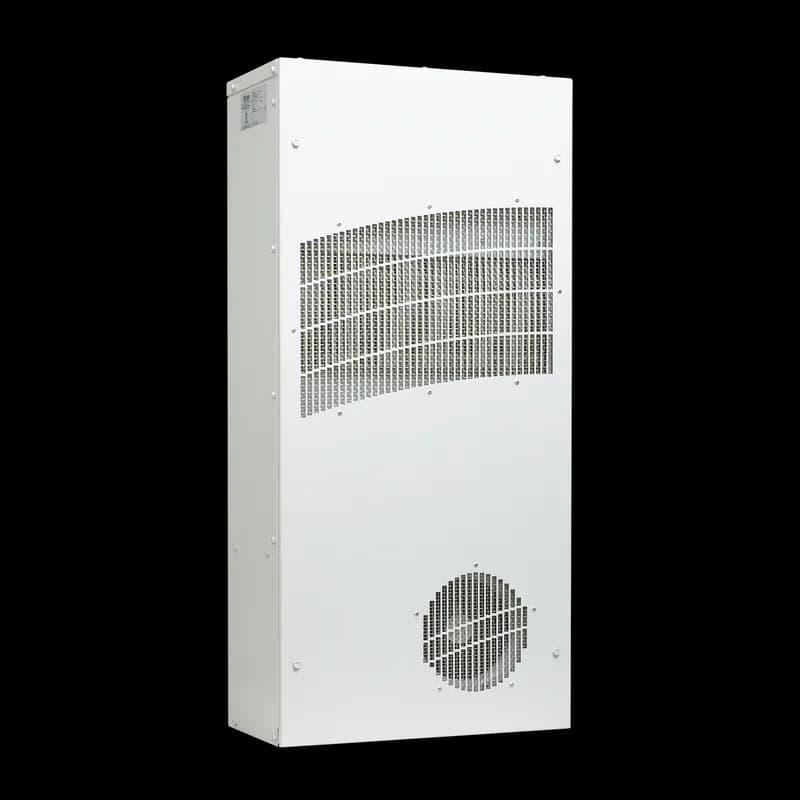

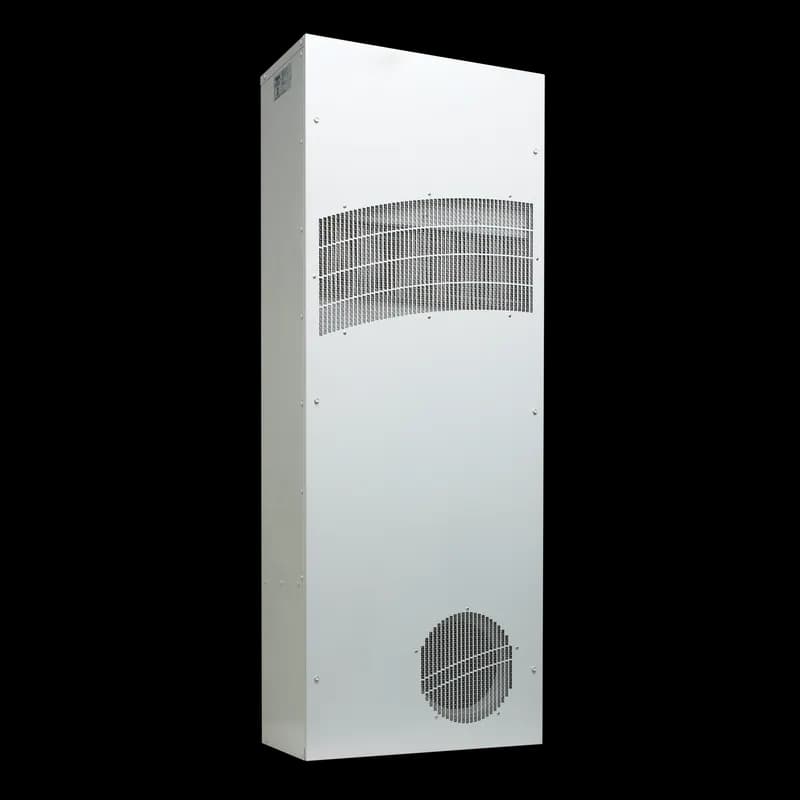

nVent TX332848100 ClimaGuard Air-to-Air Heat Exchanger Outdoor, X33 28w/F 48v
UPC: 783510188559
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Engineered for temperature extremes, corrosive environments and wind driven rain
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Application | Power Distribution; Controls and Drives |
Capacity Watts Per degr.C | 50 W |
Capacity Watts Per degr.F | 28 W |
Color | Light Gray |
Color Code | RAL 7035 |
Depth | 206 mm |
Depth | 8.1 in |
Dimensions | 33 x 15.7 x 8.1 in |
Finish | Powder Coated |
Height | 33 in |
Height | 838 mm |
Housing Material | Mild Steel |
Material | Mild Steel |
Max Current | 1.8 A |
Max Watts Per °F | 28 W |
Max Watts Per degr.C | 50 W |
Max Watts Per degr.F | 28 W |
Mechanical Advantage | Mild steel sheet metal standard |
Mounting | Surface Mounted |
NEMA Rating | 4 Watertight |
Nominal Voltage | 48 V |
Operating Temperature | -40-65 °C |
Operating Temperature | -20-65 °C |
Operating Temperature | -4-149 °F |
Power Consumption | 28 W per deg F max |
Product Family | ClimaGuard |
Protection Rating | NEMA Type 4 |
Temperature Range | -40 to 149 deg F |
Thickness | 18 ga |
Thickness | 1.21 mm |
Type | Heat Exchangers |
Voltage DC | 48-48 V |
Weight | 20.4 kg |
Weight | 52 lb |
Width | 15.7 in |
Width | 399 mm |
Package Dimensions (L x W x H) | 33.5 IN x 17.5 IN x 10.5 IN |
Package Dimensions (L x W x H) | 85.09 cm x 44.45 cm x 26.67 cm |
Package Weight (Imperial) | 52.000 L |
Package Weight (Metric) | 23.587 kg |
XR291816107
HEAT EXCH, W/ADOTR NO HEAT, Bulletin MCLHE (Heat exchangers - XR29-1816), Size/Dims: 2.00x2.00x2.00, Material: , Finish:TX385648001
HEAT EXCH, TX38-5648-001, Bulletin MCLHE (Heat exchangers - TX38-5648), Size/Dims: 2.00x2.00x2.00, Material: Steel, Finish: GrayXR605526101
Heat Exchanger 230v 50/60Hz, Bulletin MCLHE (Heat exchangers - XR60-5526 --H), Size/Dims: 59.66x15.24x5.92, Material: Stainless SteelTX332848107
The nVent TX332848107 represents a critical component within industrial electrical infrastructure, designed and manufactured by nVent, a globally recognized leader in electrical connection and protection solutions. While specific catalog details are not provided, the UNSPSC code 40101802 categorizes this product under 'Electrical Power Distribution Equipment,' suggesting its role in managing, distributing, or protecting electrical power within commercial and industrial settings. nVent is renowned for its commitment to quality, innovation, and reliability, making their products a trusted choice for demanding applications where safety and performance are paramount. Industrial electrical components like the TX332848107 are fundamental to the operation of a vast array of industries, including manufacturing, data centers, oil and gas, renewable energy, and transportation. These components are engineered to withstand harsh environmental conditions, such as extreme temperatures, moisture, dust, and corrosive elements, ensuring continuous and safe power delivery. The selection of such a component typically involves careful consideration of voltage ratings, current capacity, enclosure type, environmental protection (IP ratings), and compliance with relevant industry standards and certifications. Professionals in electrical engineering and maintenance rely on nVent products for their robust construction and dependable performance. The TX332848107, as part of nVent's extensive portfolio, likely contributes to the integrity of electrical systems by providing essential functionality such as power distribution, surge protection, circuit interruption, or connection management. The absence of specific catalog data necessitates a broader understanding of its potential applications based on its classification. For instance, it could be an integral part of a switchgear assembly, a control panel, a power distribution unit, or a specialized enclosure system. The manufacturer's reputation for engineering excellence ensures that even without granular details, the TX332848107 is built to meet rigorous industrial demands. When specifying or installing components like the nVent TX332848107, factors such as ease of installation, maintenance accessibility, and long-term operational efficiency are often key considerations. nVent's product design philosophy typically emphasizes these aspects, aiming to reduce downtime and operational costs for end-users. The SKU TX332848107 serves as a unique identifier for this specific nVent product, facilitating precise ordering and inventory management within complex industrial supply chains. Investing in high-quality electrical components from reputable manufacturers like nVent is a strategic decision that underpins the reliability and safety of critical industrial operations.Frequently Asked Questions
What is the heat dissipation capacity of the TX332848100?
The TX332848100 provides 28 W/°F (50 W/°C) of heat dissipation at 60 Hz.
What is the operating temperature range?
The unit operates reliably from -40°F to 149°F (-40°C to 65°C).
What enclosure ratings does the TX332848100 have?
It has IP66/IP67 ratings and NEMA Type 12/3R/4 (Type 4X optional).
What is the airflow capacity at 60 Hz?
Internal loop airflow is 228 CFM (387 m³/hr) and external loop is 166 CFM (282 m³/hr) at 60 Hz.
What is the noise level of the TX332848100?
The noise level is 56 dBA at 1.5 meters.
What is the power input requirement?
The unit requires a 48V DC power supply.
What is the refrigerant used in the TX332848100?
The TX332848100 does not use refrigerant as it is an air-to-air heat exchanger.
How to Install the TX Heat Exchanger
This guide provides step-by-step instructions for installing the TX heat exchanger, ensuring proper mounting, wiring, and initial setup.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Gasket kit, Power cord
- Inspect the heat exchanger
Check for any visible damage that may have occurred during shipment. Ensure all components are intact before proceeding.
- Prepare the mounting area
Determine if the heat exchanger will be surface or recess mounted. Use the provided cutout dimensions to prepare the enclosure opening accordingly.
- Install gaskets
Using the gasket kit provided, install the gaskets to the heat exchanger to ensure a proper seal.
- Mount the heat exchanger
Secure the heat exchanger to the enclosure using the mounting screws provided. Torque the screws to 25 in-lbs (2.82 Nm) for a secure fit.
- Connect power supply
Refer to the unit nameplate for electrical requirements. Connect the power cord to a properly grounded power supply, ensuring no other equipment is connected to this circuit.
- Test functionality
Turn on the power to the unit and operate the heat exchanger for several minutes. Listen for any excessive noise or vibration, which may indicate a problem.
