Overview
- Grounding provisions
- Hub opening at top with cover
- Provisions for padlocking or seal

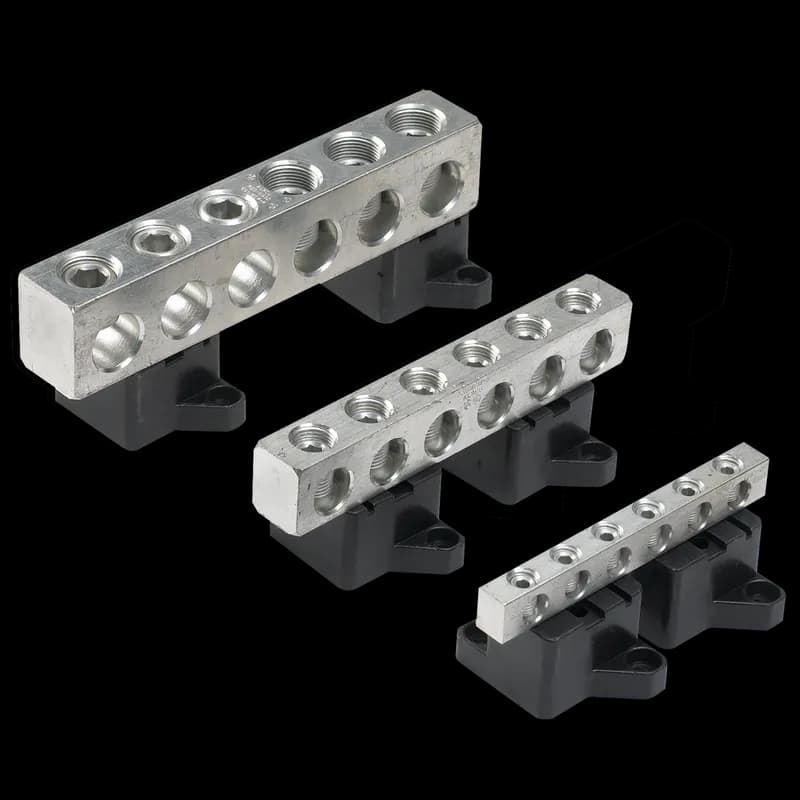

- Distribution lugs installed (see table for sizes)
- Knockouts on bottom of enclosure
- Removable cover
- Drip-shield top and seam-free sides, front and back
- Terminal Boxes are finished with paint over plated surfaces
Specifications
Amps | 100 A |
Application | Power Distribution |
Bar Quantity | 4 |
Color | Gray |
Color Code | ANSI 61 |
Current | 100-100 A |
Current Rating | 100 A |
Depth | 13 IN |
Depth | 4.5 |
Depth | 114 |
Finish | Galvanized |
Height | 44 IN |
Height | 18 |
Height | 457 |
IP Rating | IP32 |
Material | Mild Steel;Steel |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
NEMA Rating | Type 3R |
NEMA Rating | 3R Weather-resistant, except dust |
NEMA Rating | 3r |
Number of Phases | 3 Ph |
Phase | 3Ø Ph |
Poles | 3PH |
Protection Rating | NEMA Type 3R |
Size | 18.00x10.75x4.50 |
Size | 18.00x8.00x4.50 in |
Thickness | 1.52 mm |
Thickness | 16 ga |
Thickness | 51.40mm (2.024") |
Type | Utility / Canadian Cabinets and Splitters |
Type | Utility Cabinets |
Type Number | Type 3R |
Voltage AC | 120 V |
Voltage AC | 120/240 V |
Voltage Rating | 240 V |
Weight | 15.8 lb |
Width | 10.75 |
Width | 273 |
Width | 23 IN |
Wire Range | (6) #14-2/0 kcmil |
Wire Size | (6) #14 - 2/0 |
Package Dimensions (L x W x H) | 19 IN x 12.9 IN x 6.9 IN |
Package Dimensions (L x W x H) | 48.26 cm x 32.766 cm x 17.526 cm |
Package Weight (Imperial) | 15.800 L |
Package Weight (Metric) | 7.167 kg |
How to Install the TBL200 Terminal Box
This guide provides step-by-step instructions for installing and wiring the TBL200 Terminal Box for commercial and industrial applications.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the terminal box
Secure the TBL200 Terminal Box to a suitable surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the grounding wire
Attach the grounding wire to the grounding provision inside the terminal box to ensure proper grounding. Use a multimeter to verify the connection.
- Wire the branch circuits
Connect the feeder wires to the distribution lugs inside the terminal box. Ensure that the wire connections are tight and secure.
- Install the removable cover
Place the removable cover back onto the terminal box and secure it properly to protect the internal components.
- Verify the installation
Use a multimeter to check the voltage at the output terminals to ensure proper installation and functionality.
