Overview

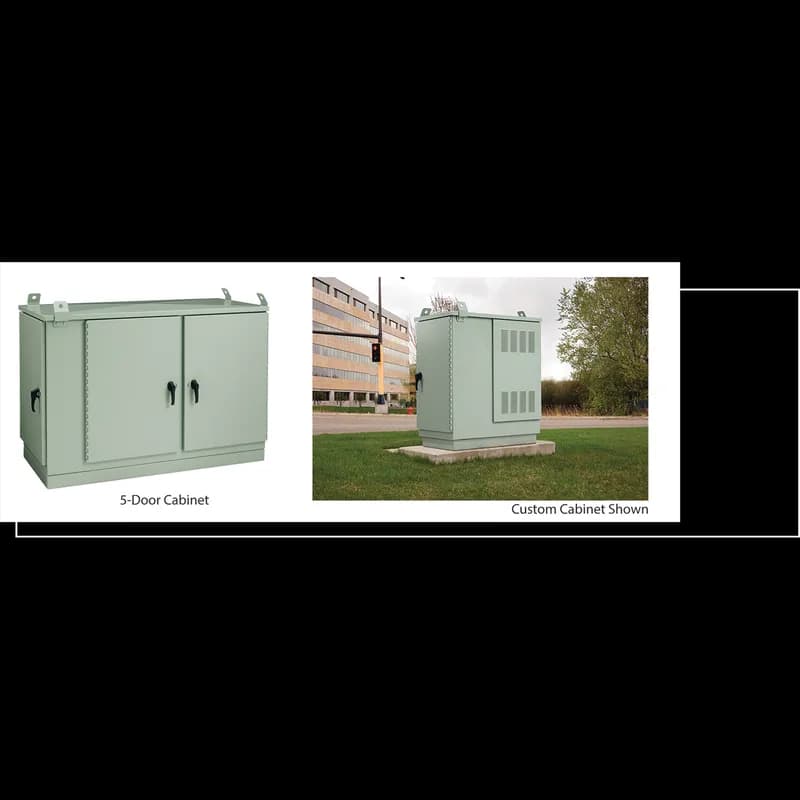

- Offered with three or five doors mounted for front, rear and side access to equipment
- Five-door model has two equal compartments and one side compartment
- Side compartment is ideal for cable entry, power distribution and load center
- Copper bonding bars included with cabinet
- Rack angles have EIA universal spaced square holes and are infinitely adjustable front-to-back in compartment
- Rack angles are predrilled for bend radius spools
- Each compartment is capable of either 19- or 23-inch rack angle positioning
- Top has integral solar shield with formed angles providing a peaked roof to deflect rain water to the sides of the cabinet
- L-handle is padlockable
- Bottom holes provided for bolting cabinet to concrete pad
Specifications
Application | Datacom and Telecom Equipment |
Color | Light Gray |
Color | Gray |
Color | Grey |
Color Code | RAL 7035 |
Depth | 762 mm |
Depth | 30 |
Depth | 762 |
Finish | Powder Coated |
Finish | Lt Gray;Powder Coating |
Height | 1,232 mm |
Height | 48.5 |
Height | 1,232 |
IP Rating | IP66 |
Material | Aluminum |
Modification Services | No |
Mounting Type | Pad-mount |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Nema Rating | Type 3, 3R, 4, 4X, 12 |
Protection Rating | NEMA Type 12 |
Rack Units Per Bay | 22 |
Series | OPAL |
Size | 48.50x73.54x30.00 |
Thickness | 0.125 |
Thickness | 3 |
Thickness | 3 mm |
Type | Data Networking Freestanding Cabinets |
Type Number | Type 3R |
Weight | 408 lb |
Width | 73.54 |
Width | 1,868 |
Width | 1,868 mm |
Package Dimensions (L x W x H) | 70 IN x 30 IN x 50 IN |
Package Dimensions (L x W x H) | 177.8 cm x 76.2 cm x 127 cm |
Package Weight (Imperial) | 408.000 L |
Package Weight (Metric) | 185.069 kg |
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
