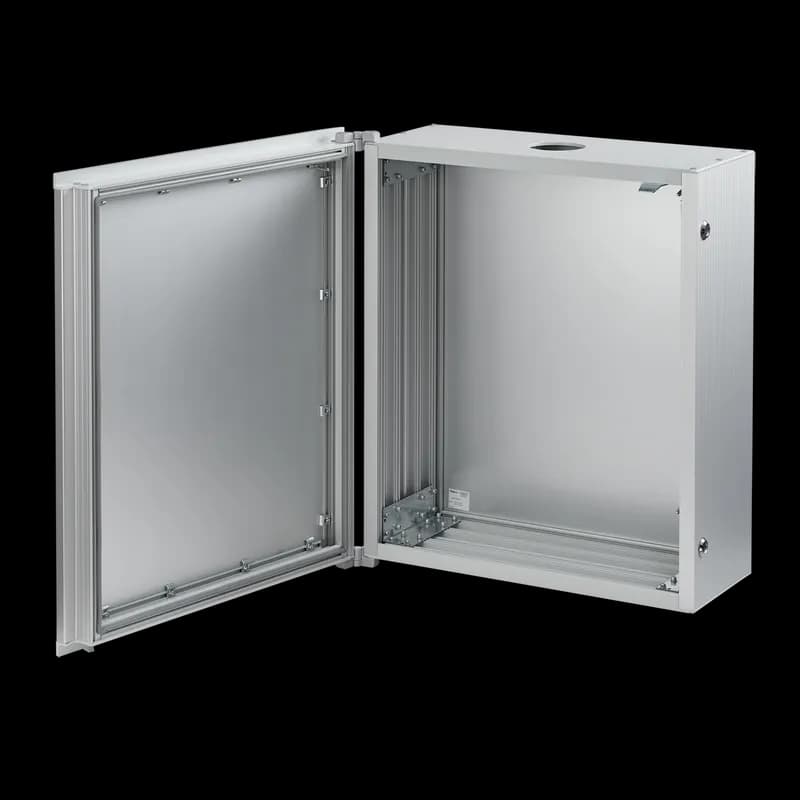

nVent SY252516A - Syspend Aluminum HMI Enclosure Type 12, 250x250x166, Lt Gray, Aluminum
nVent

SY252516A

UPC: 783510341015

Contact for Pricing

Overview

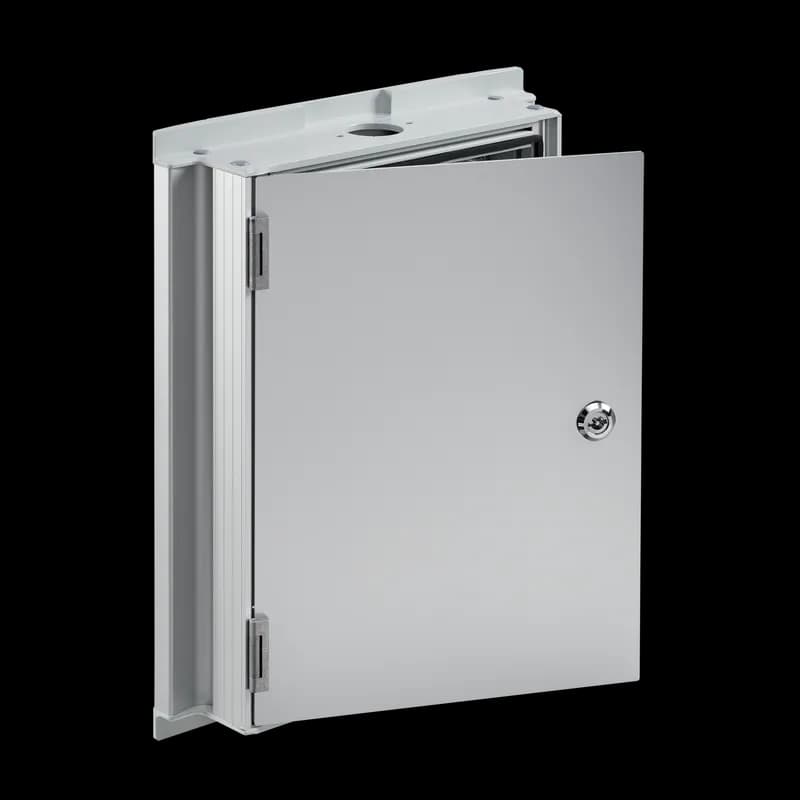

The nVent SYSPend Aluminum HMI Enclosure (SKU: SY252516A) is a Type 12-rated enclosure designed for industrial Human-Machine Interface (HMI) applications. Constructed from extruded single-walled aluminum with clear anodized vertical components and RAL 7035 light gray painted horizontal sections, this enclosure combines durability with modern aesthetics. Measuring 250mm (H) x 250mm (W) x 166mm (D) with a usable internal space of 250 x 250 x 166mm, it weighs 9.63 kg (21.23 lbs). The enclosure features integrated side handles for ergonomic handling and internal mounting channels compatible with brackets, spring nuts, or DIN rail for flexible component installation. Pre-cut mounting holes support support arm systems and enable pedestal mounting when inverted. Certified to UL 508A, cUL per CSA C22.2 No. 94, NEMA/EEMAC Type 12, and IEC 60529 IP65 standards, it provides reliable protection against dust, dirt, and oil. The oil-resistant gasket ensures contaminant resistance, while the anodized aluminum front plate is pre-installed for immediate compatibility with support arm systems. Ideal for manufacturing, automation, and process control environments.
  • Type 12/NEMA 12/IP65-rated enclosure for industrial HMI applications
  • Extruded single-walled aluminum construction with clear anodized front plate
  • Internal mounting channels for DIN rail, brackets, or spring nuts
  • Integrated side handles for ergonomic handling and modern aesthetics
  • Pre-cut mounting holes for support arm systems and pedestal mounting
  • Pre-cut mounting holes compatible with support arm systems; pedestal mounting when enclosure is inverted
  • Oil-resistant gasket attached with oil-resistant adhesive
  • Oil-resistant gasket attached with oil-resistant adhesive
  • Extrusions inside enclosure
  • Seamless integrated handles

Specifications

Application
Controls and Drives
Body Style
Hinged Door
Body Type
Hinged Door
Color
Unpainted
Depth
180 mm
Depth
7.09
Depth
180
Finish
Anodized
Height
361 mm
Height
14.21
Height
361
Material
Aluminum
Product Family
Syspend
Replacement Front Plate
SY2525AFP
System Compatibility
Compact Series 2, Syspend 180-Max, Syspend 281-Max
Thickness
2.5 mm
Thickness
12 ga
Type
HMI Enclosure Systems
Weight
9,630 g
Weight
20.8 lb
Width
14.76
Width
375
Width
375 mm
Package Dimensions (L x W x H)
21.9 IN x 16.4 IN x 10.8 IN
Package Dimensions (L x W x H)
55.626 cm x 41.656 cm x 27.432 cm
Package Weight (Imperial)
20.800 L
Package Weight (Metric)
9.435 kg
