Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview

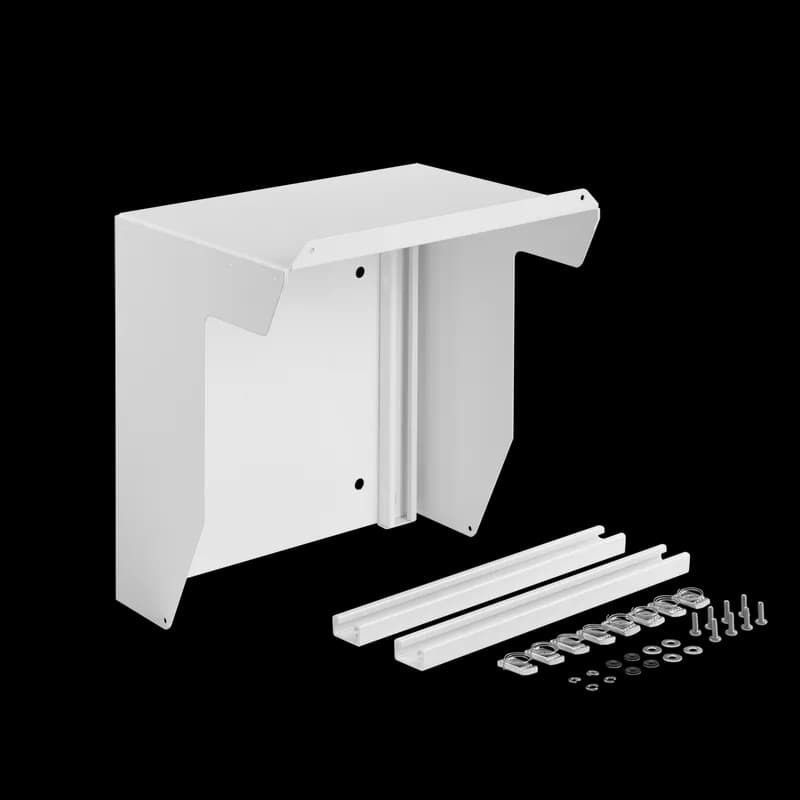

- Kit includes (8) 3/8-16 screws, (8) 3/8-16 clamping nuts, (4) 3/8 sealing washers, (4) 1/2-20 screws, (4) 1/4-20 clamping nuts, (4) 1/4-20 sealing washers, and (4) flat washers
- Includes (12) clamping nuts, (12) screws, (8) sealing washers, and (4) flat washers.
- Compatible with Hoffman wall-mount enclosures from 12" to 36" (305 mm to 914 mm).
- Compatible with Hoffman wall-mount enclosures from 12.00 in. to 36.00 in.
- Reduces enclosure temperature rise by up to 56% for optimal thermal management
- Quick and easy installation with step-by-step instructions provided
- Distributed by Gross Automation for reliable supply and support
- Ideal for industrial, commercial, and utility applications requiring weatherproofing
Specifications
Application | Controls and Drives |
Color | White |
Color | Unpainted |
Finish | Plated |
Material | Mild Steel |
Mounting Type | Wall-mount |
Nema Rating | Type 4 |
Nema Rating | Type 4, 4X, 12 |
Series | HDW |
Series | Wall-Mount Solar Shield |
Type | External Mounting for Industrial Enclosures |
Weight | 1.4 lb |
Works With | NEMA |
Package Dimensions (L x W x H) | 8 IN x 8 IN x 0.25 IN |
Package Dimensions (L x W x H) | 20.32 cm x 20.32 cm x 0.635 cm |
Package Weight (Imperial) | 1.400 L |
Package Weight (Metric) | 0.635 kg |
6011DW-25
Adjustable bar hanger. Depth 1-3/16 inch. For 3/8 inch, 1/2 inch and 5/8 inch wall board and plaster. Score marks for drywall and plaster depths. Maximum load capacity: 50 pounds (22.7 kilograms). Length: 10-1/2 inches to 18-1/2 inches. Packaged complete with fastener.
BST
This is a screwless electrical box mount for supporting an electrical box with drywall. It is made of pre-galvanized steel and has a stamped construction. The design is one-piece break-away and is intended to prevent box pullout. Listed dimensions include a trade size of 5.25 x 3.50 x 0.023 and leg length of 2.50 in with a leg width of 0.50 in.
TGL6
No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. EQUIPMENT GROUND KIT
P6063C
6x6x3 Polycarbonate Enclosure NEMA 6P | Standard Hinge | Clear Lid | Integrated Locking Latch | Intergrated Mounting FlangeHow to Install the SWHDK4 Enclosure
Installation guide for mounting and wiring the SWHDK4 enclosure. Refer to the nameplate or datasheet for specific model ratings, dimensions, and electrical values.
Estimated time: 1h
Tools needed:
Screwdriver, Drill, Level, Measuring tape, Wire strippers, Wire crimpers, Multimeter
Supplies needed:
Mounting hardware (screws, bolts, anchors), Wire connectors, Grounding lug, Sealing fittings (if applicable)
- Select Mounting Location
Choose a suitable location for the enclosure. Ensure the location is accessible, provides adequate space for wiring and maintenance, and is protected from environmental hazards. Verify that the mounting surface is strong enough to support the weight of the enclosure and its contents. Check the enclosure's nameplate or datasheet for any specific environmental or location restrictions.
- Prepare the Enclosure
If necessary, drill mounting holes in the enclosure back panel according to the selected mounting method (e.g., wall mount, pole mount). Install any required conduit hubs or sealing fittings. Ensure all unused openings are properly sealed.
- Mount the Enclosure
Securely mount the SWHDK4 enclosure to the chosen surface using appropriate mounting hardware. Use a level to ensure the enclosure is installed vertically or horizontally as required. Verify that the enclosure is firmly attached and stable.
- Install Internal Components (if applicable)
If the enclosure is to house internal components such as back panels, mounting plates, or sub-assemblies, install them now according to their specific instructions. Ensure all components are properly secured and aligned.
- Wire the Enclosure
Route external power and control wiring into the enclosure through the appropriate conduit or cable entries. Connect the wiring to the internal terminals or devices as per the wiring diagram. Ensure all connections are secure and properly insulated. Install grounding connections to the enclosure and any internal metallic components. Refer to the nameplate or datasheet for specific wiring requirements and conductor sizes. Verify all connections with a multimeter before energizing.
- Final Inspection and Sealing
Perform a final inspection of all installed components and wiring. Ensure all covers, doors, and conduit entries are properly sealed to maintain the enclosure's environmental rating (e.g., NEMA or IP rating). Close and secure the enclosure door.
