nVent SHM0608 - Monitor shelf, 600x800, Zinc plated
nVent

SHM0608

UPC: 783510586683

Contact for Pricing

Overview

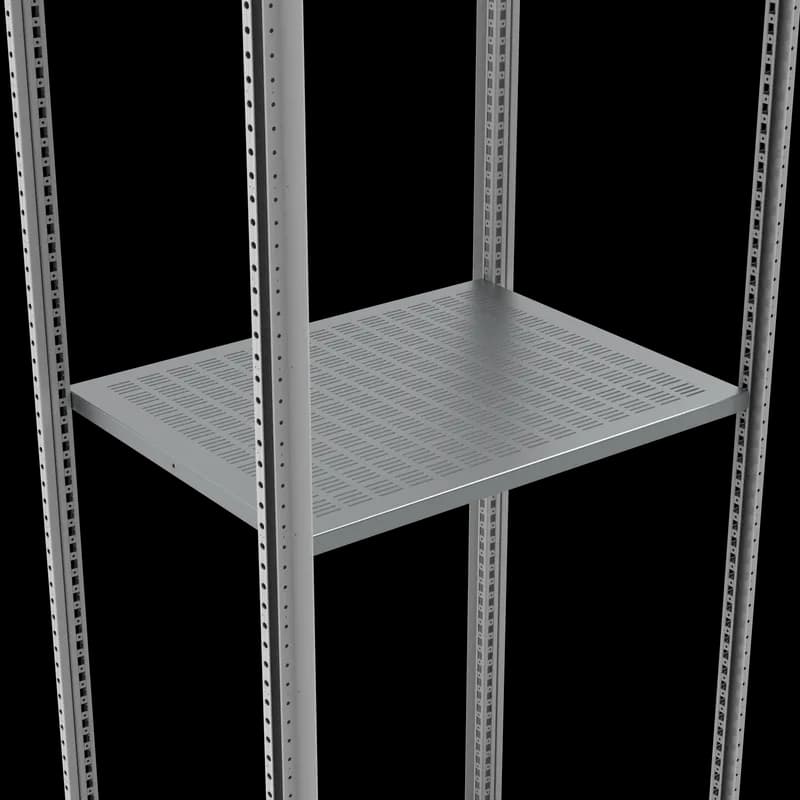

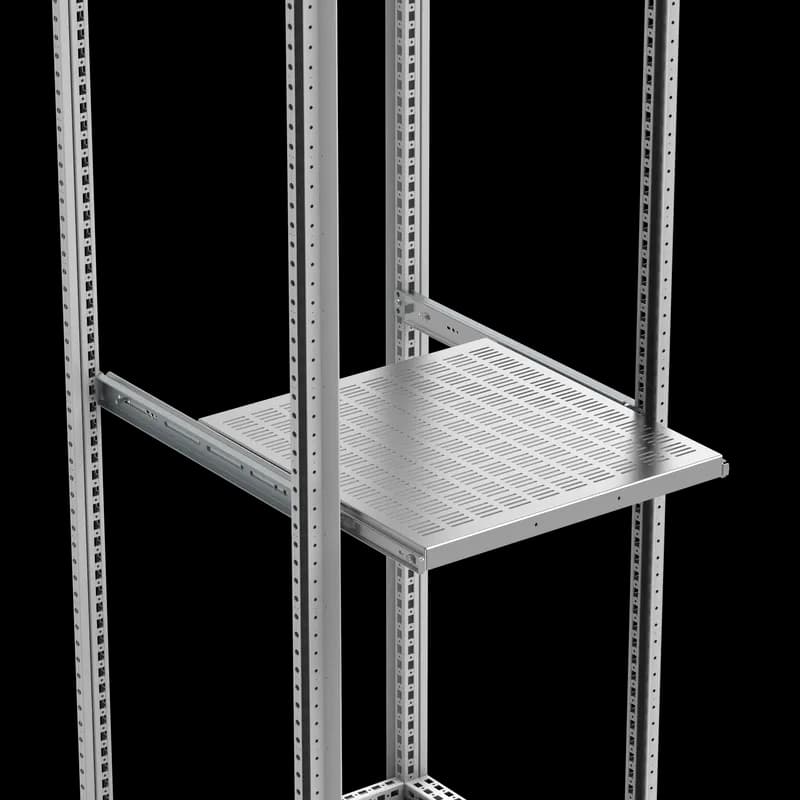

The nVent SHM0608 is a telescopic ventilated monitor shelf designed for secure mounting in industrial enclosures. This 600x800 mm shelf is constructed from 2 mm thick zinc-plated steel, offering robust support with a maximum load capacity of 500 N. It includes a pair of telescopic slides with mounting accessories for easy installation. The ventilated design promotes airflow, crucial for sensitive display equipment. Partial depth mounting is supported, and the shelf can be reversed or mounted sideways. For full or partial depth installation, SHTP profiles are required. Ideal for control panels, electrical cabinets, and workstations.
  • 600x800mm dimensions for ample equipment space
  • 2 mm thick zinc-plated steel construction for durability
  • 500 N maximum load capacity for secure equipment support
  • Telescopic slides for easy access and installation
  • Ventilated design promotes airflow for sensitive electronics
  • The shelf can be adjusted in height allowing a monitor to be securely mounted
  • The ventilation openings does not prevent the enclosure's air circulation which reduces the risk of potential hot spots
  • It is highly recommended to use a partial door system ensuring that a glazed door, DPM, is mounted in front of the monitor, ensuring that it is visible even when the door is closed
  • Mounting Plate Width (mm): 509
  • Max. enclosure useful depth (mm): SHM0606 - 555; SHM0608 - 755

Specifications

Material
Zinc-Plated Steel
Mounting Type
Telescopic slides, enclosure frame mounting
Series
nVent SHM
Size
600x800 mm
Package Dimensions (L x W x H)
2 IN x 2 IN x 2 IN
Package Dimensions (L x W x H)
5.08 cm x 5.08 cm x 5.08 cm
Package Weight (Imperial)
15.440 L
Package Weight (Metric)
7.004 kg
