Contact for Pricing
Overview
- Type 304 polished stainless steel

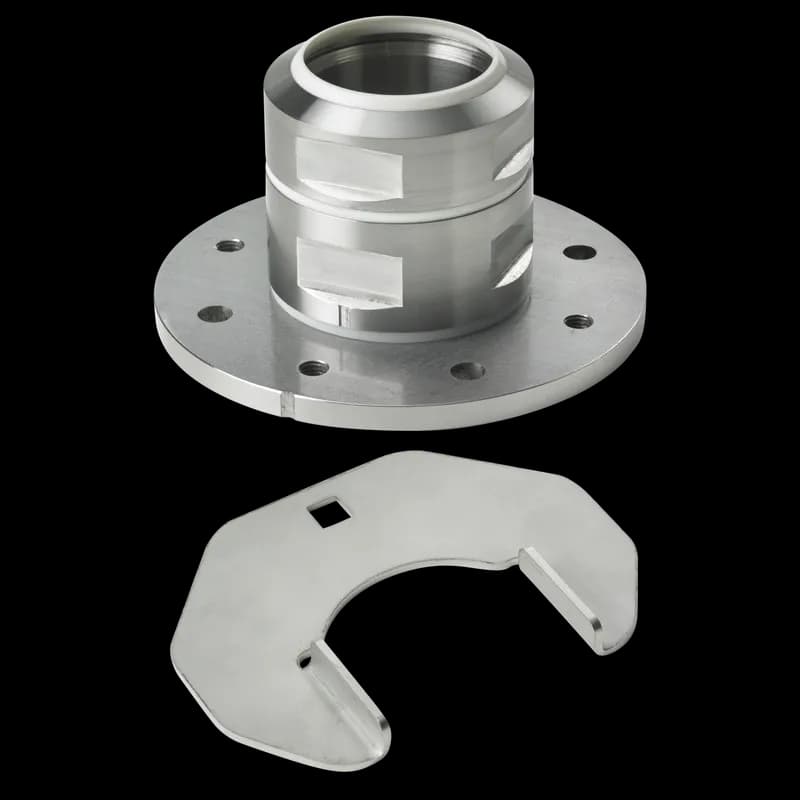

- Not compatible with Syspend Sanitary HMI Swivel Base Bracket
- Gasket and mounting hardware are included
- Assembled Syspend Sanitary HMI Arm System has a max weight load of 90 lb. (40.8 kg)
- US-manufactured, compatible with food/beverage, pharmaceutical, and sanitary industrial applications
Specifications
Application | Hygienic Environments; Corrosive Environments; Controls and Drives |
Color | Unpainted |
Color | Brushed |
Depth | 8.66 |
Depth | 220 |
Depth | 220 mm |
Finish | Polished |
Height | 3.93 |
Height | 100 |
Height | 100 mm |
Material | SS Type 304 |
Material | SS304 |
Material | Stainless Steel 304 |
Material | SS304 Stainless Steel |
Modification Services | No |
Mounting Type | Snap-fit |
Mounting Type | Snap-on cover |
Product Family | Syspend Sanitary |
Protection Rating | IP54 |
Series | Syspend Sanitary HMI |
Series | Syspend Sanitary HMI Base Bracket Cover |
Size | 4x9x9 |
Thickness | 0.45 in |
Thickness | 11.4 mm |
Type | Syspend Sanitary HMI Stainless Steel |
Weight | 3.6 lb |
Width | 220 mm |
Width | 8.66 |
Width | 220 |
Package Dimensions (L x W x H) | 9.6 IN x 9.2 IN x 7.2 IN |
Package Dimensions (L x W x H) | 24.384 cm x 23.368 cm x 18.288 cm |
Package Weight (Imperial) | 3.600 L |
Package Weight (Metric) | 1.633 kg |
How to Install the SBCSS Controller
Complete installation guide for mounting and wiring the SBCSS Controller on a DIN rail.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the controller
Secure the SBCSS controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Connect the power supply
Use terminal connectors to wire the power supply to the designated input terminals on the SBCSS controller. Verify the connections are secure.
- Configure initial settings
Power on the SBCSS controller and use the interface to configure the initial settings as per your application requirements. Refer to the user manual for specific configuration options.
