Contact for Pricing

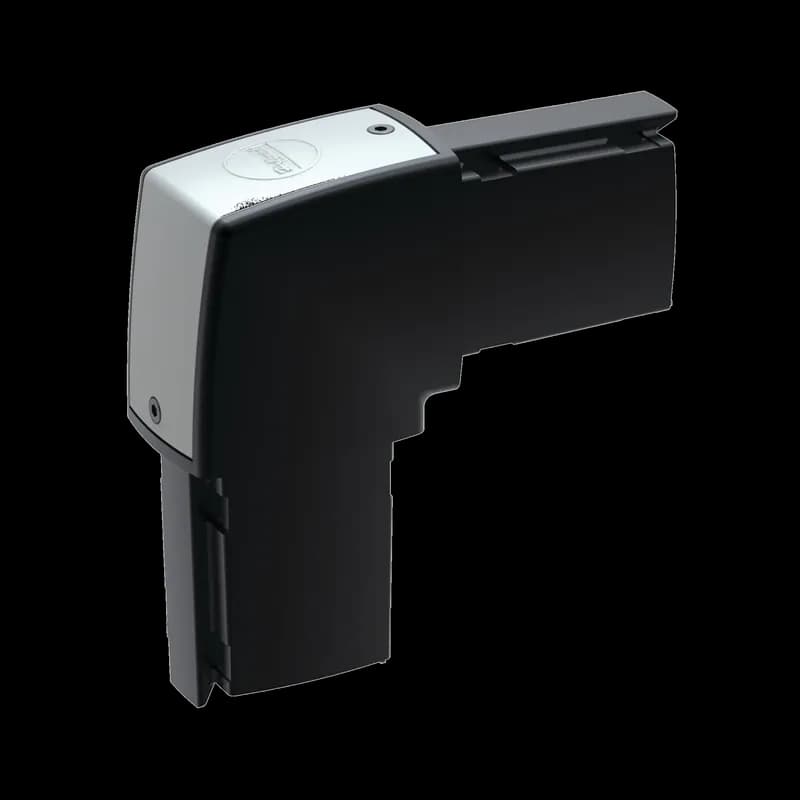

Overview
- Set screws and gasket are included
- White aluminum cable access cap is included
- Assembled Syspend 180 HMI Arm System has a max weight load of 180 lb. (81.6 kg)
- RAL 9005 Black finish
- Includes installation instructions, gaskets, and tube setscrews
Specifications
Application | Controls and Drives |
Color | Jet Black |
Color | Black |
Color Code | RAL 9005 |
Depth | 80 mm |
Depth | 3.15 |
Depth | 80 |
Finish | Powder Coated |
Height | 7.68 |
Height | 195 |
Height | 195 mm |
Material | Aluminum |
Modification Services | Yes |
Product Family | Syspend 180-Max |
Protection Rating | IP65 |
Series | Syspend 180-Max |
Size | 7.68x7.68x3.15 inches |
Type | Syspend 180-Max |
Weight | 1.25 kg |
Weight | 3.1 lb |
Width | 195 mm |
Width | 7.68 |
Width | 195 |
Package Dimensions (L x W x H) | 8.3 IN x 8.1 IN x 3.8 IN |
Package Dimensions (L x W x H) | 21.082 cm x 20.574 cm x 9.652 cm |
Package Weight (Imperial) | 3.100 L |
Package Weight (Metric) | 1.406 kg |
How to Install the SYSPEND 180-MAX Suspension System
This guide provides step-by-step instructions for mounting and wiring the SYSPEND 180-MAX suspension system to ensure proper installation and functionality.
Estimated time: 1h
Tools needed:
Screwdriver, Spirit level, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Lock washers, Seals
- Prepare the mounting surface
Ensure the mounting surface is smooth and flat to avoid load and adjustment issues. Clean the area where the suspension system will be installed.
- Mount the suspension system
Secure the suspension system to the wall or machine using the appropriate mounting screws and lock washers. Use at least four bolting points and tighten screws to a torque of 6 Nm.
- Attach the coupling components
Fit the screws through the horizontal section into the coupling and tighten them with a torque of 6 Nm. Ensure the seal is pressed smoothly to maintain the system's integrity.
- Adjust the vertical and horizontal tubes
Loosen the screws on the vertical and horizontal tubes, adjust them to the desired position, and then tighten the screws to a torque of 10-12 Nm.
- Verify the installation
Use a spirit level to check that the suspension system is aligned properly. Make any necessary adjustments and ensure all screws are tightened.
- Perform electrical connections
Connect the electrical components as per the wiring diagram. Ensure all connections are secure and insulated to prevent short circuits.
- Calibrate the system
Adjust the tilt angle limiter and other settings as required. Follow the manufacturer's specifications for optimal performance.
