nVent PTHS362436X - ProTek Double-Hinge Solid Type 4 4X 12, 36.30x23.62x36.02, Brushed, SS304
nVent

PTHS362436X

UPC: 783510291235

Documents & Media
Installation Instructions

Contact for Pricing

Overview

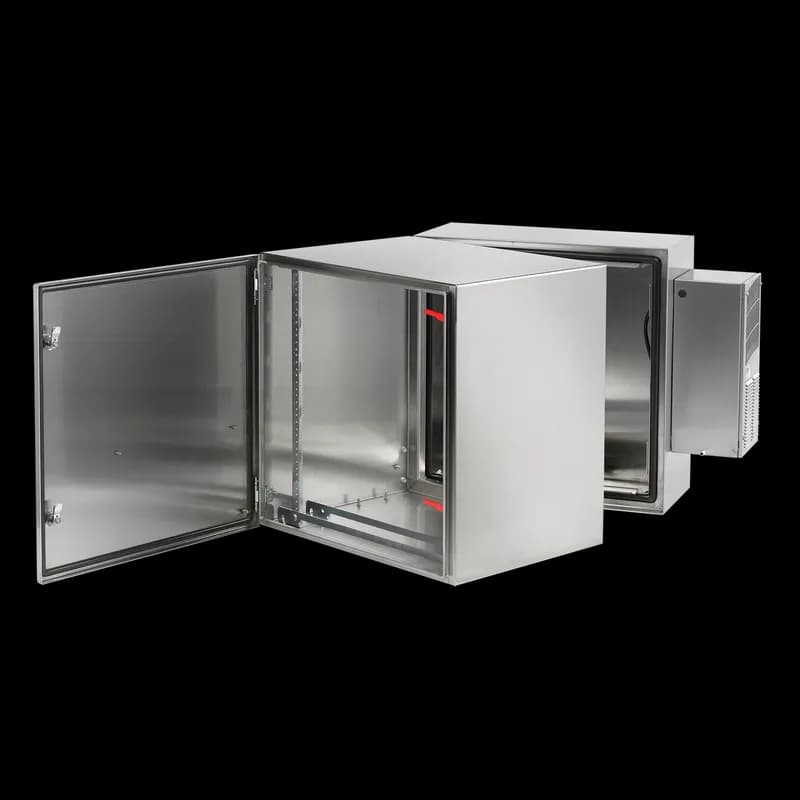

The nVent ProTek Double-Hinge Solid Cabinet (SKU: PTHS362436X) offers robust protection and versatile mounting solutions for critical electronic equipment in demanding industrial environments. Engineered with a durable SS304 stainless steel construction and a brushed finish, this cabinet meets rigorous NEMA Type 4, 4X, and 12 ratings, ensuring superior defense against water, dirt, corrosive agents, and other environmental contaminants. Its double-hinge design provides convenient front and rear access, facilitating easy installation, maintenance, and management of 19-inch rack-mounted devices or panel-mounted equipment. Designed for applications where space is a premium and wall mounting is the primary installation method, the ProTek Double-Hinge cabinet is an excellent off-the-shelf choice. The generous dimensions of 36.30x23.62x36.02 inches offer ample space for a variety of electronic components, control systems, and networking hardware. The SS304 material is chosen for its exceptional corrosion resistance, making it ideal for use in washdown areas, chemical processing plants, food and beverage facilities, and other harsh settings where material integrity is paramount. Key features and benefits of the nVent ProTek Double-Hinge Solid Cabinet include: * **Superior Environmental Protection:** NEMA Type 4, 4X, and 12 ratings guarantee protection against dust, water ingress, and corrosive substances, safeguarding sensitive electronics. * **Durable SS304 Construction:** High-grade stainless steel provides exceptional strength, longevity, and resistance to rust and chemical attack. * **Dual-Hinge Access:** Facilitates easy access to both the front and rear of mounted equipment for streamlined installation and maintenance. * **19-Inch Rack and Panel Mounting:** Optimized for standard 19-inch rack-mount equipment and panel-mounted devices, offering broad compatibility. * **Space-Saving Wall Mount Design:** Ideal for facilities with limited floor space, allowing for efficient utilization of vertical areas. * **Brushed Finish:** Offers a clean, professional aesthetic while contributing to the overall durability and corrosion resistance. Manufactured by nVent, a trusted leader in electrical enclosure solutions, the ProTek series is synonymous with quality and reliability. This specific model, PTHS362436X, is a testament to nVent's commitment to providing high-performance products that meet the evolving needs of industrial automation, data centers, and critical infrastructure. The cabinet's robust construction and thoughtful design ensure the longevity and operational integrity of your valuable electronic assets, minimizing downtime and maximizing productivity. Whether you are deploying control systems, network infrastructure, or specialized electronic equipment, the nVent ProTek Double-Hinge Solid Cabinet provides the secure, protected environment necessary for optimal performance. Its US origin further underscores a commitment to manufacturing excellence and adherence to stringent quality standards.
  • Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
  • Solid door provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the ca
  • On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet

Specifications

Additional Rack Angles
PTRA24T or PTRA24S
Application
Controls and Drives;Corrosive Environments;Datacom and Telecom Equipment;Networking, Storage and Data Center
Application
Corrosive Environments; Datacom and Telecom Equipment; Networking, Storage and Data Center; Controls and Drives
Body Thickness
16 ga
Body Thickness
1.9 mm
Body Thickness
14 ga
Color
Unpainted
Color
Brushed
Depth
915 mm
Depth
36.02
Depth
915
Door Thickness
1.52 mm
Door Thickness
16 ga
Door Thickness
14 ga
Finish
Brushed #3
Height
922 mm
Height
36.3
Height
922
IP Rating
IP66
Material
SS304 Stainless Steel
Material
SS Type 304;Stainless Steel 304
Material
Stainless Steel 304
Modification Services
Yes
Mounting Type
Wall Mount
NEMA Rating
12
NEMA Rating
12 Indoor, dust-resistant
Nema Rating
Type 4/4X/12
Optional Steel Panel
CP2020
Optional Wood Panel
CP2020W
Product Family
ProTek
Protection Rating
NEMA Type 12
Rack Units
19
Series
ProTek Double-Hinge Solid
Size
36.30x23.62x36.02 inches
Type
Data Networking Wall Mounted Cabinets
Type Number
Type 3R
Weight
166 lb
Width
23.62 in
Width
600 mm
Package Dimensions (L x W x H)
42 IN x 28.75 IN x 41.5 IN
Package Dimensions (L x W x H)
106.68 cm x 73.025 cm x 105.41 cm
Package Weight (Imperial)
166.000 L
Package Weight (Metric)
75.298 kg
