Overview

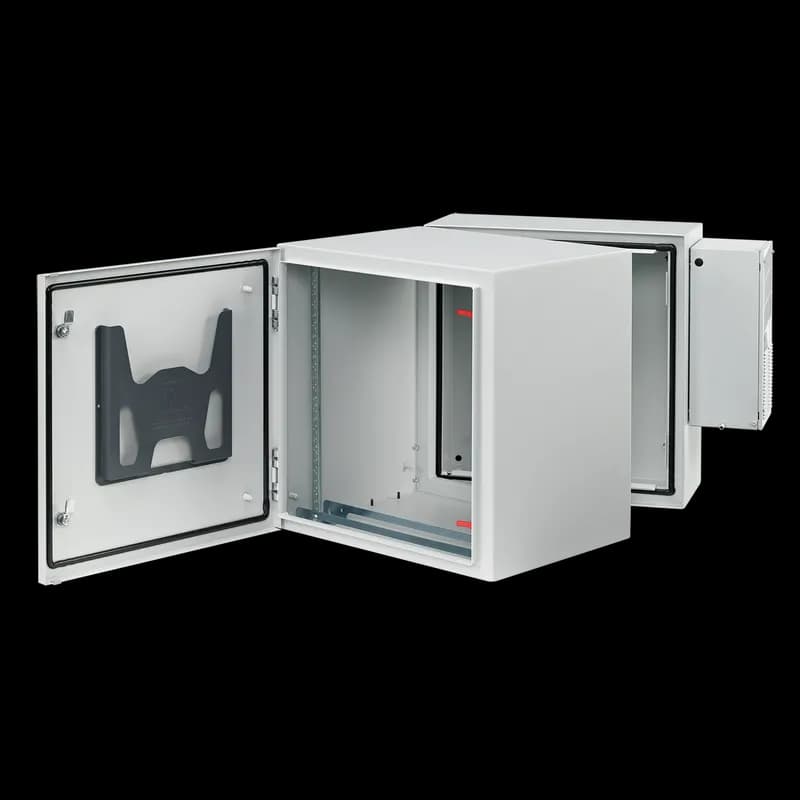

- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the ca
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
Specifications
Additional Rack Angles | PTRA36T or PTRA36S |
Application | Controls and Drives;Datacom and Telecom Equipment;Networking, Storage and Data Center |
Application | Networking, Storage and Data Center; Controls and Drives; Datacom and Telecom Equipment |
Body Thickness | 1.9 mm |
Body Thickness | 14 ga |
Body Thickness | 16 ga |
Color | Light Gray |
Color | Gray |
Color | Grey |
Color Code | RAL 7035 |
Depth | 915 mm |
Depth | 36.02 in |
Depth | 36.02 |
Depth | 915 |
Door Thickness | 14 ga |
Door Thickness | 16 ga |
Door Thickness | 1.52 mm |
Finish | Powder Coating |
Finish | Powder Coated |
Height | 922 mm |
Height | 36.3 in |
Height | 36.3 |
Height | 922 |
IP Rating | IP66 |
Material | Mild Steel;SS Type 304 |
Material | Mild Steel |
Modification Services | Yes |
NEMA Rating | 12 Indoor, dust-resistant |
NEMA Rating | 12 |
Optional Steel Panel | CP3220 |
Optional Wood Panel | CP3220W |
Product Family | ProTek |
Protection Rating | NEMA Type 12 |
Rack Units | 19 |
Type | Data Networking Wall Mounted Cabinets |
Type Number | Type 4 |
Weight | 164 lb |
Width | 526 |
Width | 23.62 in |
Width | 600 mm |
Package Dimensions (L x W x H) | 42 IN x 42 IN x 28.25 IN |
Package Dimensions (L x W x H) | 106.68 cm x 106.68 cm x 71.755 cm |
Package Weight (Imperial) | 164.000 L |
Package Weight (Metric) | 74.390 kg |
