Overview

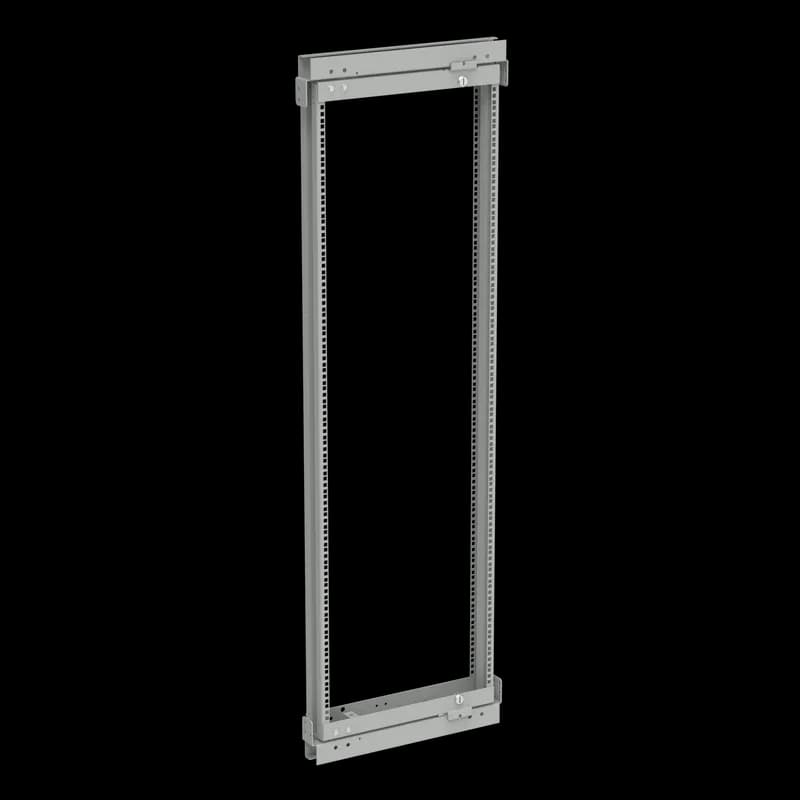

- Swing-out mounting supports mount to inside of frame at any vertical location; flexibility to select any model size equal to or shorter in height (i.e. use of 1400mm rack frame in 2000mm high enclosure)
- Spring-loaded pivot post makes installation easy
- Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
- Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
- Furnished with hinges, two quarter-turn latches and mounting hardware
- Complies with ANSI/EIA RS-310-D rack-mounting standards
- Maximum equipment load is 300 lb. (136 kg)
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
- Swing-Out Rack Frame assemblies are supplied with mounting supports
- Hinges that provide 170-degree rotation are optional
Specifications
Application | Controls and Drives |
Color | Light Gray |
Color Code | RAL 7035 |
Finish | Powder Coated |
Fits Frame Height | 700 or taller |
Fits Frame Width | 600 mm |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Swing-Out with Hinges |
Product Family | ProLine |
Rack Units | 10 |
Size | fits 700+ x 600mm |
Size | 700x600mm |
Thickness | 12 ga |
Thickness | 2.66 mm |
Type | Internal Mounting for ProLine Industrial Enclosures |
Weight | 27.8 lb |
Package Dimensions (L x W x H) | 27.4 IN x 25.5 IN x 4.5 IN |
Package Dimensions (L x W x H) | 69.596 cm x 64.77 cm x 11.43 cm |
Package Weight (Imperial) | 27.800 L |
Package Weight (Metric) | 12.610 kg |
