Contact for Pricing

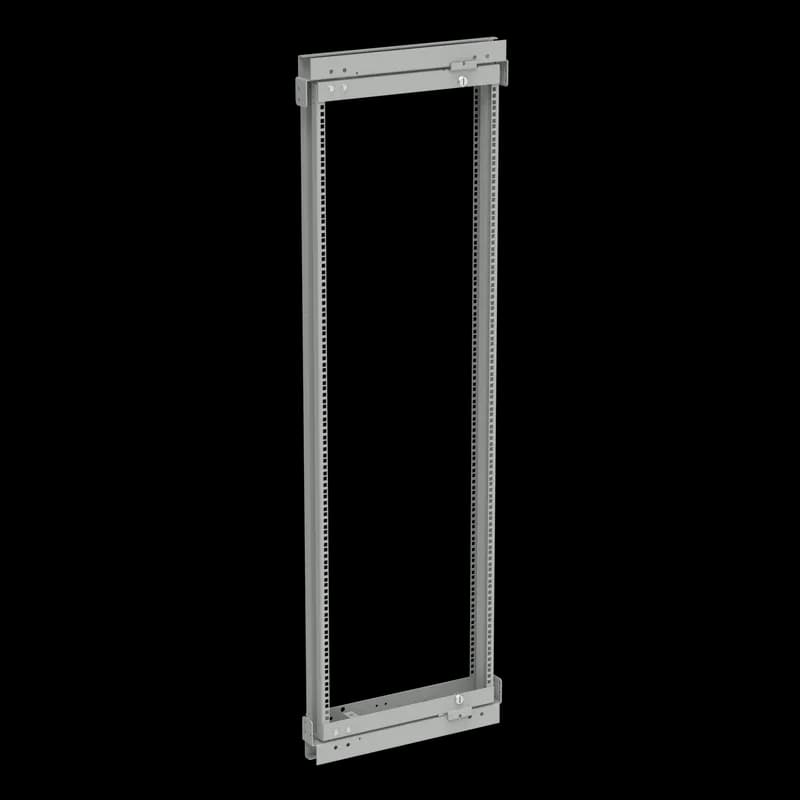

Overview
- Facilitates 120-degree swing-out for improved equipment accessibility
- Supports 19-inch rack-mounted equipment up to 100 lb (45 kg)
- Durable steel construction with RAL 7035 textured light gray finish
- Adjustable mounting depth using grid system straps
- Flexible left or right side pivoting installation
- Complies with ANSI/EIA RS-310-D rack-mounting standards
- Maximum equipment load is 300 lb. (136 kg)
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
- Swing-Out Rack Frame assemblies are supplied with mounting supports
- Hinges that provide 170-degree rotation are optional
Specifications
Application | Controls and Drives |
Color | Light Gray |
Color Code | RAL 7035 |
Finish | Powder Coated |
Fits Frame Height | 2000 or taller |
Fits Frame Width | 700 mm |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Swing-Out with Hinges |
Mounting Type | Hinged Swing-Out |
Product Family | ProLine |
Rack Units | 39 |
Size | fits 2000+ x 700mm |
Size | 2000x700mm |
Size | 2000x700 mm |
Thickness | 2.66 mm |
Thickness | 12 ga |
Type | Internal Mounting for ProLine Industrial Enclosures |
Weight | 44 lb |
Package Dimensions (L x W x H) | 74 IN x 20 IN x 4 IN |
Package Dimensions (L x W x H) | 187.96 cm x 50.8 cm x 10.16 cm |
Package Weight (Imperial) | 44.000 L |
Package Weight (Metric) | 19.958 kg |
