nVent PRA1921THL1 - Proline 19-inch Rack Angle Square, fits 2100mm, Black, Steel
nVent

PRA1921THL1

UPC: 783510264130

Documents & Media
Installation Instructions

Contact for Pricing

Overview

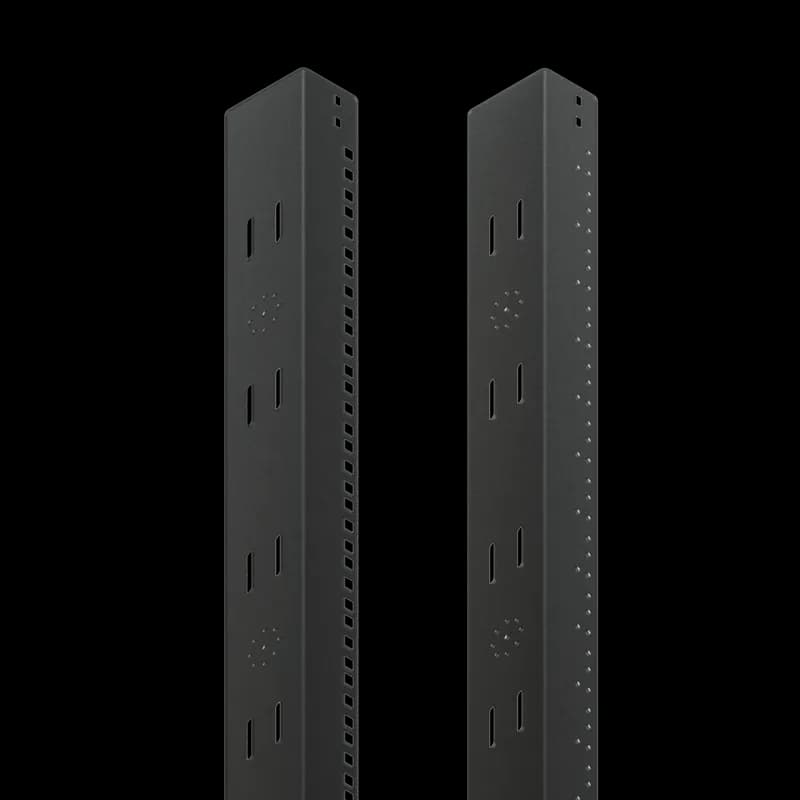

Enhance your data center infrastructure with the nVent Proline 19-inch Rack Angle, SKU PRA1921THL1. Engineered for robust support and precise equipment mounting, this black steel rack angle is designed to seamlessly integrate into your existing cabinet systems. It offers a substantial 2100mm vertical mounting space, accommodating up to 45U of standard EIA-spaced networking and IT equipment. The square hole pattern ensures versatile compatibility with a wide range of rack-mount accessories and devices, providing a secure and reliable foundation for your critical hardware. The Proline series from nVent is renowned for its commitment to quality and performance in demanding industrial and data center environments. This particular rack angle is a testament to that legacy, offering superior structural integrity and ease of installation. When mounted within 600-mm wide frames, it provides standard 19-inch rack spacing, a ubiquitous configuration for networking gear. For installations requiring 23-inch spacing, this rack angle can be effectively utilized in 700-mm wide frames, or in conjunction with frame reducing brackets in wider 700-mm or 800-mm frames, offering flexibility for diverse cabinet designs and colocation applications. Key features and benefits include: * **Robust Construction:** Crafted from durable black steel for long-lasting performance and resistance to wear and tear. * **Ample Mounting Space:** 2100mm height supports up to 45U of equipment, maximizing density within your rack. * **Versatile Spacing:** Facilitates standard 19-inch rack spacing in 600mm frames and 23-inch spacing in 700mm frames, with options for wider cabinets using reducing brackets. * **Square Hole Design:** Ensures broad compatibility with various rack-mount accessories and equipment. * **Strategic Positioning:** The standard rack angle position is 44 mm behind the door opening, optimizing airflow and accessibility. * **Furnished in Pairs:** Supplied in pairs for complete rack support. This nVent Proline Rack Angle is an essential component for any professional seeking to optimize their server room, telecommunications closet, or data center. Its thoughtful design and high-quality materials ensure that your valuable equipment is securely housed, promoting efficient operation and minimizing downtime. The UNSPSC code 43223306 further categorizes this product within the electrical equipment and supplies sector, highlighting its role in essential power and connectivity infrastructure. Manufactured in the USA, you can trust in the quality and reliability of nVent's Proline solutions for your most critical installations.
  • The ProLine 19-in. and 23-in. Rack Angles support any standard EIA spaced networking equipment designed to mount within a cabinet
  • The Rack Angles provide 19-in. rack spacing when mounted in 600-mm wide frames, and 23-in. rack spacing when mounted in 700-mm wide frames
  • They should be used with frame reducing brackets to provide 19-in. or 23-in. spacing in 700-mm or 800-mm wide frames
  • There are sizes available for multi-compartment colocation applications
  • The standard rack angle position is 44 mm behind the door opening
  • Furnished in pairs

Specifications

Application
Networking, Storage and Data Center
Color
Black
Color
Jet Black
Color Code
RAL 9005
Finish
Black;Powder Coating
Finish
Powder Coated
Fits Frame Cabinet Height
2,100 mm
Fits Frame Cabinet Height
1,600 mm
Hole Type
Square
Length
16 IN
Length
80.37 in
Length
2,041 mm
Material
Mild Steel
Material
Mild Steel;Steel
Modification Services
Yes
Product Family
ProLine
Rack Units
45
Thickness
1.9 mm
Thickness
14
Thickness
1.9
Type
Networking Accessories
Use With
ProLine DataCom Packages
Weight
20.5 lb
Package Dimensions (L x W x H)
86 IN x 6 IN x 6 IN
Package Dimensions (L x W x H)
218.44 cm x 15.24 cm x 15.24 cm
Package Weight (Imperial)
20.500 L
Package Weight (Metric)
9.299 kg
