Contact for Pricing
Overview

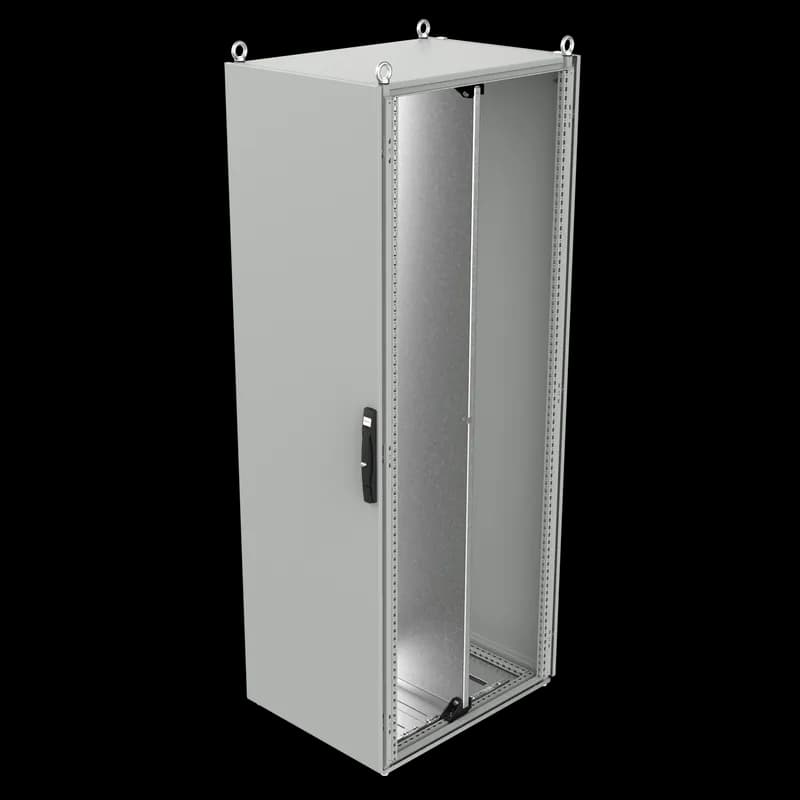

- Comprehensive, ready-to-use industrial enclosure package for simplified procurement and installation.
- Type 12 NEMA rating provides protection against dust, dirt, and dripping water.
- Robust steel construction in a light gray finish for durability and corrosion resistance.
- Generous dimensions (2000x1200x600mm) offer ample space for various industrial equipment.
- Includes frame, solid doors, handle with key lock, solid top, rear cover, full subpanel, gland plate, and lifting eyes.
- Galvanized mounting plates
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
Specifications
Application | Controls and Drives; Power Distribution |
Color | Light Gray |
Color Code | RAL 7035 |
Depth | 23.62 |
Depth | 600 |
Finish | Powder Coated |
Height | 78.74 |
Height | 2,000 |
Material | Mild Steel |
Modification Services | Yes |
NEMA Rating | 12 Indoor, dust-resistant |
Product Family | ProLine |
Protection Rating | NEMA Type 12 |
Size | 2000x1200x600mm |
Type | Overlapping Double Doors |
Weight | 466 lb |
Width | 47.24 |
Width | 1,200 |
Package Dimensions (L x W x H) | 54 IN x 31 IN x 84 IN |
Package Dimensions (L x W x H) | 137.16 cm x 78.74 cm x 213.36 cm |
Package Weight (Imperial) | 466.000 L |
Package Weight (Metric) | 211.378 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the PF1885 Enclosure
This guide provides step-by-step instructions for safely installing the PF1885 enclosure, ensuring proper handling and setup.
Estimated time: 1h
Tools needed:
Forklift, Screwdriver, Multimeter
Supplies needed:
3000 lb-rated chain or strap, Mounting screws
- Prepare the installation area
Clear the installation route of all obstructions and ensure that workers are positioned at a safe distance from the enclosure's height.
- Secure the enclosure for transport
Using a forklift, insert a 3000 lb-rated chain or strap through the eye bolts on top of the enclosure and securely fasten it to the forklift mast to prevent tipping during transport.
- Lift and position the enclosure
Carefully lift the enclosure with the forklift, ensuring it is clear of the ground. Position it at the designated installation site, maintaining caution to avoid contact with fixed objects.
- Mount the enclosure
Secure the enclosure to the mounting surface using the provided mounting screws, ensuring it is level and firmly attached.
- Verify installation
Check that the enclosure is stable and securely mounted. Use a multimeter to verify any electrical connections if applicable.
Frequently Asked Questions about nVent
What industries and applications are nVent products used for?
nVent products are engineered for critical infrastructure and industrial applications across multiple demanding sectors. Key markets include Construction, Data Centers, Defense, Healthcare, Mining, Oil & Gas Refineries, Power Plants, Rail/Transit, Renewable Energy, Security, Ship Building, Steel Mills, Telecom, and Utilities. Their solutions are designed to withstand extreme environmental conditions, with temperature ranges from -55°C to 105°C and specialized features like UV resistance, oil resistance, and flame resistance.
What environmental ratings do nVent products have?
nVent enclosures feature comprehensive environmental ratings, including UL 508A, CSA, and NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications. They are rated IEC 60529 IP66, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments. These products operate effectively in temperatures ranging from -40°F to 266°F, with enhanced UV inhibitors for outdoor weathering and oil-resistant gaskets for superior sealing.
What accessories are available for nVent products?
nVent offers a comprehensive range of accessories across multiple product lines, including EMC accessories like bonding cable clamps and strain reliefs, inline accessories such as lock inserts and mounting brackets, CONCEPT accessories including panel conversion kits and rack-mount angles, and seismic accessories for specialized mounting requirements. Key accessory categories include grounding kits, DIN rail mounting solutions, panel supports, handles, and various mounting hardware compatible with different enclosure types.
What certifications and standards do nVent products comply with?
nVent products meet critical international certifications including UL (United States), CSA (Canada), CE (European Community), and EAC (Russia). Our products are designed to comply with rigorous industrial standards such as NEMA enclosure ratings, IEC 60529 IP ratings, and international safety standards across multiple industrial markets including oil & gas, power, manufacturing, and infrastructure.
What is nVent's warranty policy?
nVent offers a standard 18-month warranty from invoicing date for most automation products, covering defects in workmanship and materials. The warranty requires proper transportation, handling, storage, and installation within specified environmental conditions. Warranty coverage includes repair or replacement at nVent's discretion, with certain conditions such as authorized service repairs and operation within designed capacity limits.
What technical support does nVent offer?
nVent offers comprehensive technical support through multiple global contact centers across North America, South America, Europe, Middle East, India, and Asia. Customers can reach technical experts by phone at regional numbers, with the North American headquarters in Minneapolis, MN providing primary support at +1.763.421.2240. Additionally, nVent provides online support resources through their website, including CAD drawing downloads and an 'Ask The Expert' feature to assist with product technical inquiries.
