nVent PPF228 - Full Subpanel, 2200x800, White, Steel
nVent

PPF228

UPC: 783510991708

Documents & Media
Installation Instructions

Contact for Pricing

Overview

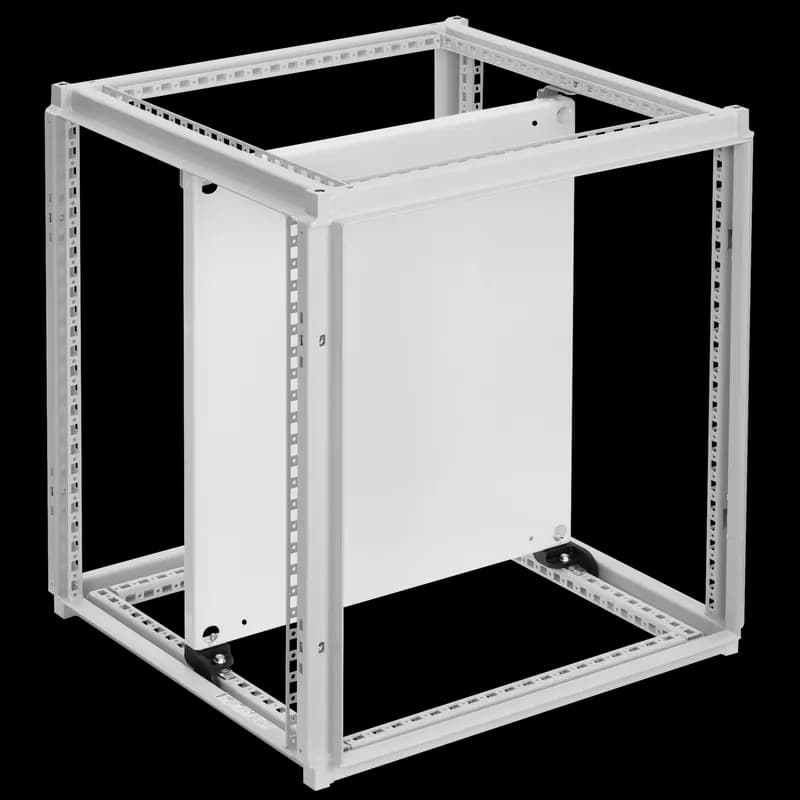

The nVent ProLine Full Subpanel, SKU PPF228, is engineered to enhance the functionality and accessibility of your industrial enclosures. Designed with robust steel construction and finished in a clean white, this subpanel offers substantial internal mounting space, measuring an impressive 2200mm in height and 800mm in width. This generous dimension ensures ample room for the layout and installation of a wide array of electrical and electronic components, control systems, and power distribution equipment. Installation of the ProLine Full Subpanel is optimized for efficiency and ease. It features a unique slide-in design that utilizes nylon glide blocks. These blocks are strategically placed to support the entire weight of the subpanel, eliminating the need for complex mounting hardware and reducing installation time significantly. This method not only simplifies the process but also ensures a secure and stable fit within the enclosure frame, contributing to the overall integrity of your system. The ProLine series from nVent is renowned for its commitment to providing maximum panel depth and size, catering to the demanding requirements of modern industrial automation and control applications. This full subpanel is an integral part of creating organized, maintainable, and safe electrical installations. Its substantial size makes it ideal for large-scale control cabinets, power distribution boards, and complex automation systems found in sectors such as manufacturing, utilities, and infrastructure. Key benefits of the nVent ProLine Full Subpanel include: * **Maximized Internal Space:** The 2200x800mm dimensions provide extensive surface area for component mounting. * **Simplified Installation:** The innovative slide-in system with nylon glide blocks ensures quick and secure mounting. * **Durable Construction:** Fabricated from high-quality steel for long-lasting performance in industrial environments. * **Enhanced Organization:** Facilitates neat and systematic arrangement of electrical components, improving accessibility for maintenance and upgrades. * **Reliability:** Backed by the trusted nVent brand, known for its expertise in enclosure solutions. When selecting subpanels for critical industrial applications, factors such as load-bearing capacity, ease of access for maintenance, and compatibility with enclosure systems are paramount. The nVent ProLine Full Subpanel addresses these needs effectively, offering a reliable and user-friendly solution. Its white finish not only provides a clean aesthetic but can also aid in internal visibility. Whether you are designing a new control system or upgrading an existing one, the PPF228 subpanel from nVent ProLine offers a superior foundation for your electrical infrastructure, ensuring efficiency, safety, and longevity.
  • Robust steel construction for durability in industrial environments.
  • Generous 2200x800mm dimensions provide ample mounting space.
  • Innovative slide-in installation with nylon glide blocks for ease and speed.
  • Designed to support the full weight of the subpanel securely.
  • Part of the nVent ProLine series, known for maximizing panel depth and size.
  • Subpanels are 12 gauge (2.5 mm); Double-bay subpanels are 11 gauge (3.0 mm) for all frames 1400mm in height or greater
  • Subpanels are available standard in either conductive or white painted finish
  • Additional Mounting Hardware (PMKPF) for securing panel to frame in the center of the subpanel is sold separately

Specifications

Application
Power Distribution; Controls and Drives
Color
White
Finish
Powder Coated
Material
Steel
Material
Mild Steel
Modification Services
Yes
Mounting Type
Slide-in with nylon glide blocks
Product Family
ProLine
Series
ProLine
Series
nVent ProLine
Size
86.61 x 31.5 in
Size
2200x800 mm
Thickness
12 ga
Thickness
2.66 mm
Type
Internal Mounting for ProLine Industrial Enclosures
Weight
89 lb
Package Dimensions (L x W x H)
86 IN x 32.5 IN x 3 IN
Package Dimensions (L x W x H)
218.44 cm x 82.55 cm x 7.62 cm
Package Weight (Imperial)
89.000 L
Package Weight (Metric)
40.370 kg
