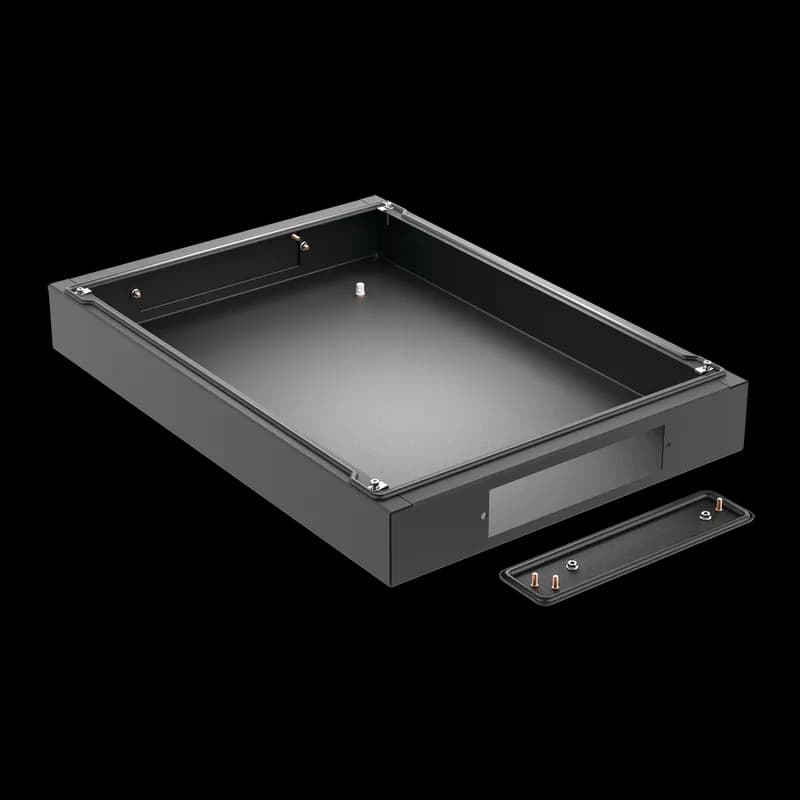

nVent PPB2166 - ProLine 200-mm Plinth Base, fits 1600x600mm, Black, Steel
nVent

PPB2166

UPC: 783510235390

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent ProLine 200-mm Plinth Base (SKU: PPB2166) is a robust, cast-aluminum-supported steel base designed to elevate and protect industrial enclosures while providing secure cable entry from below. Engineered for Type 12-rated applications, this plinth base is an essential component for maintaining environmental integrity and operational safety in demanding industrial environments. The ProLine series from nVent is trusted by engineers and facility managers across manufacturing, automation, and process control industries for its durability, modularity, and compliance with stringent safety standards. This 200-mm high plinth base is specifically sized to fit enclosures measuring 1600x600mm, offering a precise fit that minimizes installation time and ensures structural stability. The base consists of eight corner supports—precision-cast from high-strength aluminum—connected by four removable access panels. These panels are secured with stainless steel screws, allowing for easy access during maintenance or reconfiguration without compromising protection. All necessary mounting hardware is included, streamlining the installation process and reducing total cost of ownership. Designed for environments where dust, dirt, and moisture resistance are critical, the ProLine Plinth Base supports Type 12 protection when paired with a compatible gland plate system. This makes it ideal for use in food and beverage processing, pharmaceutical manufacturing, automotive assembly, and wastewater treatment facilities. The black powder-coated steel construction resists corrosion and blends seamlessly with industrial aesthetics while meeting NEMA and IP enclosure standards. Professionals choose the nVent ProLine series for its modular design, which allows for flexible configuration and future expansion. Whether integrating with existing control panels, automation systems, or electrical enclosures, this plinth base provides a stable foundation that enhances cable management and reduces clutter. The inclusion of corner supports ensures uniform load distribution, protecting sensitive equipment from vibration and mechanical stress. nVent, a global leader in thermal management and electrical protection solutions, brings decades of engineering expertise to the ProLine series. With a reputation for innovation and reliability, nVent products are specified in mission-critical applications worldwide. The ProLine 200-mm Plinth Base (PPB2166) exemplifies this commitment, offering a durable, code-compliant solution that simplifies installation and maximizes enclosure performance. For facilities requiring Type 12-rated cable entry solutions with long-term durability and ease of access, the nVent ProLine Plinth Base is the professional’s choice.
  • Consists of eight corner supports connected to four access panels
  • Order a gland plate system to provide Type 12 protection
  • Includes all mounting hardware
  • Supports Type 12 protection when used with a gland plate system
  • Black powder-coated steel construction resists corrosion and wear

Specifications

Application
Controls and Drives; Power Distribution
Color
Jet Black
Color
Black
Color Code
RAL 9005
Finish
Powder Coated
Fits Frame
1600 x 600 mm
Ip Rating
IP12
Material
Steel
Material
Mild Steel
Material
Steel with cast-aluminum supports
Modification Services
Yes
Mounting Type
Corner supports with removable access panels
Nema Rating
Type 12
Product Family
ProLine
Series
nVent ProLine
Size
fits 1600x600mm
Size
200mm | fits 1600x600mm
Size
200 mm high, fits 1600x600mm enclosures
Thickness
1.52 mm
Thickness
16 ga
Type
External Mounting for ProLine Industrial Enclosures
Weight
55 lb
Package Dimensions (L x W x H)
65 IN x 9 IN x 4 IN
Package Dimensions (L x W x H)
165.1 cm x 22.86 cm x 10.16 cm
Package Weight (Imperial)
55.000 L
Package Weight (Metric)
24.948 kg
