Contact for Pricing

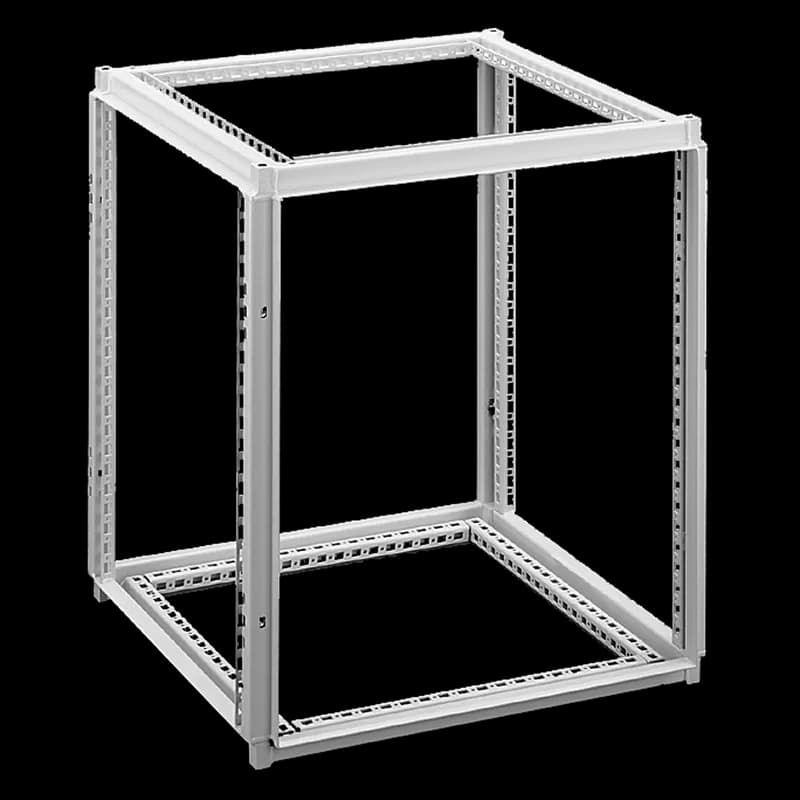

Overview
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
- Sealed mounting for all external accessories
Specifications
Application | Power Distribution; Controls and Drives |
Color | Light Gray |
Color | RAL 7035 Light Gray |
Color Code | RAL 7035 |
Finish | Powder Coated |
IP Rating | IP55 |
Material | Mild Steel |
Material | Mild Steel (16-gauge, 1.5 mm) |
Material | Steel |
Max Rack Mounting Space | 23U |
Max Subpanel Size | 1085 x 530 mm |
Max Subpanel Size | 42.72 x 20.87 in |
Modification Services | Yes |
Mounting Type | Modular Enclosure Joining, Subpanel/Rack Mounting, Grid/Rail Systems |
Mounting Type | Modular Frame |
Nominal Frame Size | 1200 x 600 x 500 mm |
Product Family | ProLine |
Series | ProLine |
Series | nVent ProLine Frame |
Size | 1200x600x500 mm |
Size | 1200mm (H) x 600mm (W) x 500mm (D) |
Thickness | 2.66 mm |
Thickness | 12 ga |
Type | Internal Mounting for ProLine Industrial Enclosures |
Type Number | Type 12 |
Weight | 71.6 lb |
Package Dimensions (L x W x H) | 30.5 IN x 26 IN x 48.2 IN |
Package Dimensions (L x W x H) | 77.47 cm x 66.04 cm x 122.428 cm |
Package Weight (Imperial) | 71.600 L |
Package Weight (Metric) | 32.478 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the PF1885 Enclosure
This guide provides step-by-step instructions for safely installing the PF1885 enclosure, ensuring proper handling and setup.
Estimated time: 1h
Tools needed:
Forklift, Screwdriver, Multimeter
Supplies needed:
3000 lb-rated chain or strap, Mounting screws
- Prepare the installation area
Clear the installation route of all obstructions and ensure that workers are positioned at a safe distance from the enclosure's height.
- Secure the enclosure for transport
Using a forklift, insert a 3000 lb-rated chain or strap through the eye bolts on top of the enclosure and securely fasten it to the forklift mast to prevent tipping during transport.
- Lift and position the enclosure
Carefully lift the enclosure with the forklift, ensuring it is clear of the ground. Position it at the designated installation site, maintaining caution to avoid contact with fixed objects.
- Mount the enclosure
Secure the enclosure to the mounting surface using the provided mounting screws, ensuring it is level and firmly attached.
- Verify installation
Check that the enclosure is stable and securely mounted. Use a multimeter to verify any electrical connections if applicable.
