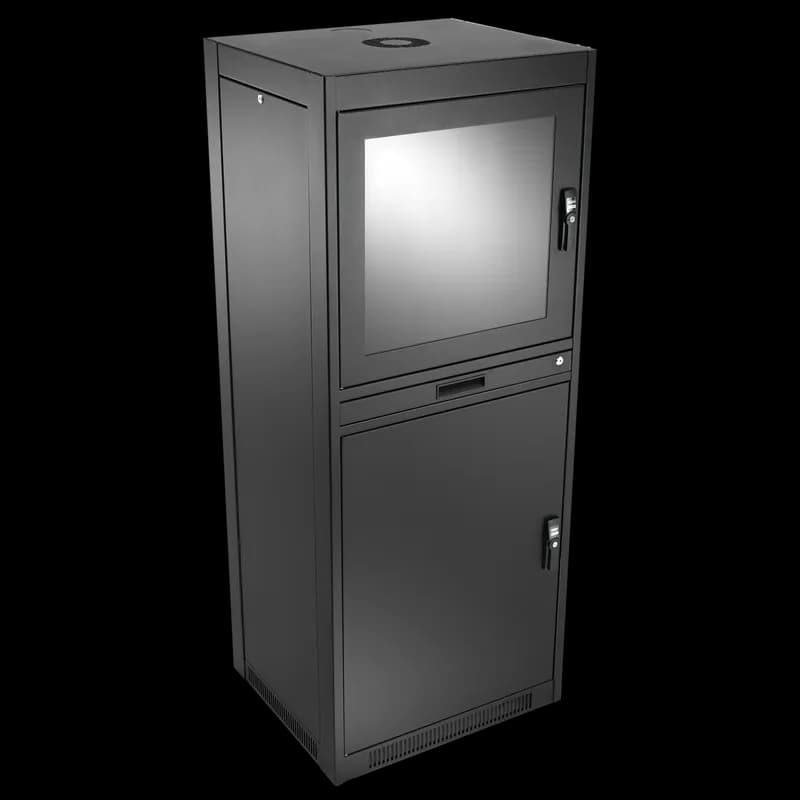

nVent PDCP2078BFP - ProLine V/D Server Cabinets Type 1, 2000x700x800mm, Black, Steel
nVent

PDCP2078BFP

UPC: 783510153342


Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent ProLine V/D Server Cabinets, specifically the PDCP2078BFP model, are engineered for robust protection of critical voice and data network equipment in demanding industrial environments. Designed with a substantial footprint of 2000mm (height) x 700mm (width) x 800mm (depth), these cabinets provide ample space for servers, networking gear, and associated infrastructure. Constructed from high-quality steel and finished in a professional black, they offer both durability and a discreet aesthetic suitable for factory floors, warehouses, and other remote or harsh locations. These Type 1 rated enclosures are crucial for safeguarding sensitive electronics from environmental contaminants. Ambient air, often laden with dust, moisture, and other particulates in industrial settings, can significantly degrade the performance and lifespan of network components. The ProLine V/D cabinets are designed to mitigate these risks, ensuring operational continuity and minimizing downtime. While this specific SKU does not explicitly detail integrated fan packages, the ProLine series is renowned for its adaptability and compatibility with various environmental control solutions, including fan options for enhanced thermal management, which is paramount for high-density equipment. Key features and benefits of the nVent ProLine V/D Server Cabinets include: * **Robust Construction:** Made from durable steel for superior physical protection against impacts and environmental stresses. * **Generous Dimensions:** 2000x700x800mm provides extensive space for scalable IT infrastructure. * **Type 1 NEMA Rating:** Offers protection against falling dirt and general indoor use, suitable for many industrial applications. * **Versatile Application:** Ideal for factory floors, warehouses, data centers, telecommunications rooms, and any location requiring secure and protected equipment housing. * **Enhanced Air Filtration:** Designed to work with filtration systems to protect sensitive electronics from dust and debris, crucial for maintaining optimal operating temperatures and preventing premature failure. * **Professional Aesthetics:** The black steel finish integrates seamlessly into industrial and commercial settings. When selecting server cabinets for industrial applications, factors such as environmental conditions, equipment density, cooling requirements, and accessibility are critical. nVent, a trusted leader in enclosures and thermal management solutions, delivers products that meet these stringent demands. The ProLine V/D series exemplifies this commitment, offering a reliable foundation for your network infrastructure. Investing in a high-quality server cabinet like the PDCP2078BFP from nVent is a proactive measure to ensure the longevity and performance of your valuable voice and data equipment, ultimately contributing to operational efficiency and business continuity.
  • Gasketed covers and air intake filters keep contaminants away
  • Removable filters can be cleaned to maintain optimal performance
  • Fan and filter package provides up to 600 CFM of filtered air to cool equipment
  • Three-point locking handles on all doors provide easy but controlled access; two keys included
  • Rack angles are infinitely adjustable from front to rear for positioning flexibility
  • Mobile base provides easy placement of cabinet
  • Mobile base includes casters, levelers and gland plate
  • Levelers and anti-tip bracket secure cabinet to the floor
  • Front window door made of 16 or 14 gauge steel with safety glass window
  • Solid 16 or 14 gauge steel back door

Specifications

Application
Networking, Storage and Data Center
Cabinet Type
Voice/Data
Color
Black
Color
Jet Black
Color Code
RAL 9005
Depth
31.46
Depth
799
Depth
31.46 in
Depth
799 mm
Finish
Powder Coating;Steel/Black
Finish
Powder Coated
Height
2,203 mm
Height
86.74
Height
2,203
Height
86.74 in
Hole Type
Tapped
Material
Mild Steel;Steel
Material
Mild Steel
Material
Steel
Modification Services
Yes
NEMA Rating
1
NEMA Rating
Type 1
NEMA Rating
1 Indoor, electrical protection
Product Family
ProLine
Protection Rating
NEMA Type 1
Rack Angle
PRA1920TPL1
Rack Units
42
Series
ProLine V/D
Size
2000x700x800mm
Thickness
1.52 mm
Thickness
16
Thickness
1.52
Type
Data Networking Freestanding Cabinets
Weight
436 lb
Width
27.87 in
Width
708
Width
27.87
Width
708 mm
Package Dimensions (L x W x H)
33 IN x 27 IN x 82 IN
Package Dimensions (L x W x H)
83.82 cm x 68.58 cm x 208.28 cm
Package Weight (Imperial)
436.000 L
Package Weight (Metric)
197.770 kg
Ethernet SHDSL Extender

DDW-120

Ethernet SHDSL Extender
Fiber cable ODC to SC duplex - 670mm

Fiber cable ODC SC Duplex 670mm

Fiber cable ODC to SC duplex - 670mm
Power supply for DIN-rail

PS-60

Power supply for DIN-rail
DIN Rail ? DIN 35

ARH 1656

DIN Rail ? DIN 35
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .

ST4803PDGM

Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included

3085

Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
Cable Manager, fits 19-inch open rack, Black, Steel

ECK19H

Cable Manager, fits 19-inch open rack, Black, Steel
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray

PDCP2078

DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
6U PERF PANEL

PPFS19010BK

6U PERF PANEL
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

STP6X12MIG

This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL

F62ERLNSNSNM002

OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.

CESUM3-C15

Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
